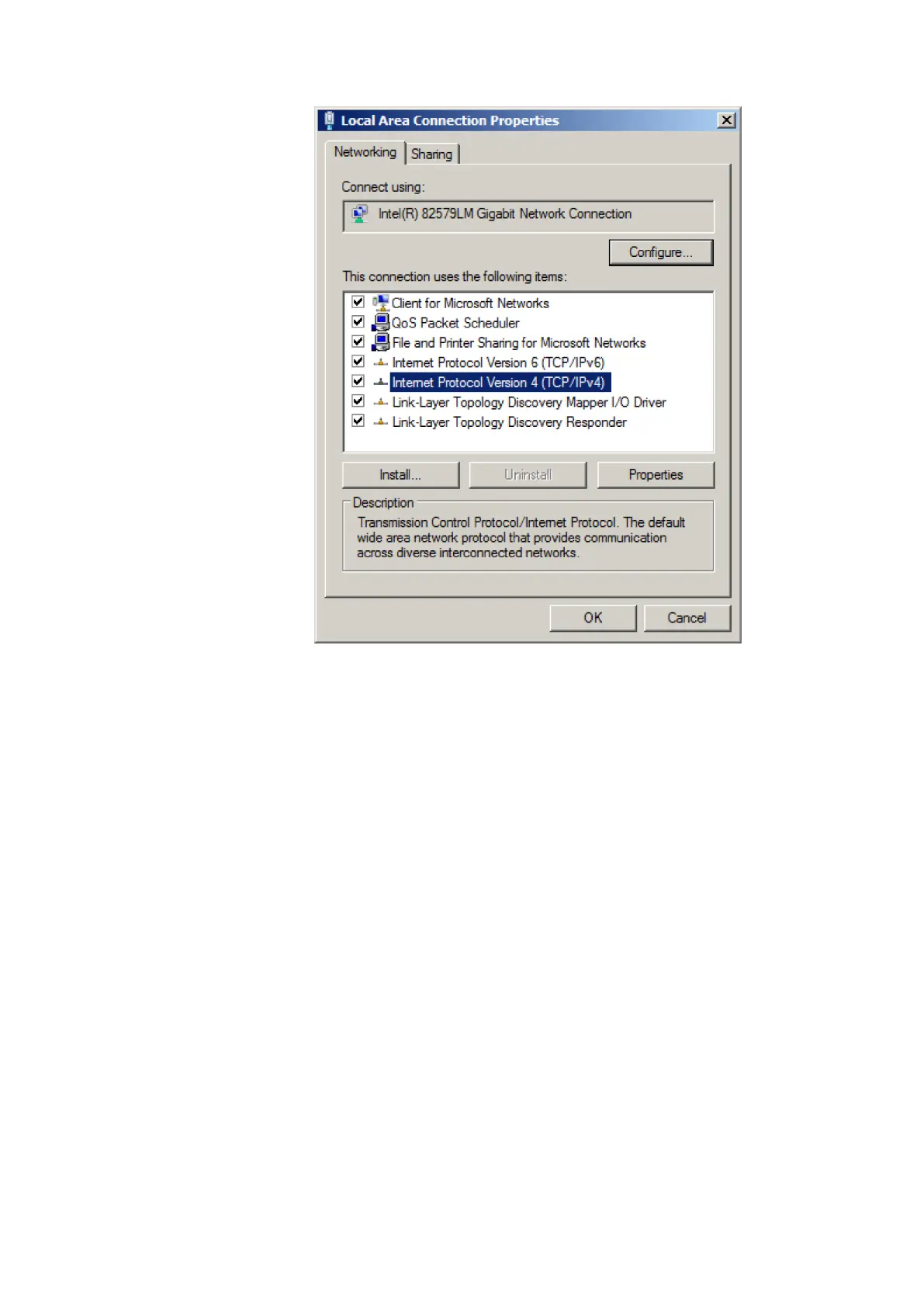

4. Double-click Internet Protocol Version 4 (TCP/IPv4).

Getting Started

Engineering software Automation Builder > Set-up communication parameters in windows

2021/06/29 3ADR010635, 2, en_US 19
