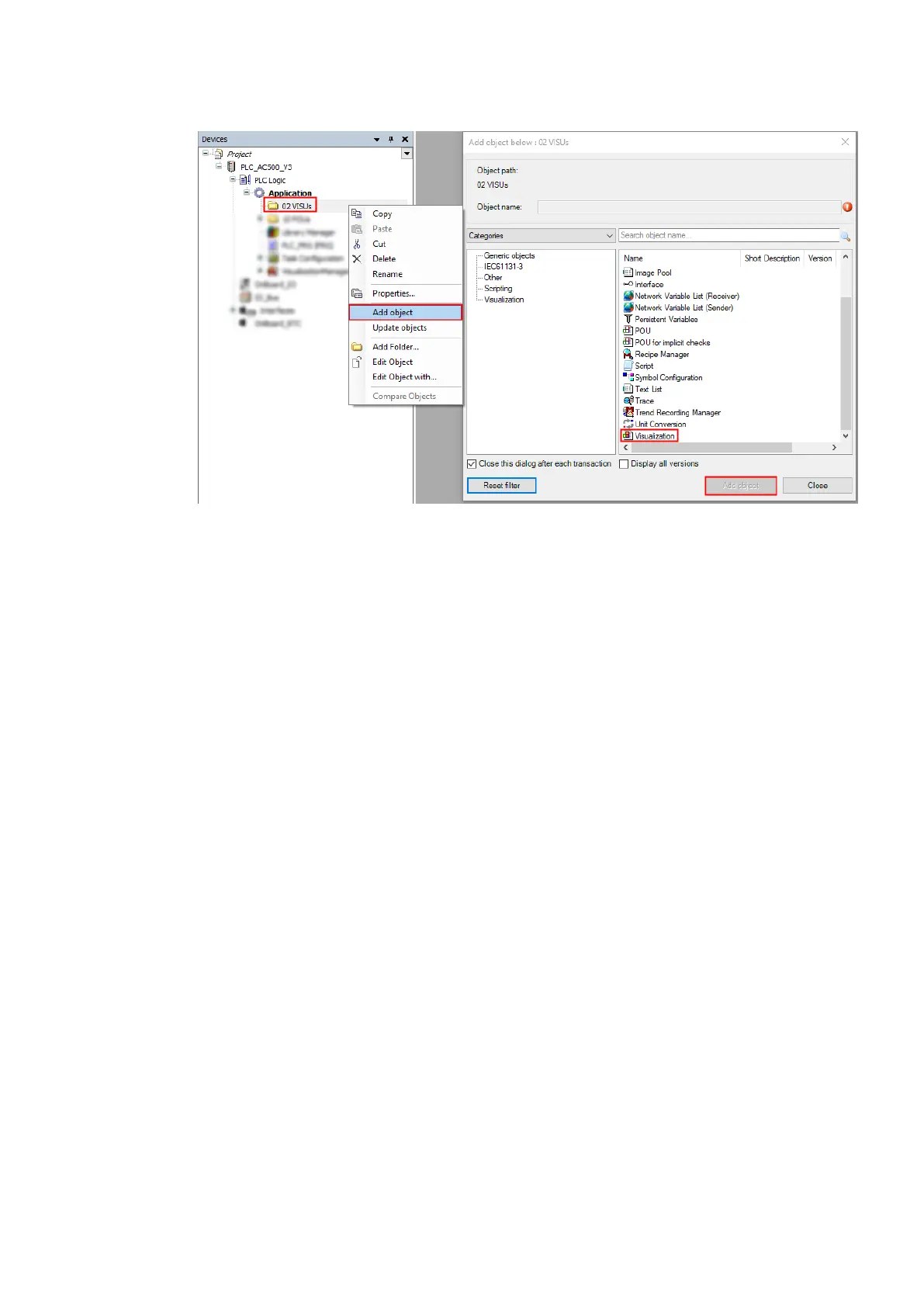

5.4.10.2 Add a screen for "_01_Assignment_NOT" POU

1. Right-click “02 VISUs”.

2. Select “Add object”.

3. Select object “Visualization”.

4. Select [OK].

Getting Started

Example project > Create visualization

2021/06/29 3ADR010635, 2, en_US 51
