Typical Timing Diagrams

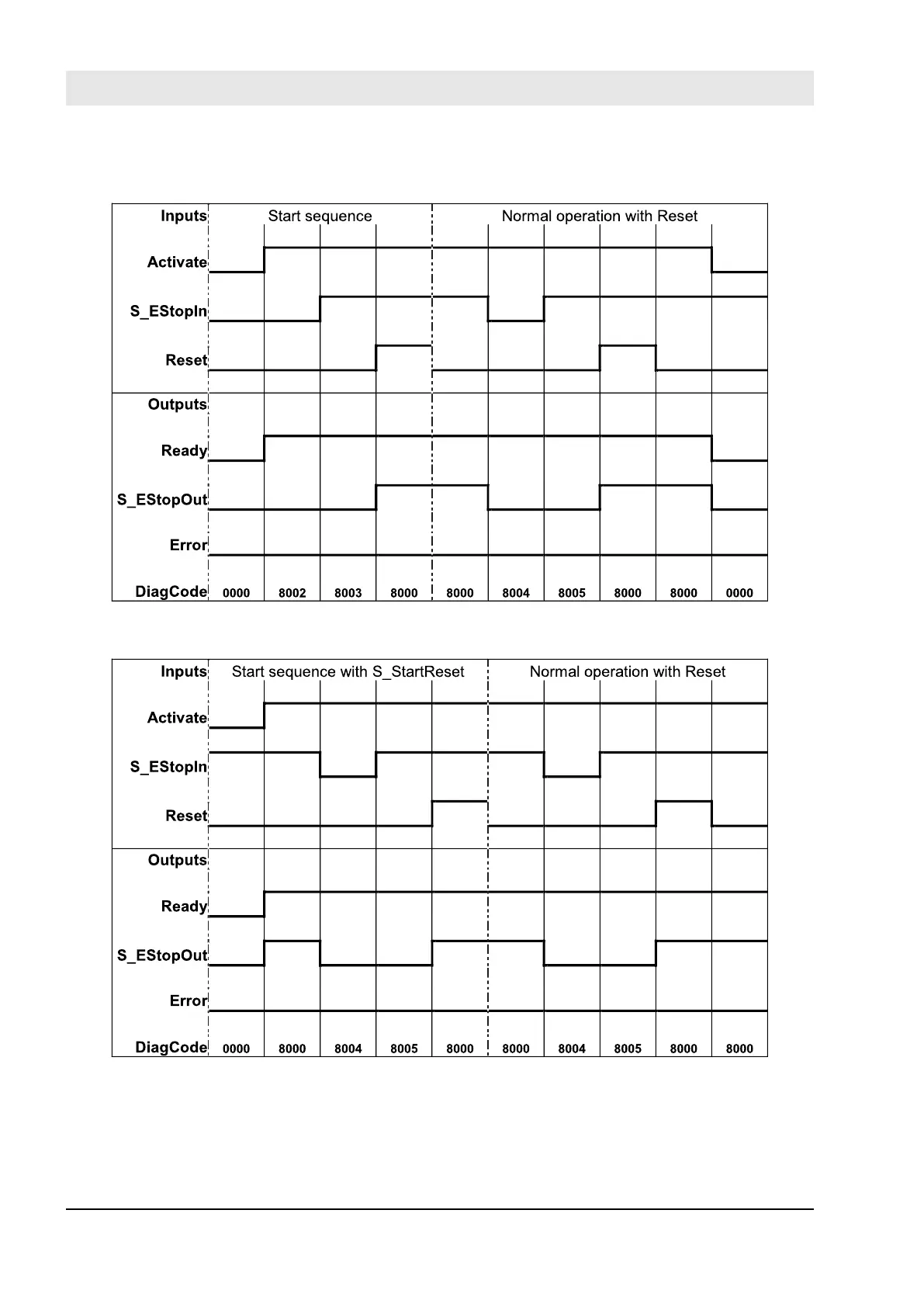

Fig. 103: Timing diagram for SF_EmergencyStop: S_StartReset = FALSE; S_AutoReset = FALSE; Start,
reset, normal operation, safety demand, restart
Fig. 104: Timing diagram for SF_EmergencyStop: S_StartReset = TRUE, S_AutoReset = FALSE; Start,
normal operation, safety demand, restart
Configuration and programming
AC500-S Libraries > SafetyBlocks_PLCopen_AC500_v22.lib
30.03.2017AC500-S290
