Typical Timing Diagrams

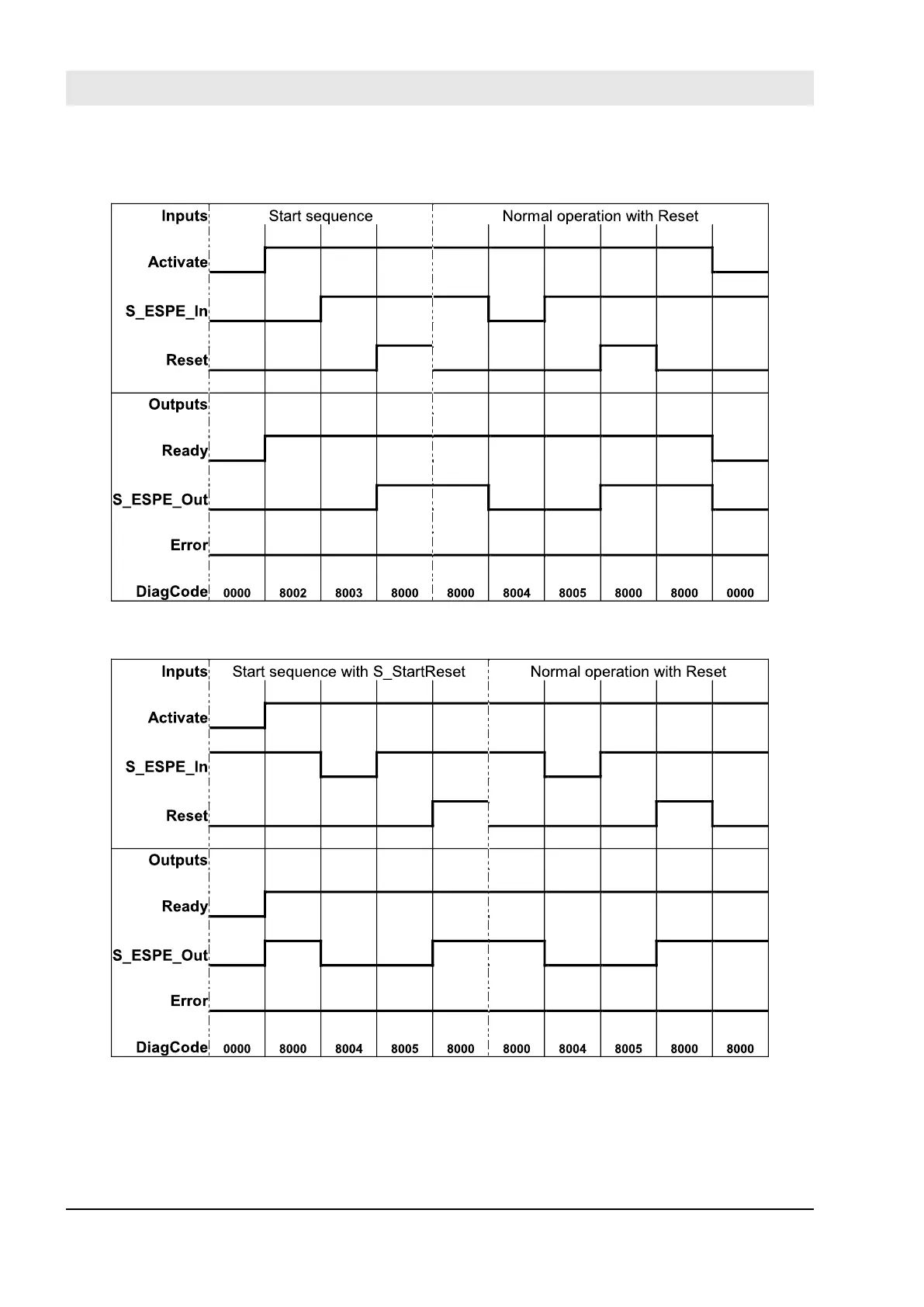

Fig. 106: Timing diagram for SF_ESPE: S_StartReset = FALSE; S_AutoReset = FALSE; Start, reset, normal
operation, safety demand, restart
Fig. 107: Timing diagram for SF_ESPE: S_StartReset = TRUE, S_AutoReset = FALSE; Start, normal opera-
tion, safety demand, restart
Configuration and programming
AC500-S Libraries > SafetyBlocks_PLCopen_AC500_v22.lib
