20 Preparing for installation
ACH550-01 User's Manual

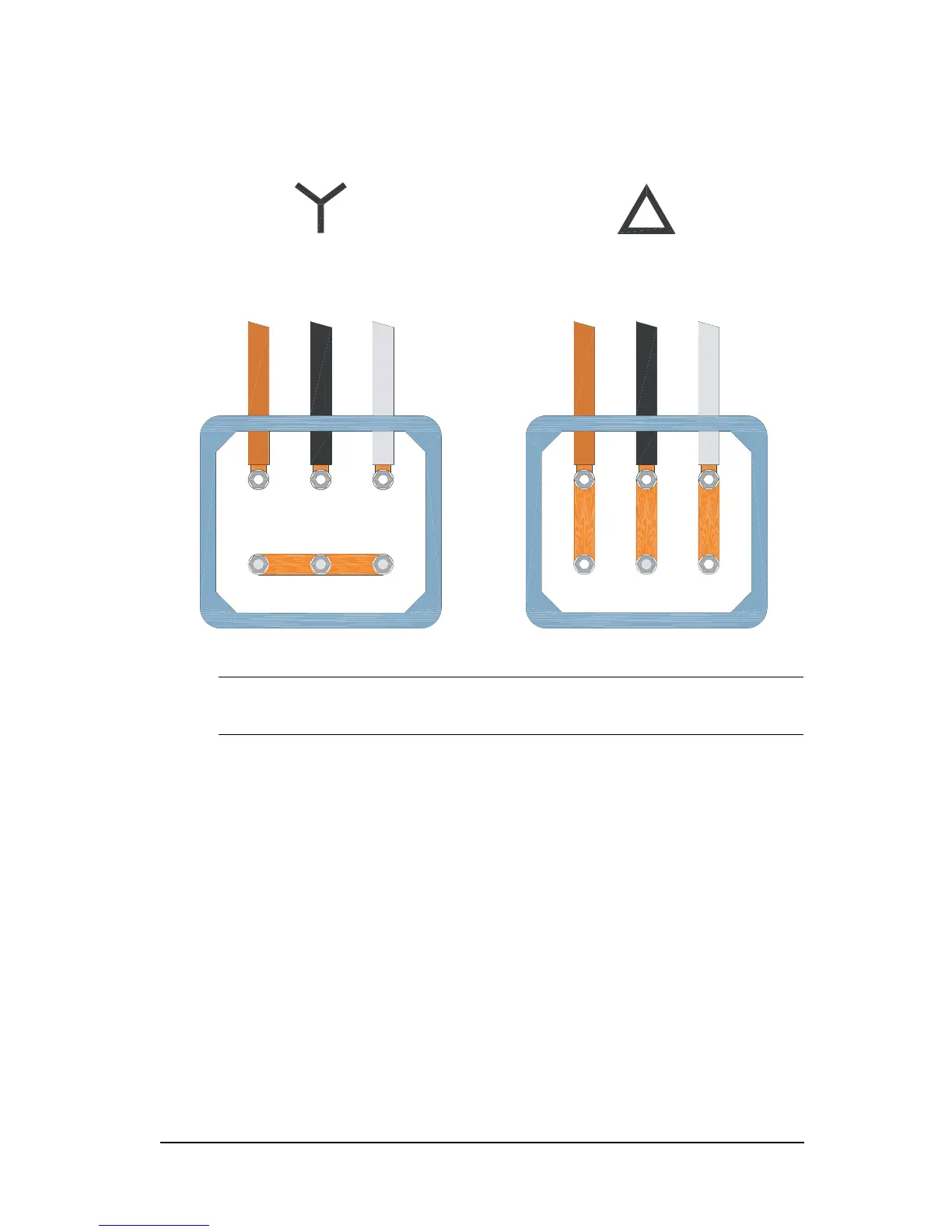

The figure below shows a motor with star and delta connections.
For the highlighted row of the example motor rating plate on
page 19, the connection is delta.
Note: Check which connection is correct for your motor type.
L1 L2 L3 L1 L2 L3
W2 U2 V2 W2 U2 V2
U1 V1 W1 U1 V1 W1
