Installing the drive 41
ACH550-01 User's Manual
Mounting the drive (IP54)

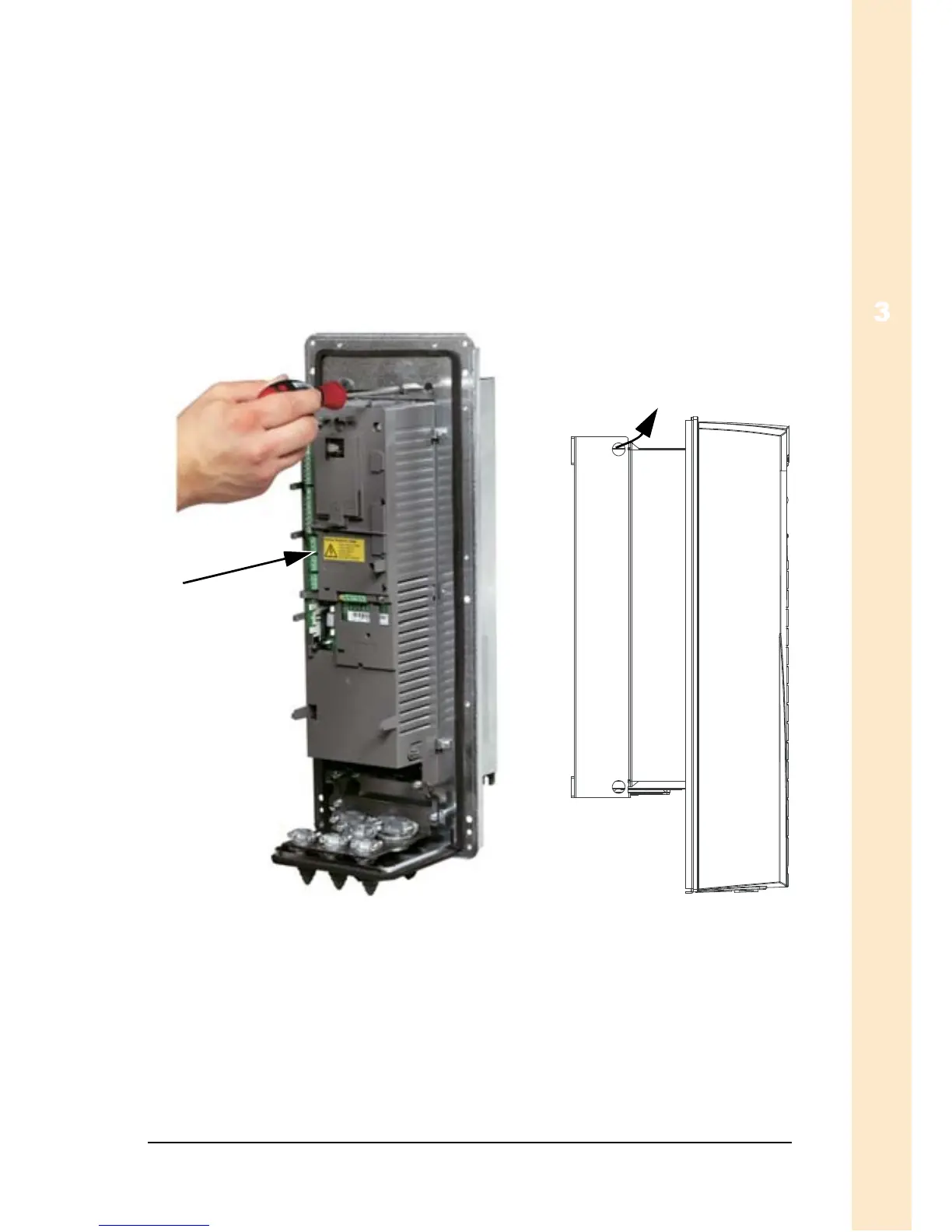

1. Remove the rubber plugs by pushing from the outside.
2. Position the ACH550 onto the mounting screws or bolts
1
and securely tighten in all four corners.
3. Reinstall the protective plugs.
4. Warning stickers in different languages are supplied with
this manual. Attach a warning sticker in the appropriate
language on the inside plastic shell.
