ABB ACH550-01 - Motor Identification

Preparing for installation 19
ACH550-01 User's Manual
Motor identification

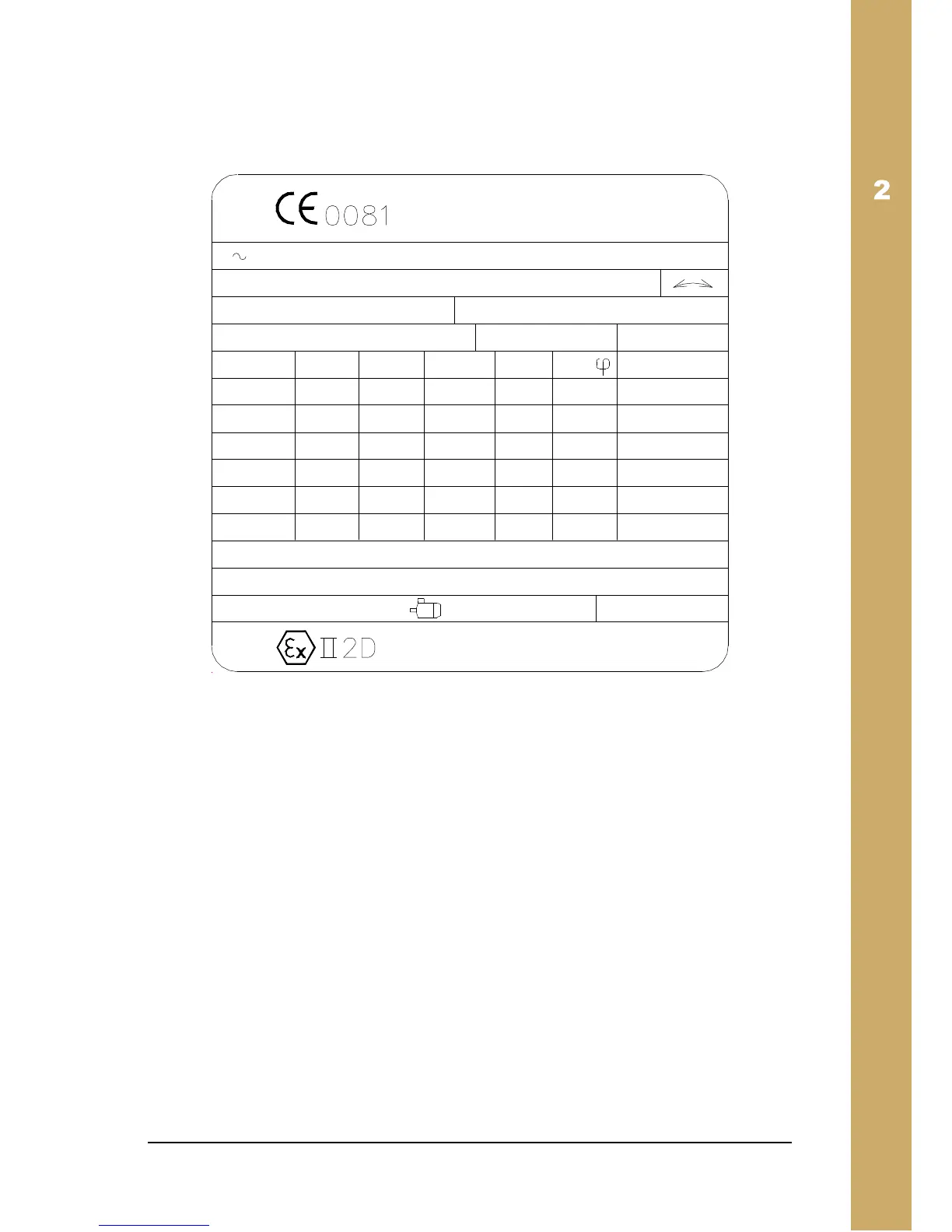

An example motor rating plate for an IEC motor is shown below.
Collect the following information:
• voltage
• nominal motor current
• nominal frequency
• nominal speed
• nominal power.
