Preparing for installation 25
ACH550-01 User's Manual

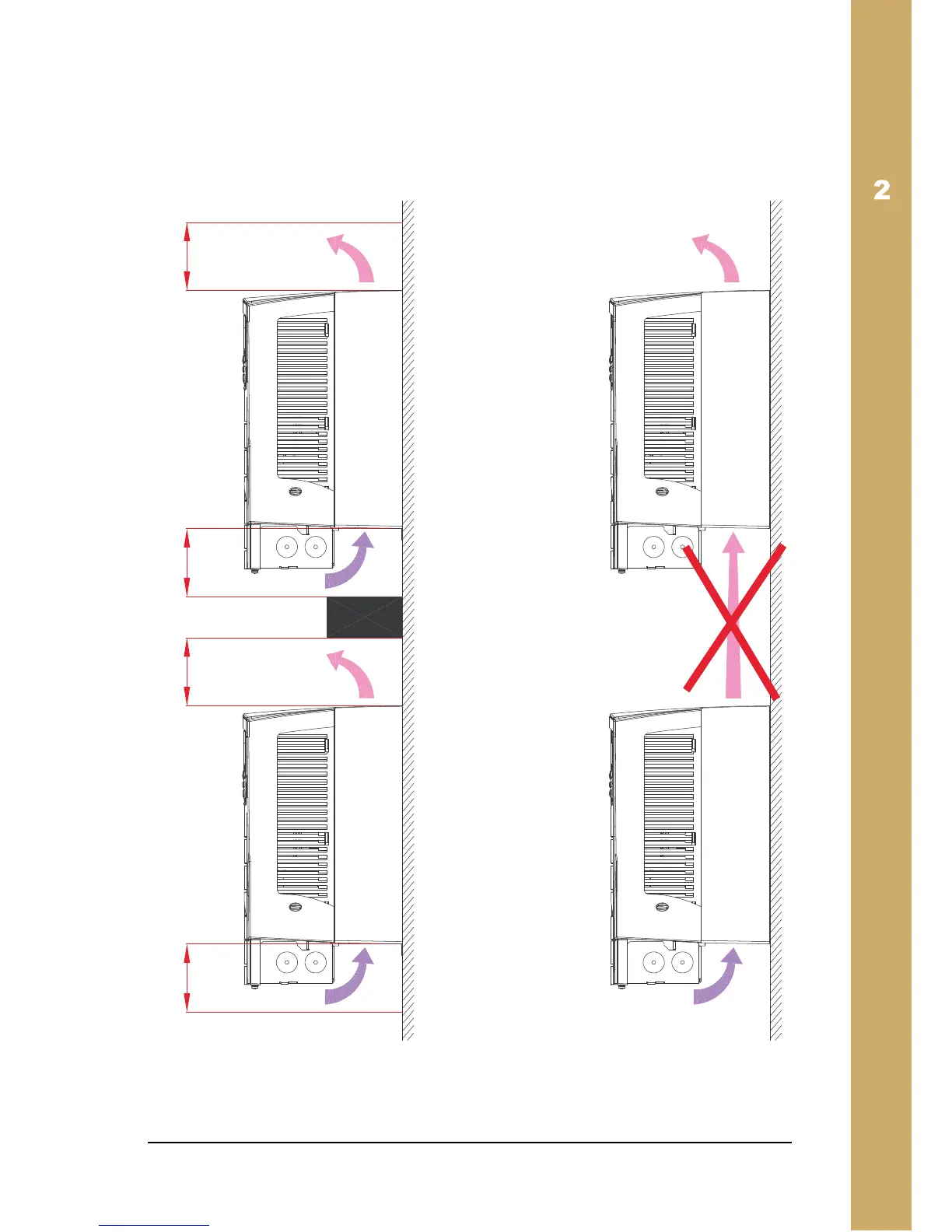

Stop the hot air from a drive from entering the cooling air intake
of another drive with an adequate mechanical obstacle between
the drives. The figure below shows the minimum space for
cooling air.
200 mm
200 mm
200 mm
200 mm
