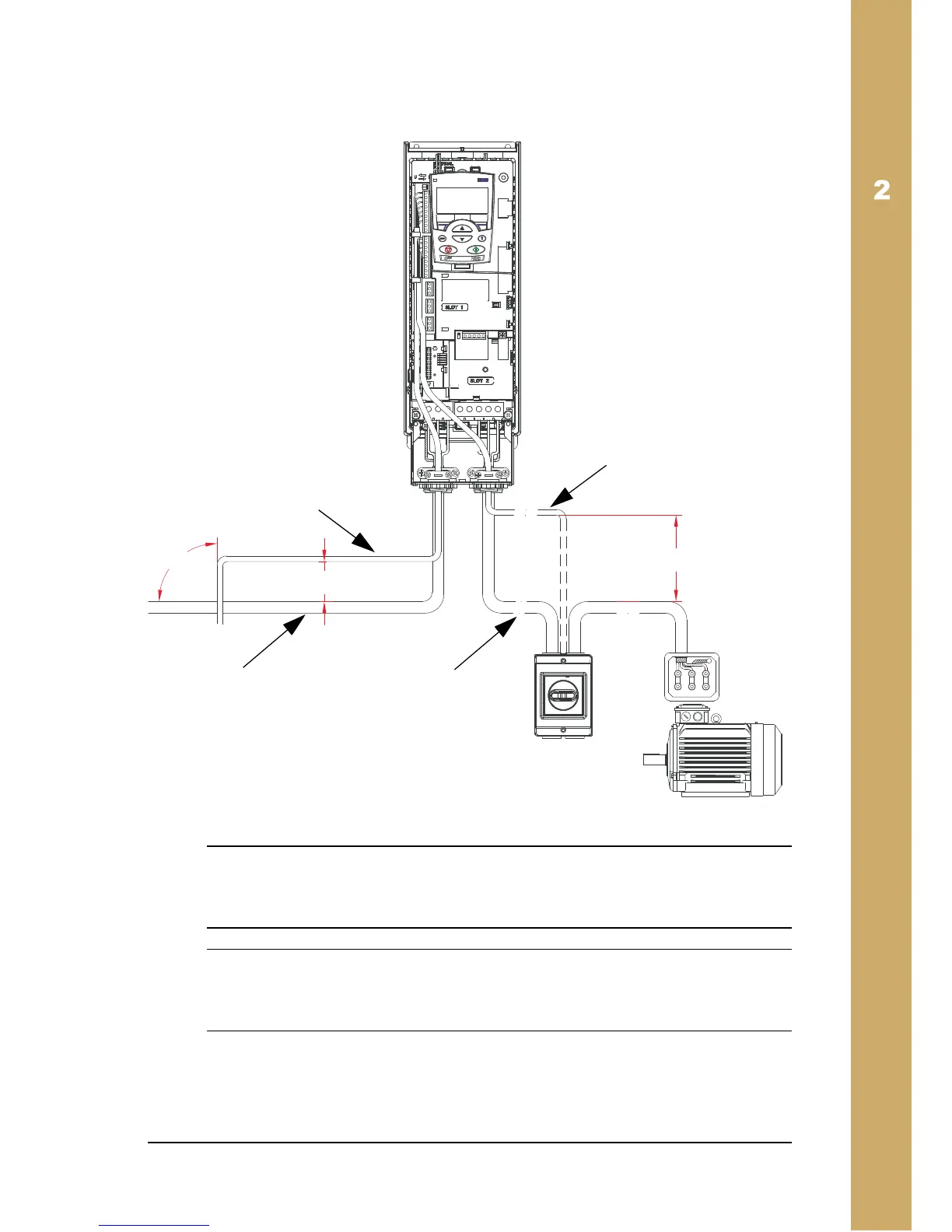

The figure below shows an example of control cable routing.
Note: Do not mix relay-controlled signals using more than 30 V
and other control signals in the same cable.
Note: Never mix 24 V DC and 115/230 V AC signals in the same
cable.
90°
min. 500 mm [20 in]
min. 200 mm [8 in]
Control cable
Control cable
Input power cable Motor cable
