Technical data 425
ACH550-01 User's Manual
OPMP-01 Cabinet panel mounting kit
Use the cabinet panel mounting kit (option) to mount the panel
on a cabinet door to maintain the IP54 / UL Type 12 degree of
protection. The kit includes a 3-meter extension cable, mounting
template, panel platform (an interface board and two gaskets
installed), stainless steel compression bracket, gaskets (for the

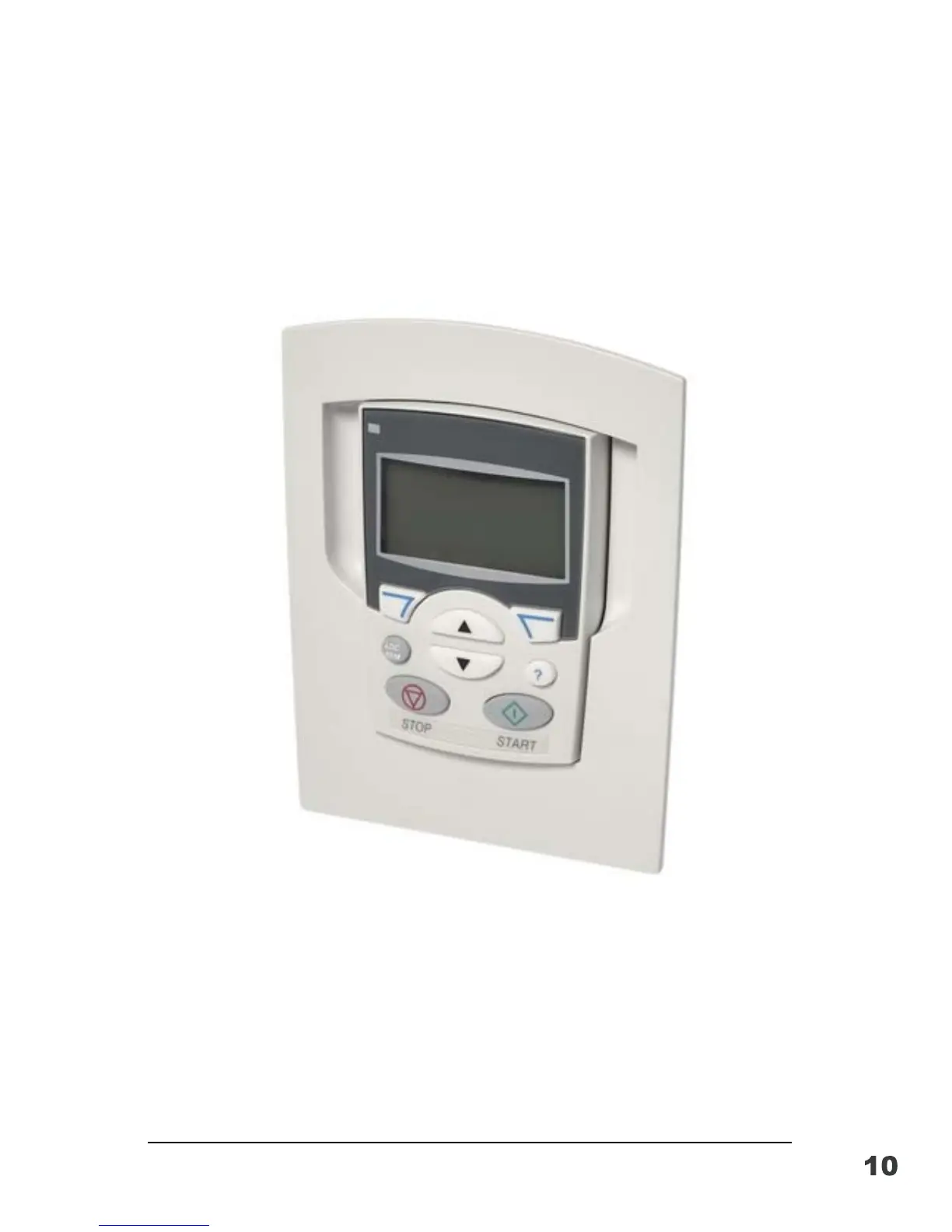

operator panel) and mounting screws. The figure below shows
how to mount the control panel into the panel mounting platform.
