03 POWER ELECTRONICS AND CABINET FEATURES
3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 30/184
3.1 Overview
The air-cooled ACS1000 is a general-purpose frequency converter for the control of standard
induction motors.
The following sections provide an overview of:
- Drive topology and main features
- Available main and auxiliary power configurations
- Power electronic components of the drive
- Cooling system
- Cabinet features such as the grounding switch and the electro-mechanical door interlock

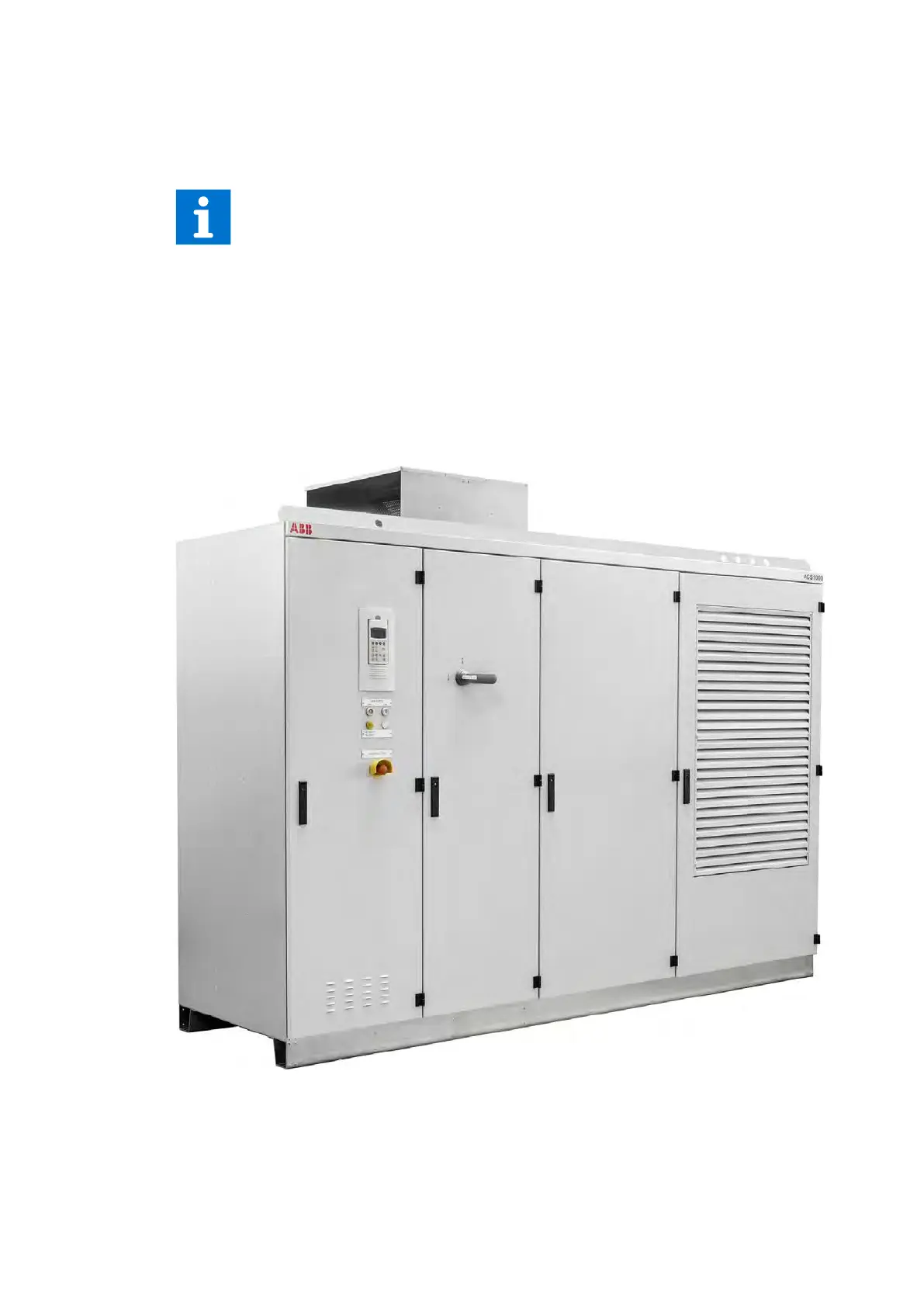

Figure 3-1: ACS1000 air-cooled
For information on the power and voltage range of the drive, see the Technical
specifications and the rating plate of the drive.
