04 CONTROL SYSTEM
3BHS213401 E01 REV H ACS1000 AIR-COOLED USER MANUAL 54/184
4.2 Main components
This section provides an overview of the main hardware components of the control system and
their interconnection.

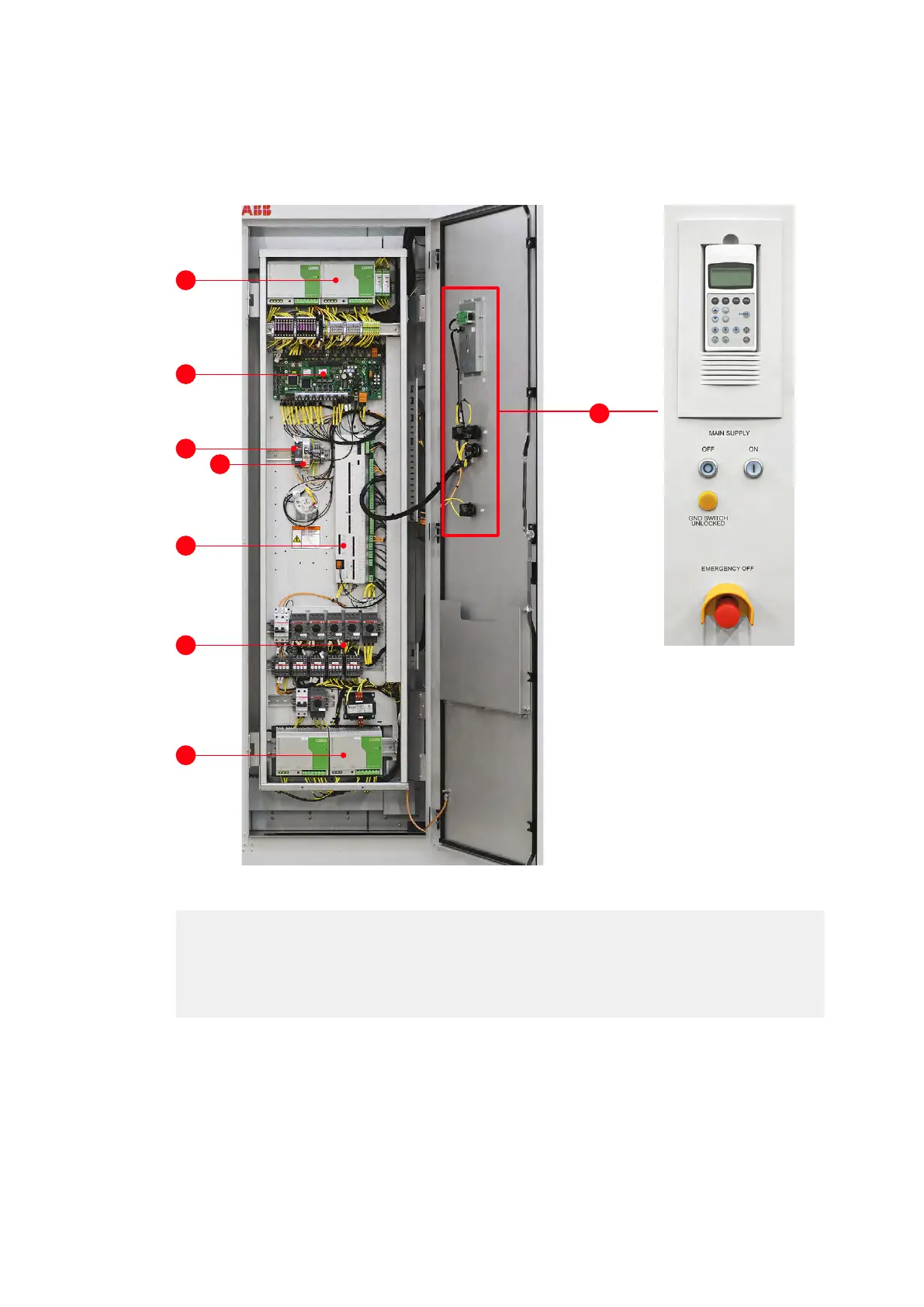

Figure 4-2: Control compartment
(1) Control power supply
(2) AMC circuit board and INT circuit board
(3) Pulse encoder (option)
(4) Fieldbus interface (option)
(5) IOEC1 module
(6) Motor starters and circuit breakers
(7) Control power supply
(8) Local control panel
8
1
2
3
4
5
6
7
