3.3 Power supply configurations
The drive requires 2 independent power supplies:
- Main power supply for the power electronic components
- Auxiliary power supply for the control and cooling system

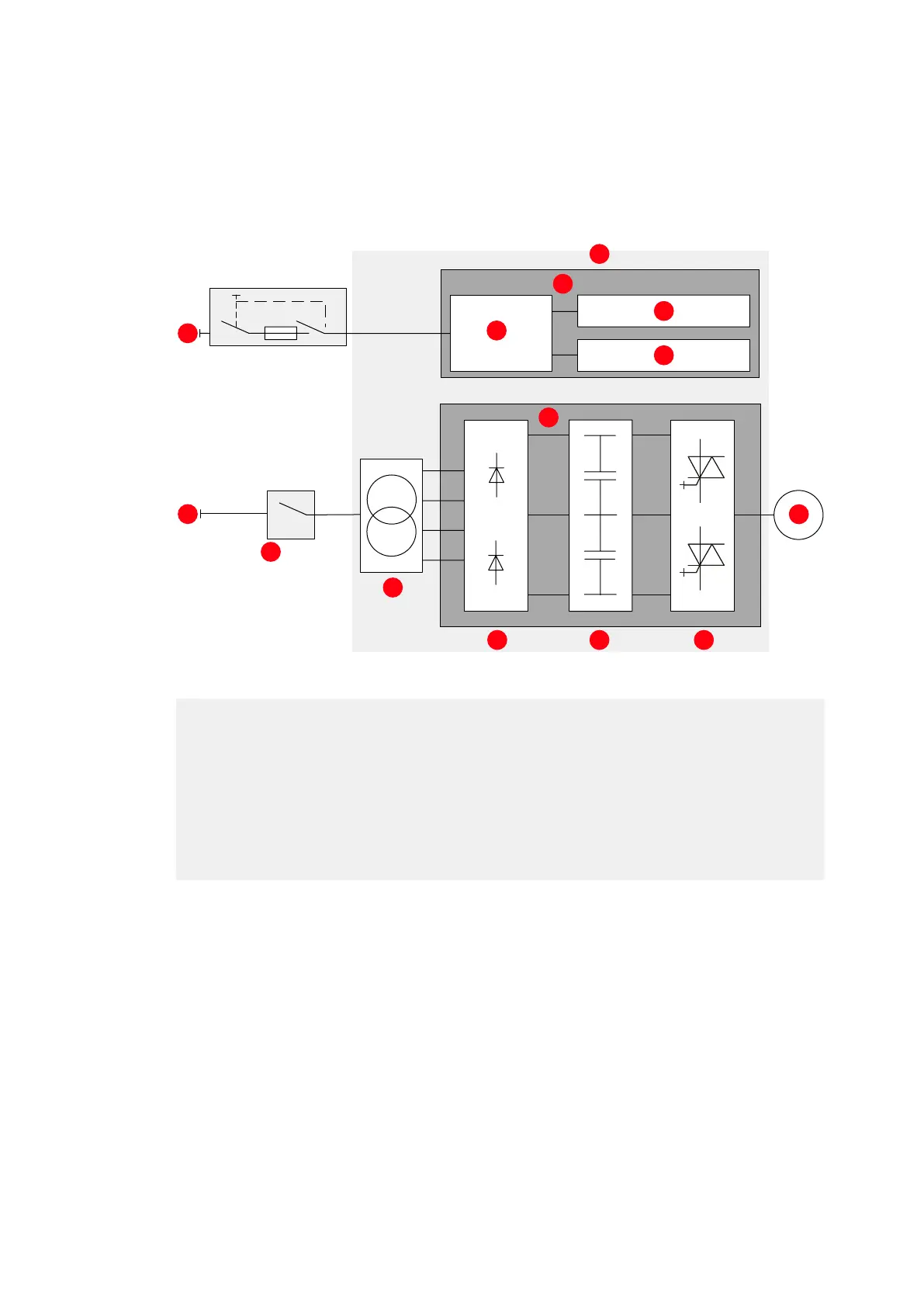

Figure 3-3: Drive overview with power supplies
(1) Auxiliary power supply
(2) ACS1000A
(3) Control and cooling system
(4) Auxiliary power distribution
(5) Cooling system
(6) Control system
(7) Main power supply
(8) MCB
(9) Transformer
(10)Power electronic components
(11) Rectifier
(12)DC link
(13)Inverter
(14)Motor
1
2
3
4
5
6
7
8
9
10
11 12 13
14
