Dimensional drawings

114

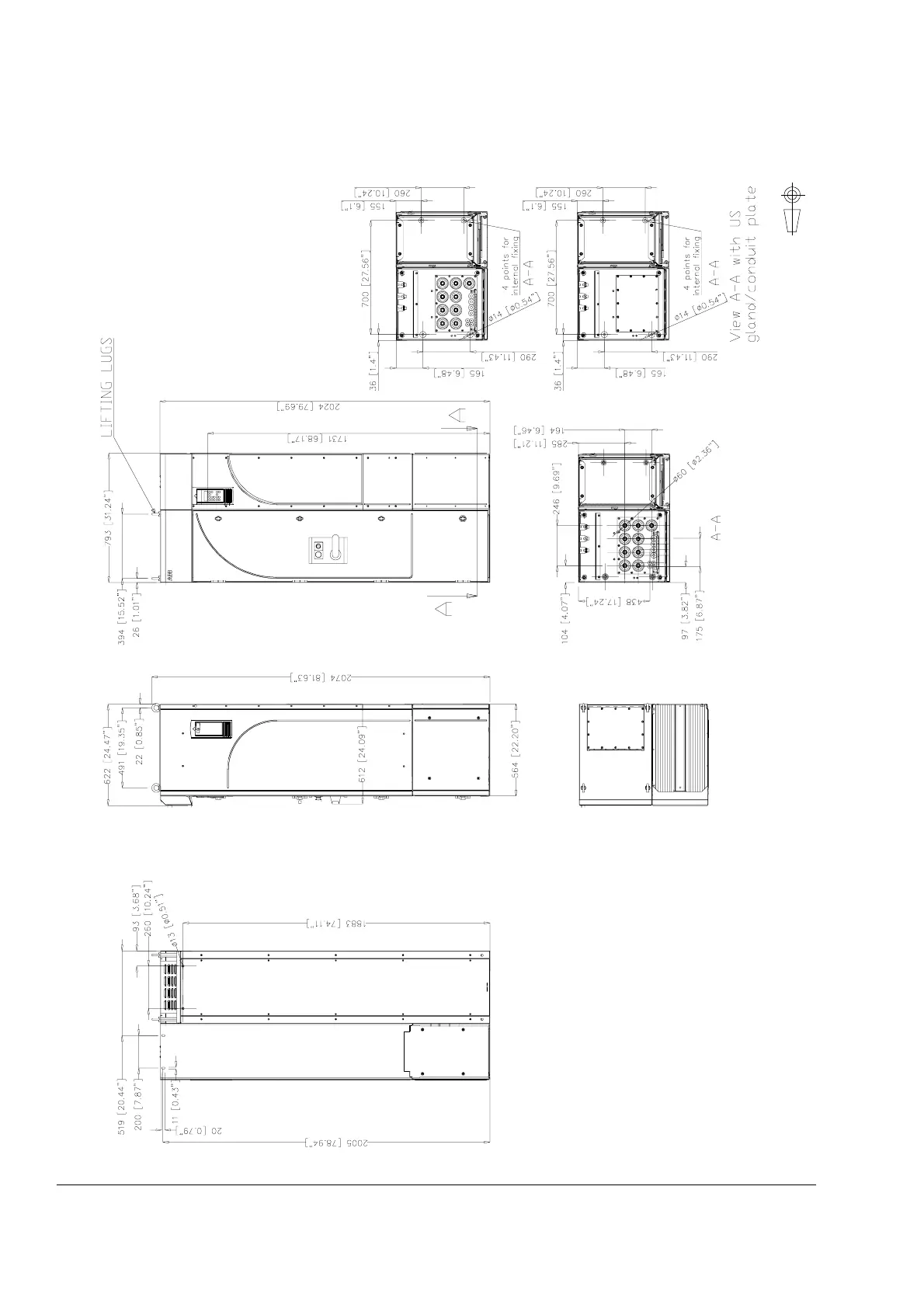

Frame size R8 with enclosure extension – bottom entry

3AFE 64626388 1/2 - B
