ABB ACSM1 Series - Page 132

Example 1: The Instance Data Block of FB500 ABB_DRIVE_CONTROL_FB has been named
ABB_DRIVE_CONTROL_FB_DB_1 and instance data block of FB501 ACS_DRIVE_PARA has been
named ACS_DRIVE_PARA_DB_1 and ACS355 with FPBA-01 PROFIBUS module in DP-V0 mode has
been used.

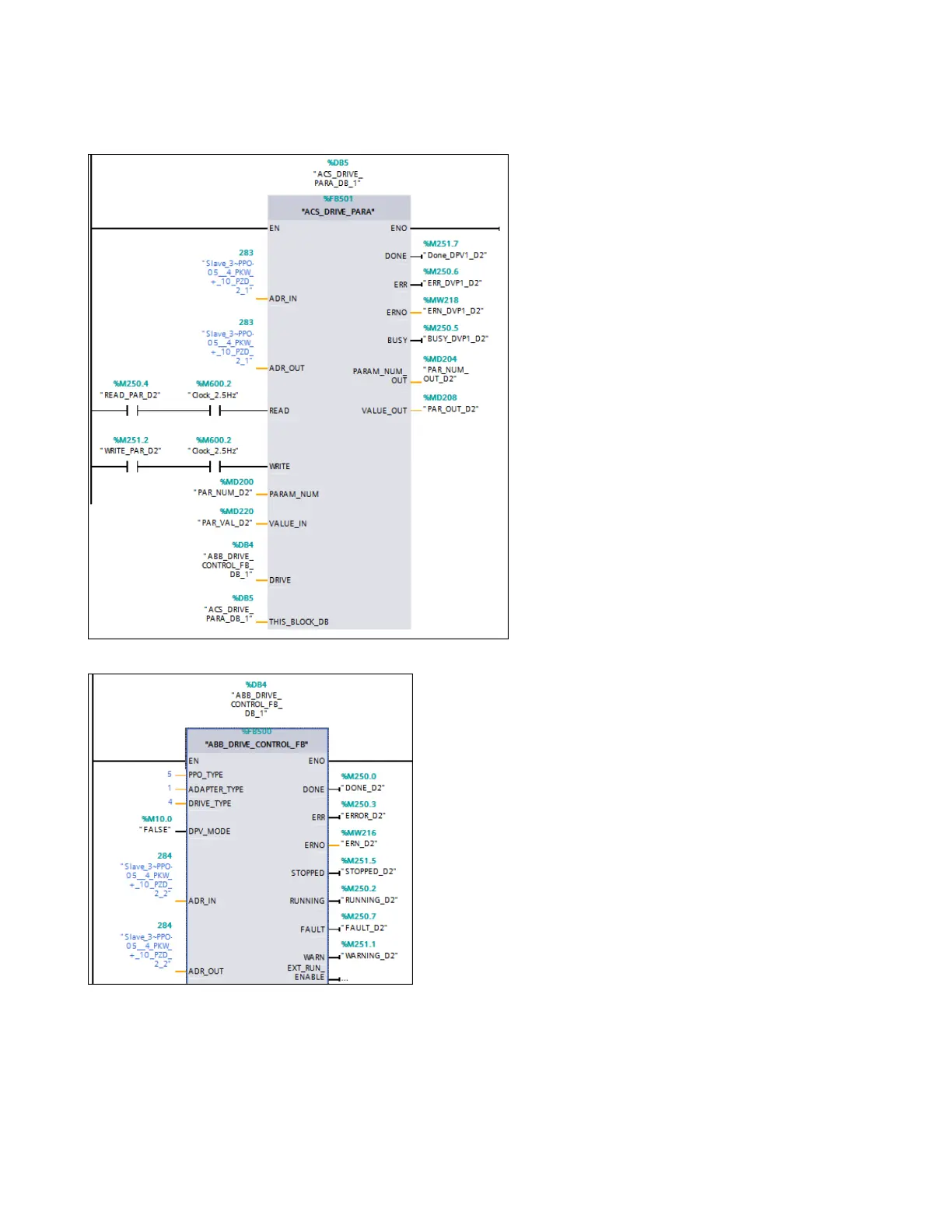

Figure 158 Example FB501 DP-V0
Figure 159 Example FB501 DP-V0
