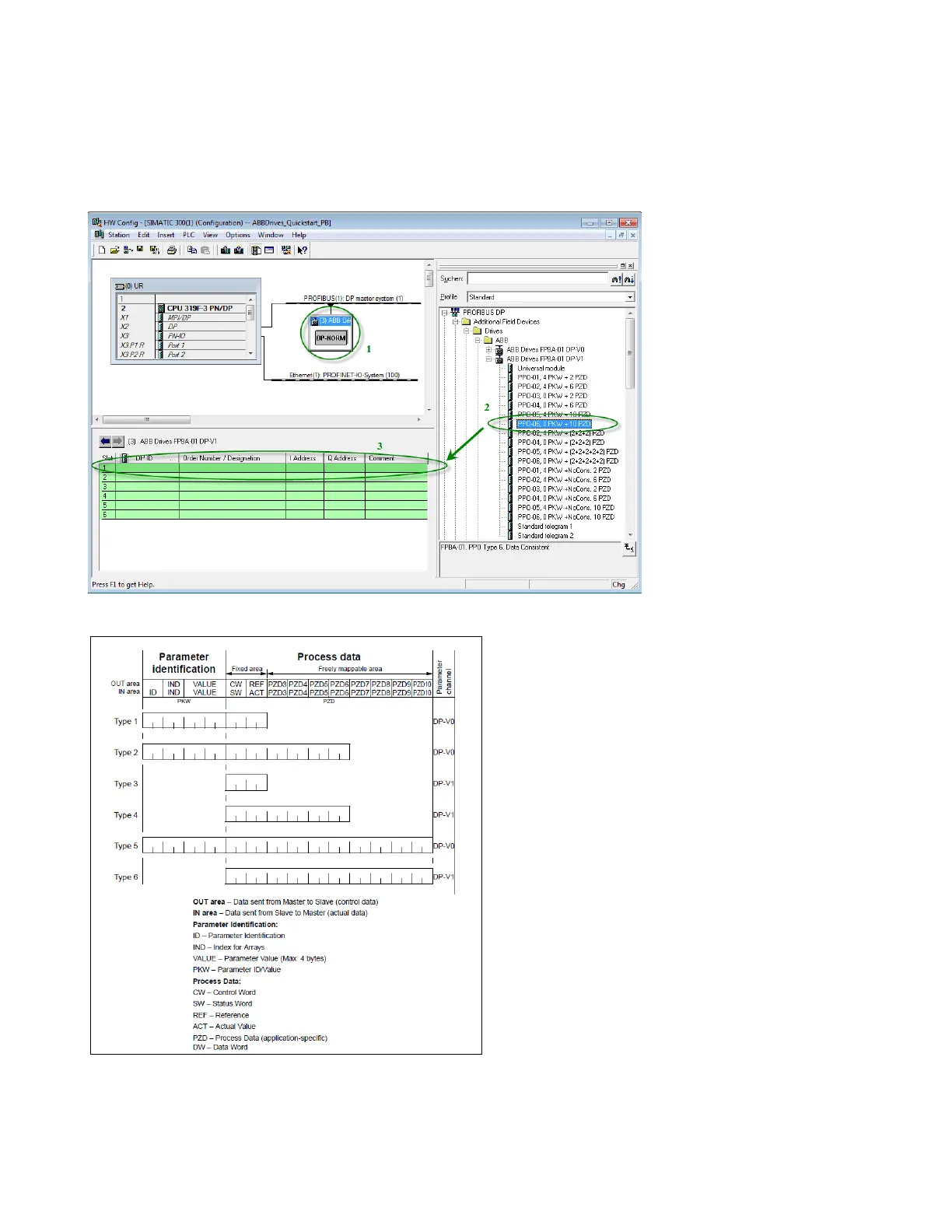

Select the drive/PROFIBUS DP node (1), drag and drop desired PPO type (2) to slot 1 of the module (3).
Note: Only PPO types with consistent data, example, PPO-06, 0 PKW + 10 PZD are supported. PPO
types without consistent data, example, PPO-06, 0 PKW + (2+2+2+2+2) PZD or PPO-06, 0 PKW
+NoCons. 10 PZD are not supported by ABB_DRIVE_LIB.
Note: If you are using DP-V1 protocol, only PPO types without Parameter data area are available
(example, PPO-03, PPO-04, PPO-06).
Figure 13 PPO type
