The drive automatically receives peripheral memory areas for data input and output (Process data that
will be sent between the PLC and the drive). In this example, the 20 byte long peripheral memory area
starts from 256. If required, double-click PPO-XX of actual drive and change the peripheral memory area.

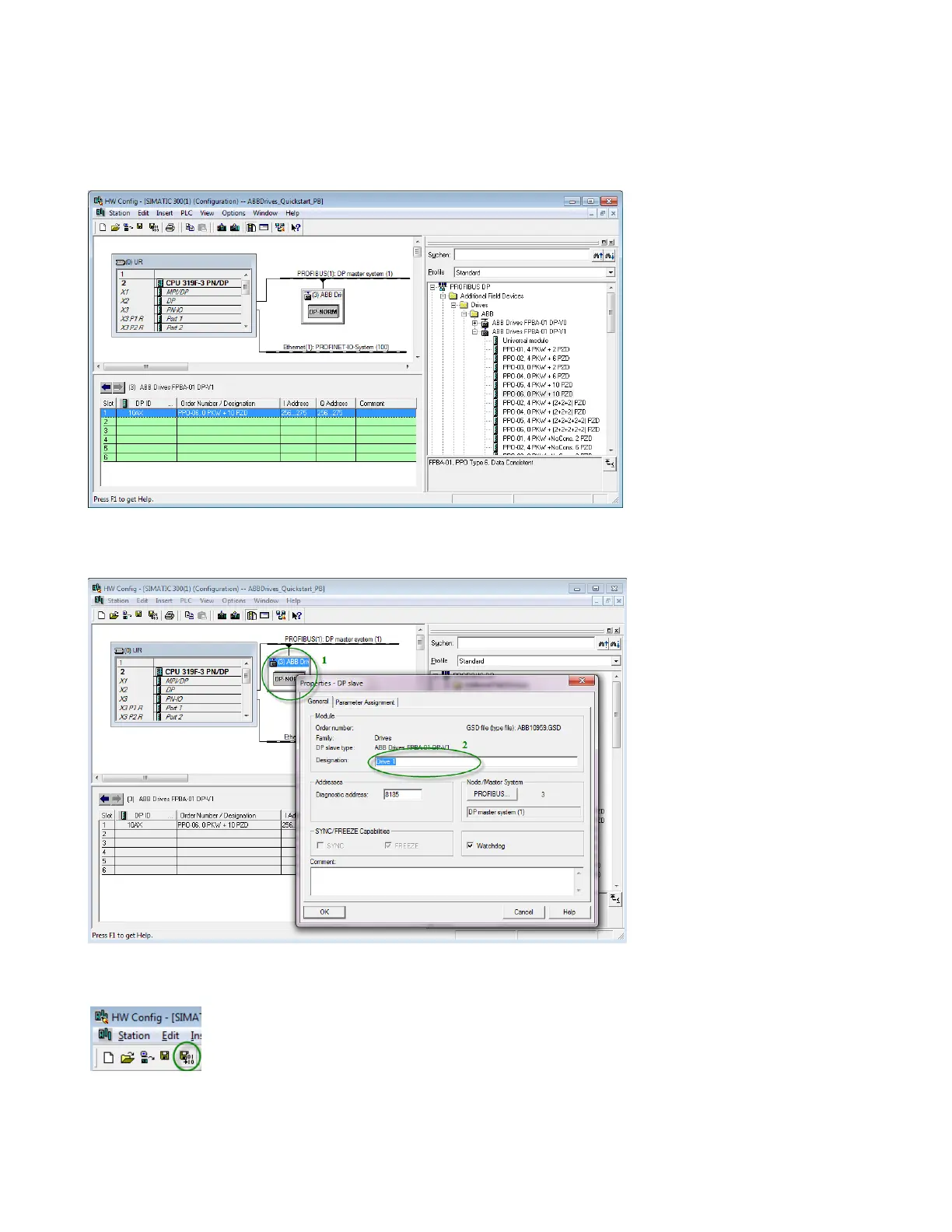

Figure 14 PPO type of actual drive
If required, right-click the drive (1), choose Object Properties, and change name (2) of the node.
Figure 15 Object properties
Repeat the procedure to add more drives if needed and then click Save and Compile button.
Figure 16 Save and compile
