The selected PLC is assigned to the ABB drive.

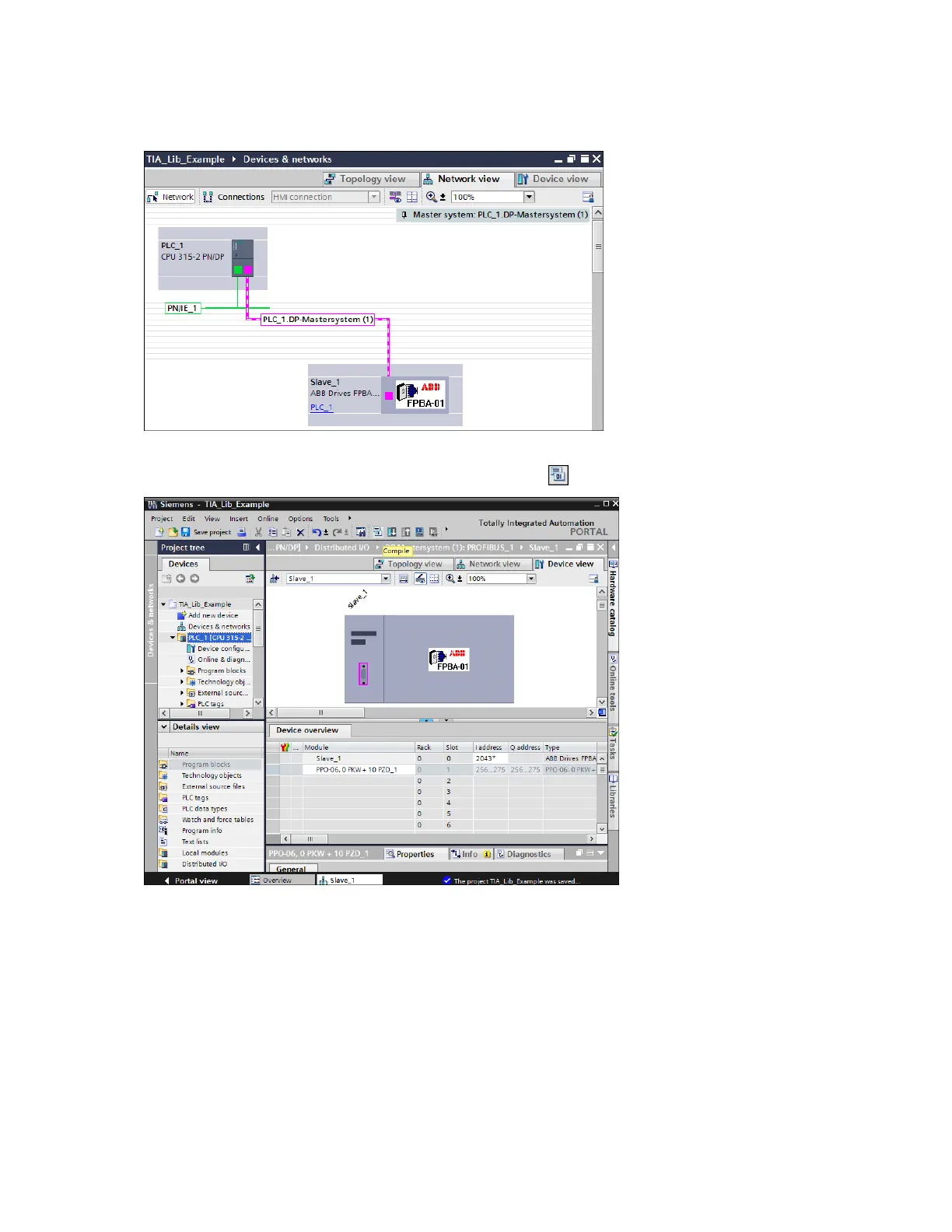

Figure 71 PLC assigned
8. In the Project tree pane, select PLC_1 and then click to compile.
Figure 72 Compile
Note: Before downloading the configuration to PLC, check the PC IP address. For more
information, see section Configuring PC IP address (page 71).
