ABB AquaMaster4 - Remote Sensor and Input;Output Connections

AQUAMASTER4 | ELECTROMAGNETIC FLOWMETER TRANSMITTER | OI/FET400-EN REV. D 29
AquaMaster4 remote sensor connections
1 Connect the ground cable C to the top cover of the
transmitter.
2 Fit the top cover to the transmitter.
3 Remove the cap
B on sensor connector A.
4 Carefully push sensor plug
D into the socket and rotate
until it engages.
IMPORTANT (NOTE)
If the sensor cable is terminated with fly leads,
connection is via a sensor cable adapter box (part
number WABC2035 available separately).

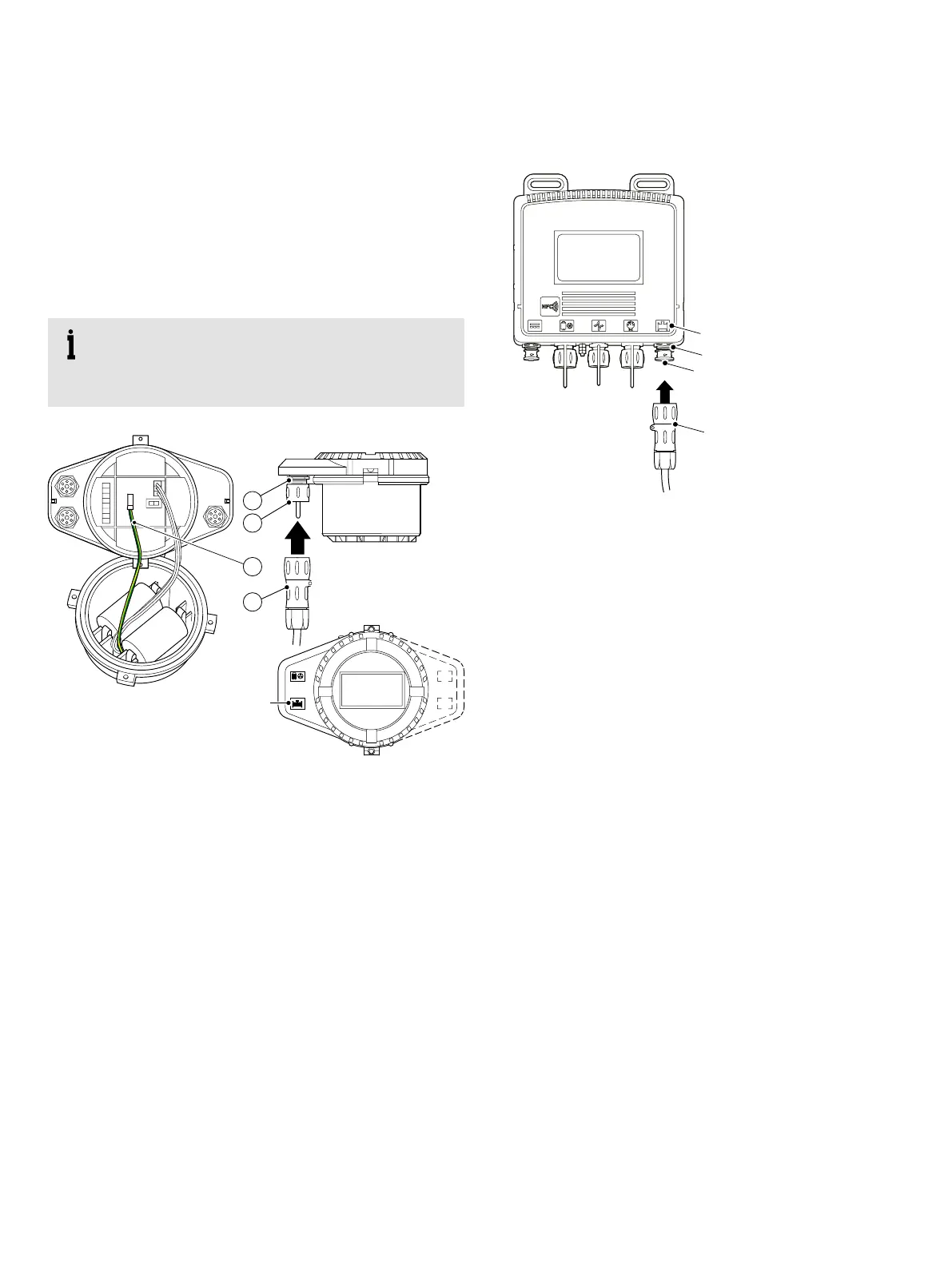

Figure 44 Remote sensor connections (FEW412/432)
Figure 45 Remote sensor connections (FEW452)
B
A
D
C
A
B
D
Remote sensor
connector icon on
transmitter
Remote sensor
connector icon on
transmitter top cover
