32 AQUAMASTER4 | ELECTROMAGNETIC FLOWMETER TRANSMITTER | OI/FET400-EN REV. D
…5 Installation
Pressure transducer (optional)
Optional pressure transducers are available for a range of
pressures and cable lengths.

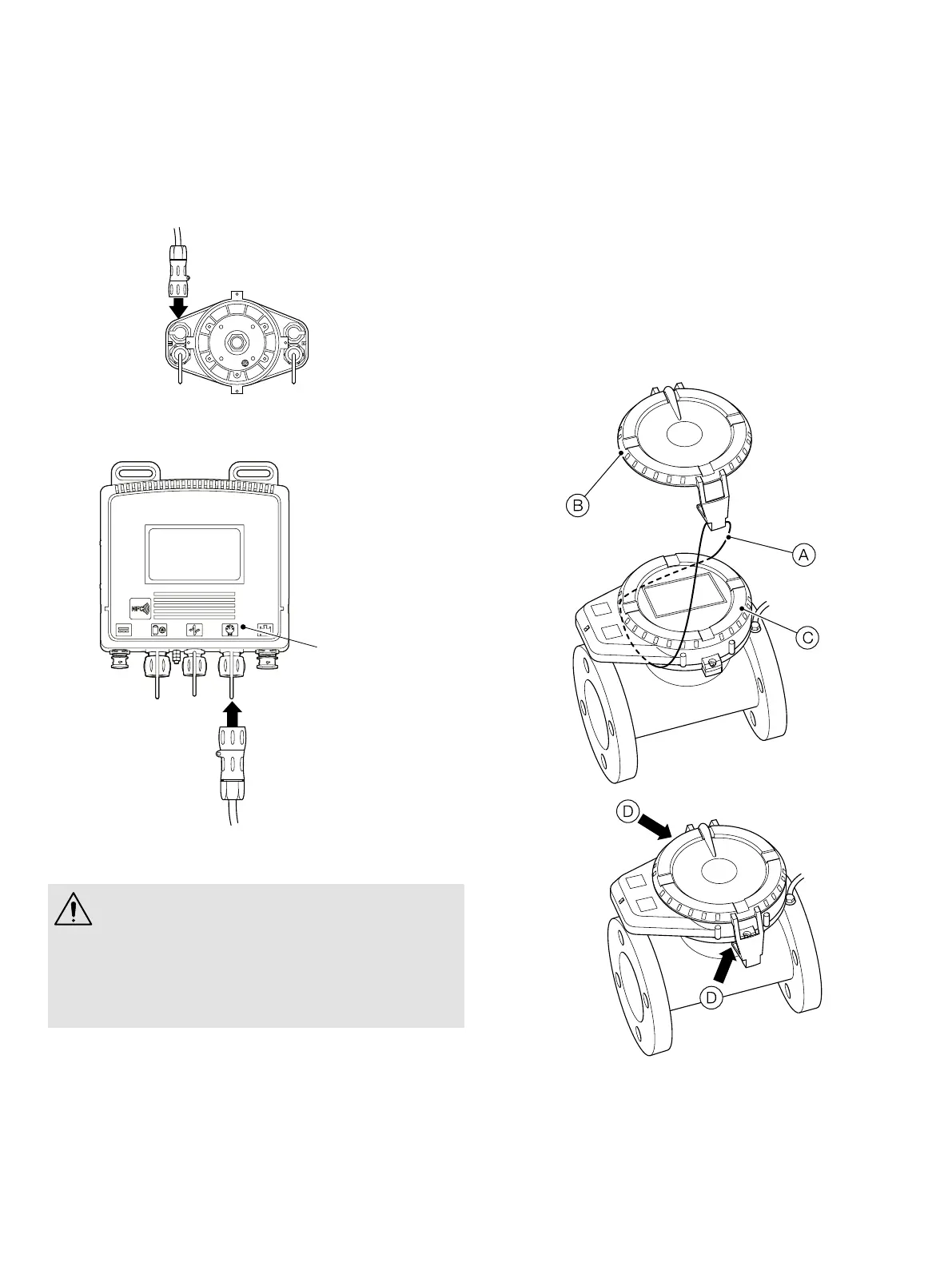

Figure 51 Optional pressure transducer connector (FET432)
Figure 52 Optional pressure transducer connections (FEX45X)
CAUTION – DAMAGE TO EQUIPMENT
• Use only the pressure transducer supplied with the
transmitter – other types may not function.
• ABB pressure transducers require setting of the
transmitter's pressure span and zero factors.
Transmitter protective cover
An optional protective cover can be fitted over the transmitter
front panel for locations where damage could occur.
Fitting the transmitter protective cover
Referring to Figure 53.
1 Stretch retaining strap
A (included with cover B) over
transmitter face
C.
2 Position optional protective cover
B over transmitter face
C and clip it into the fitted position D.
Figure 53 Fitting the transmitter protective cover (FET41X/43X)
Pressure transducer
connector icon on
transmitter
