34 AQUAMASTER4 | ELECTROMAGNETIC FLOWMETER TRANSMITTER | OI/FET400-EN REV. D
…5 Installation
Fitting the configuration/reading interface and connecting
the NFC wall-mount coupler
Referring to Figure 53 on page 32,
1 Stretch retaining strap
A (included with cover B) over
transmitter face
C.
Referring to Figure 56 and Figure 57:
2 Clip the configuration/reading interface
A over the front of
the transmitter
B, ensuring correct orientation.
3 Route connection cable
C to the required location for the
wall-mount coupler.

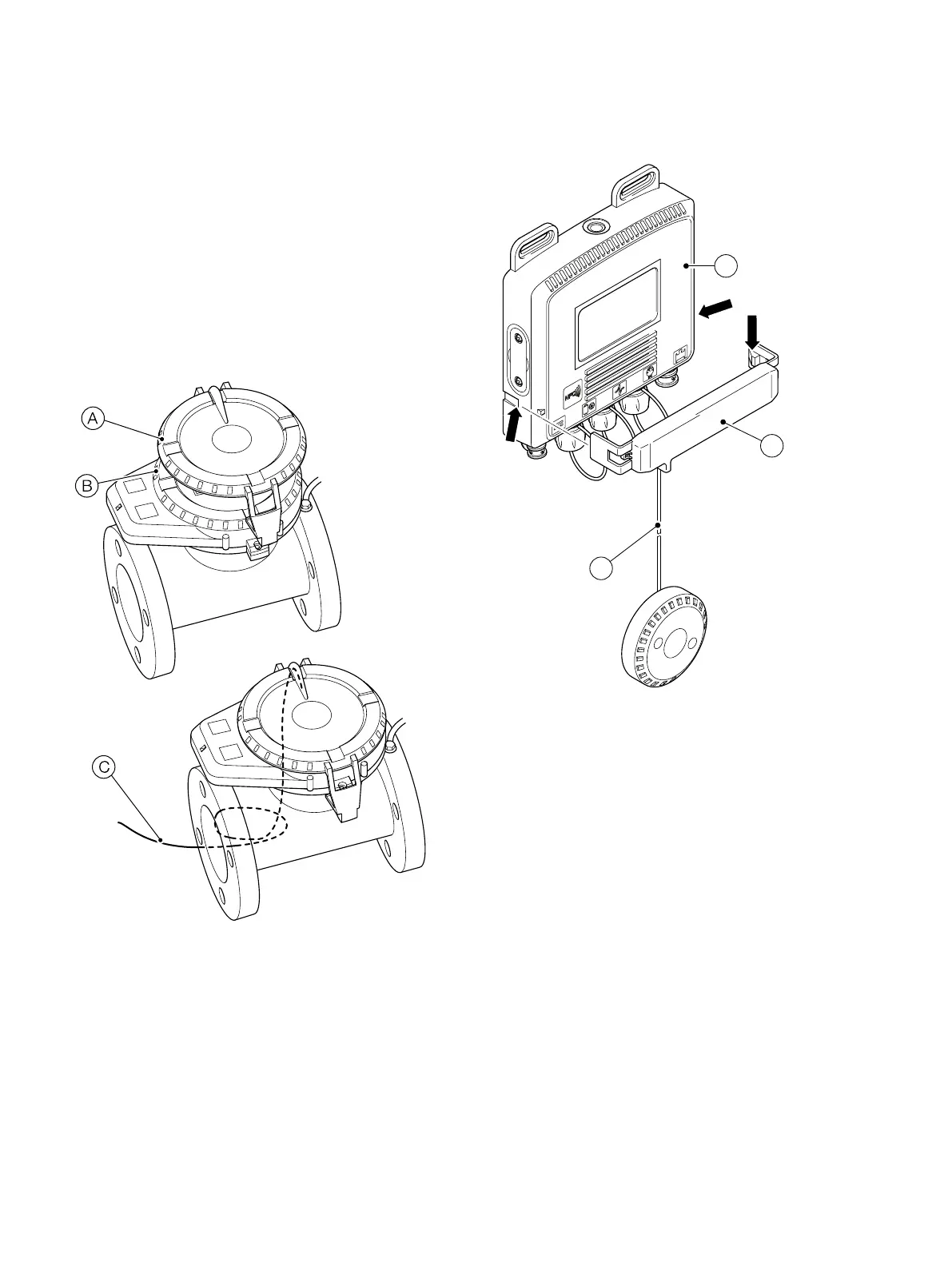

Figure 56 Fitting the configuration/reading interface
(FET41X/43X)
Figure 57 Fitting the configuration/reading interface (FET45XX
B
A
C
