AQUAMASTER4 | ELECTROMAGNETIC FLOWMETER TRANSMITTER | OI/FET400-EN REV. D 35
Referring to Figure 58:
4 The fitted cable can be shortened if required – do not extend
this cable.
5 Loosen cable clamp screws
A, pass free end of cable B
through to terminal connections
C, make cable connections
and re-tighten cable clamp screws
A.
6 Power up and check connections between the 2 interfaces
before proceeding with step 7.
7 Seal the wall-mount coupler connections
C with sealant
(supplied) to seal against water ingress. Allow the sealant to
cure.
WARNING – BODILY INJURY
• Potting materials can be toxic. Read the
manufacturers’ instructions carefully before
preparing the potting material and use suitable
safety precautions when required.
• Do not overfill or allow the potting material to come
into contact with seals or grooves.
• Do not let potting material enter conduit (if used).
8 Fix/mount wall-mount coupler in the required location/
position using 2 screws.

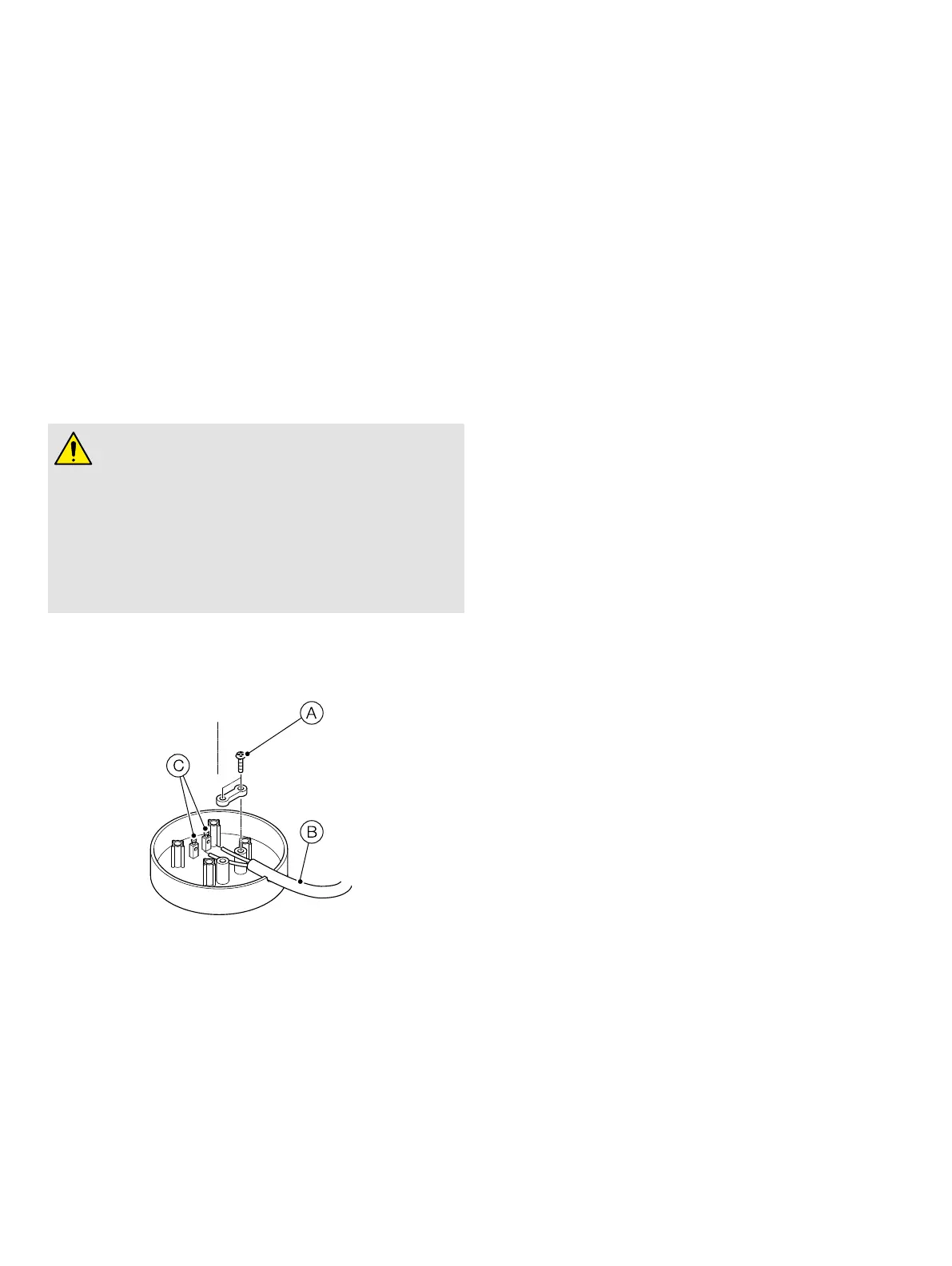

Figure 58 Connecting and sealing the NFC wall-mount coupler
