ABB AquaMaster4 - Process Values and Logger Data

AQUAMASTER4 | ELECTROMAGNETIC FLOWMETER TRANSMITTER | OI/FET400-EN REV. D 49
Process values
This window displays operating values for the selected
flowmeter:

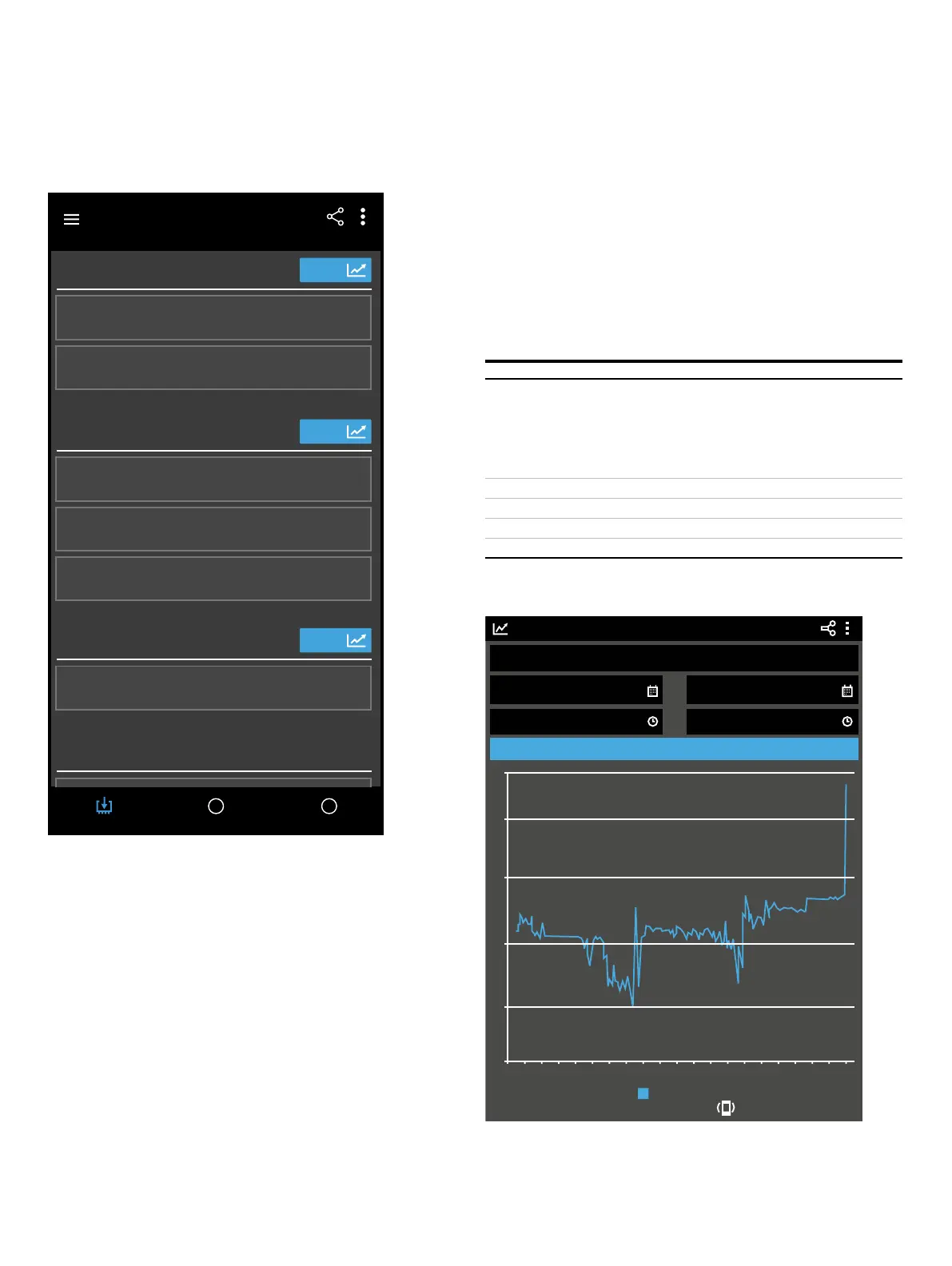

Figure 73 Process Values window
Logger data
If the (optional) logger functionality was ordered, logger data is
acquired by pressing the LOGGER button when the Process
Values window is displayed. The log type and a date/time range
must be specified.
Data acquisition is started by pressing the GET LOGGER DATA
button and holding the phone or tablet within NFC range of the
associated transmitter.
Logger menu options comprise:
Menu Function
Get … Log A drop-down menu used to select
one of the following log types:
Get Flow and Pressure Log
Get Flow Log
Get Pressure Log (pressure transducer option required)
Get Totalizer Log
Date (from)
A user-set calendar used to enter the date to start logging
Date (to)
A user-set calendar used to enter the date to cease logging
Time (from)
A user-set clock used to enter the time to start logging
Time (to)
A user-set calendar used to enter the time to cease logging
Acquired data is displayed on a chart (see below) and can be
shared via Bluetooth/email or saved to a drive – see page 48:
300
250
0158 0158 0158 0158 0158 0158 0158 0158 0158 0158 0158 0158 0158 0158 0158 0158 0158 0158 0158 0158
200
100
50
150
01/06/2017
16:12
13/06/2017
16:12
GET LOGGER DATA
Logger
Get Flow Log
Flow [m3/day]
Rotate device for larger view
Figure 74 Example of logger data displayed on a chart
Aqm4
ID:4294967295
Last access: 10/05/2021 16:35:18
? i
Flow Measurements
Volume Totalizers
Pressure Measurements
Digital Outputs
LOGGER
LOGGER
LOGGER
Flow rate
28.789 l/s
Velocity
3.411 m/s
Forward Volume
1,008.0106 m3
Reverse Velocity
0.0000 m3
Net Volume
1,008.0106 m3
Pressure
1.000 Bar
Process Values
Configurtion Diagnostics
