Fitting the tamper-detection seal (FEX45X)
It is a legal requirement for MID compliant flowmeters to fit a
tamper detection seal to the remote sensor connector.
Referring to Figure 64:
1 Pass the wire of the seal through both the hole in the
locking-ring and the hole in the cable connector.
2 Close the seal.

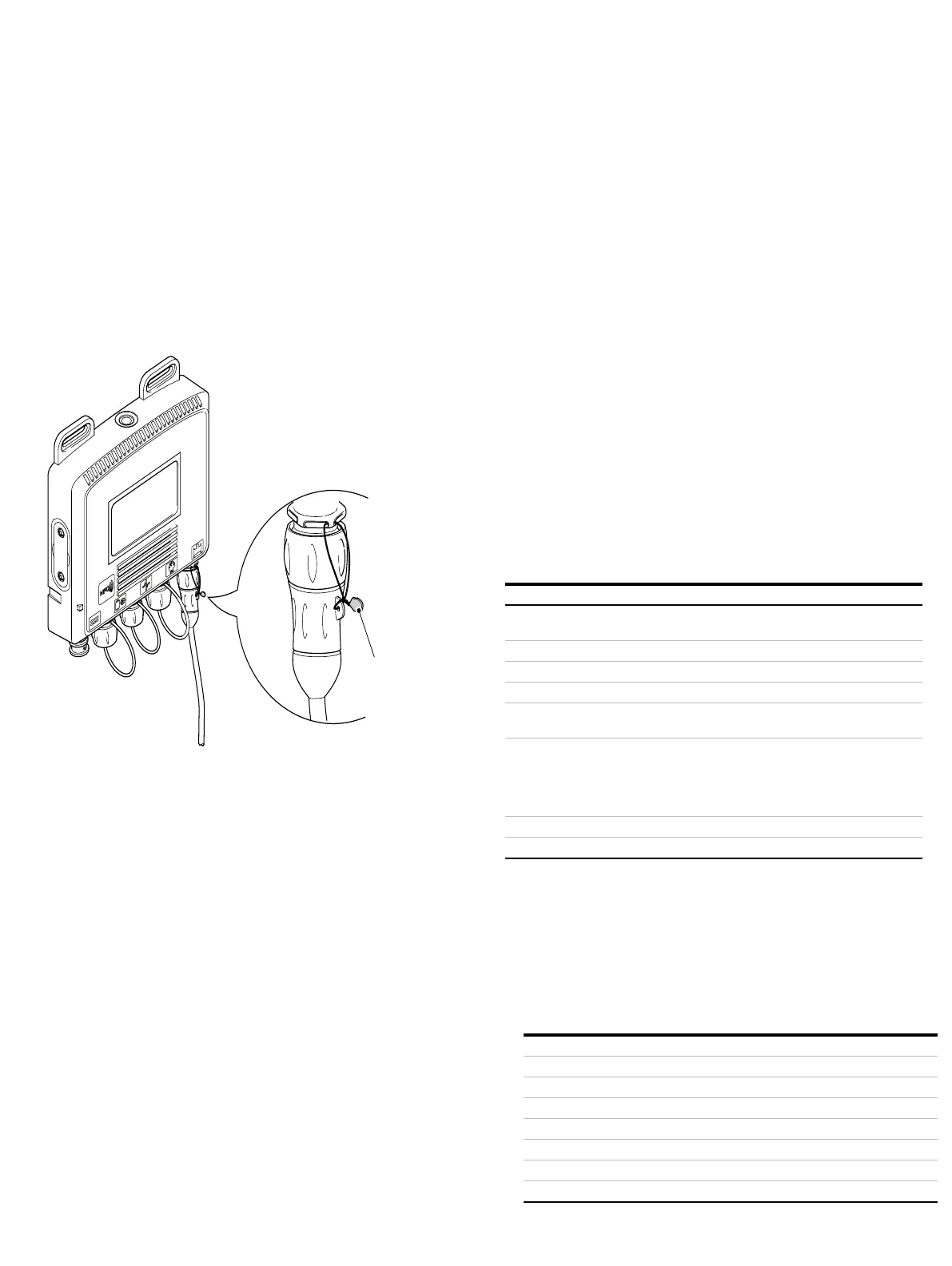

Figure 64 Fitting the tamper-detection seal
Establish cellular 4G communication
It is necessary to establish the cellular communication of
transmitter before putting into operation. This procedure
describes how to establish cellular 4G based communication
between the transmitter and the server (refer to Cellular 4G
settings* on page 55).
1 Insert the SIM card (page 21) and set the Time Zone
according to location of installation (refer to Device
Information on page 50). Ensure that “Data Option” is
enabled in the SIM and enough balance is maintained.
Disable cellular 4G functionality through Velox.
2 Enable Advanced Access Level Enable in User Access Right
Settings and navigate to Advanced Settings – Cellular 4G >
Operation mode.
3 Click the edit icon and select Disabled and tap the phone/
tablet to the device to disable Cellular 4G communication.
4 Configure the below parameters for FTPS server through
Velox interface app under Advance Settings – Cellular 4G
and tap the phone/tablet to the device to update the
parameters.
Item Description
FTPS server host name IP address: xxx.xxx.xxx.xxx
Domain name: xxx.com
FTPS server port number e.g. 21
FTPS server username e.g. Test
FTPS server user password e.g. 123456
FTPS server working directory
(optional)
e.g. /test
Device folder name style The default selection is Meter tag
with option to select Transmitter/
Sensor ID. Ensure the Meter tag is
defined (refer to Device
Information on page 50)
Data report mode Summary report
FTPS file type JSON/CSV
5 Configure parameters for SSL/TLS through Velox. The
purpose of configuring SSL/TLS parameters is to realize
digital certificate based mutual authentication between the
FTPS server and the device.
a Prepare the CSR subject name file (in .txt format) and
save it in the phone/tablet, the csr_info file should contain
a comma-separated list of OID (Object Identifier) types
and values as below:
Field Description Example
C Country China
CN Common name AquaMaster 4
L Locality Shanghai
O Organization ABB
OU Organizational unit Service
R Email address xxxx@cn.abb.com
ST State Shanghai
Security tag
and seal
