AQUAMASTER4 | ELECTROMAGNETIC FLOWMETER TRANSMITTER | OI/FET400-EN REV. D 37

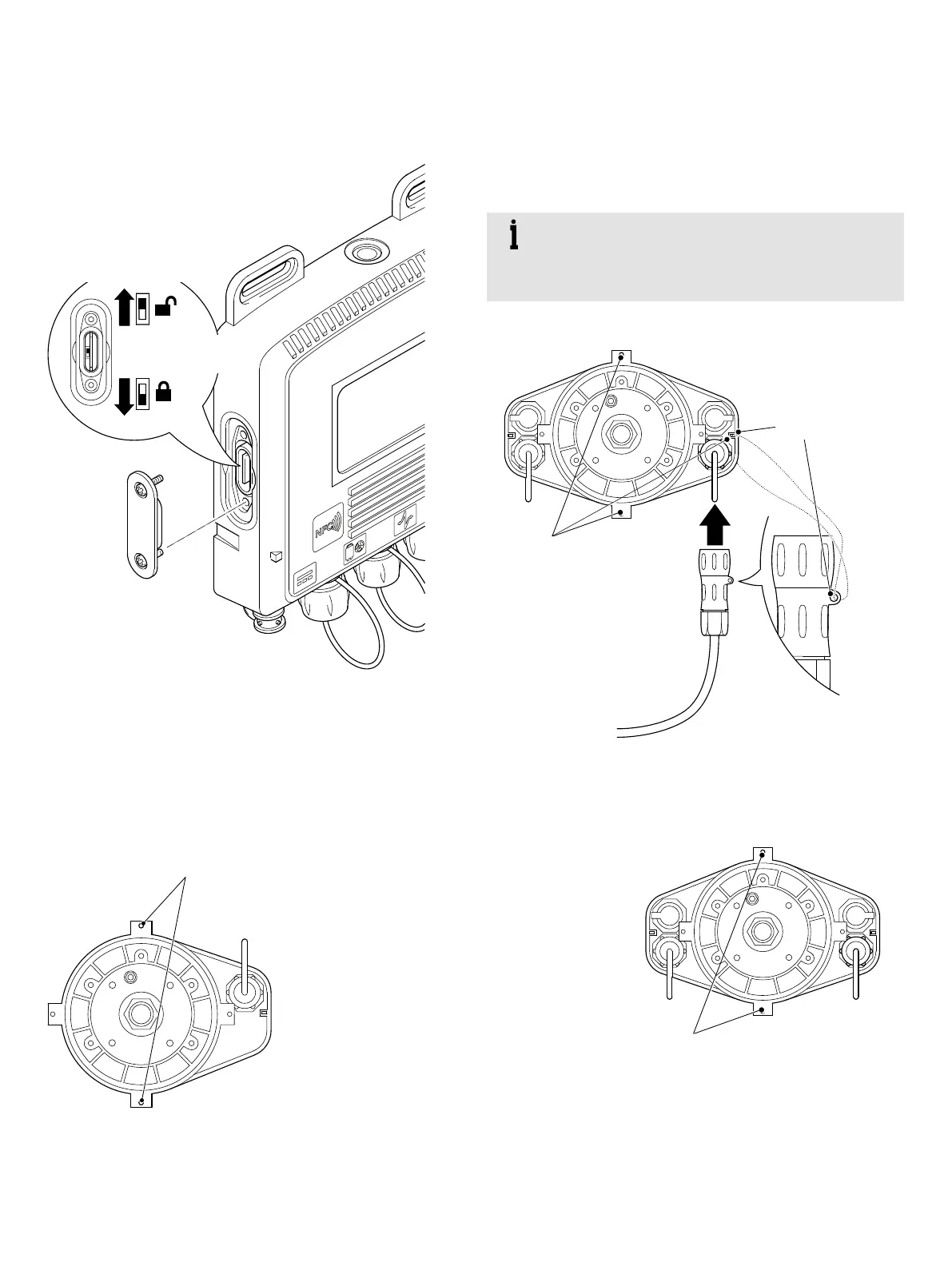

Figure 60 Read-only switch and compliance seal (FET45X
Integral transmitter –
tamper-detection seals/locking screws
Locations for tamper-detection seals/locking screws on
integral transmitters are shown in Figure 61.
Tamper-detection seal/
locking screw locations
Figure 61 Integral transmitter (FEW431) –
tamper detection seal/locking screw locations
(rear view)
Remote transmitter –
tamper-detection seals/locking screws
IMPORTANT (NOTE)
It is a legal requirement for MID-compliant
flowmeters to fit tamper-detection seals at
installation to the case and remote sensor connector.
Locations for tamper-detection seals are shown in Figure 62.
Tamper-detection seal
locations on case
Tamper-detection
seal fitted through
case and lug on plug
Figure 62 Remote transmitter (FET432) tamper-detection seal
locations (rear view)
Locations for locking screws are shown in Figure 63.
Locking screw
locations on case
Figure 63 Remote transmitter (FET432) security screw locations
(rear view)
Read/Write position
MID/Read-only switch
MID sealed read-only
position
