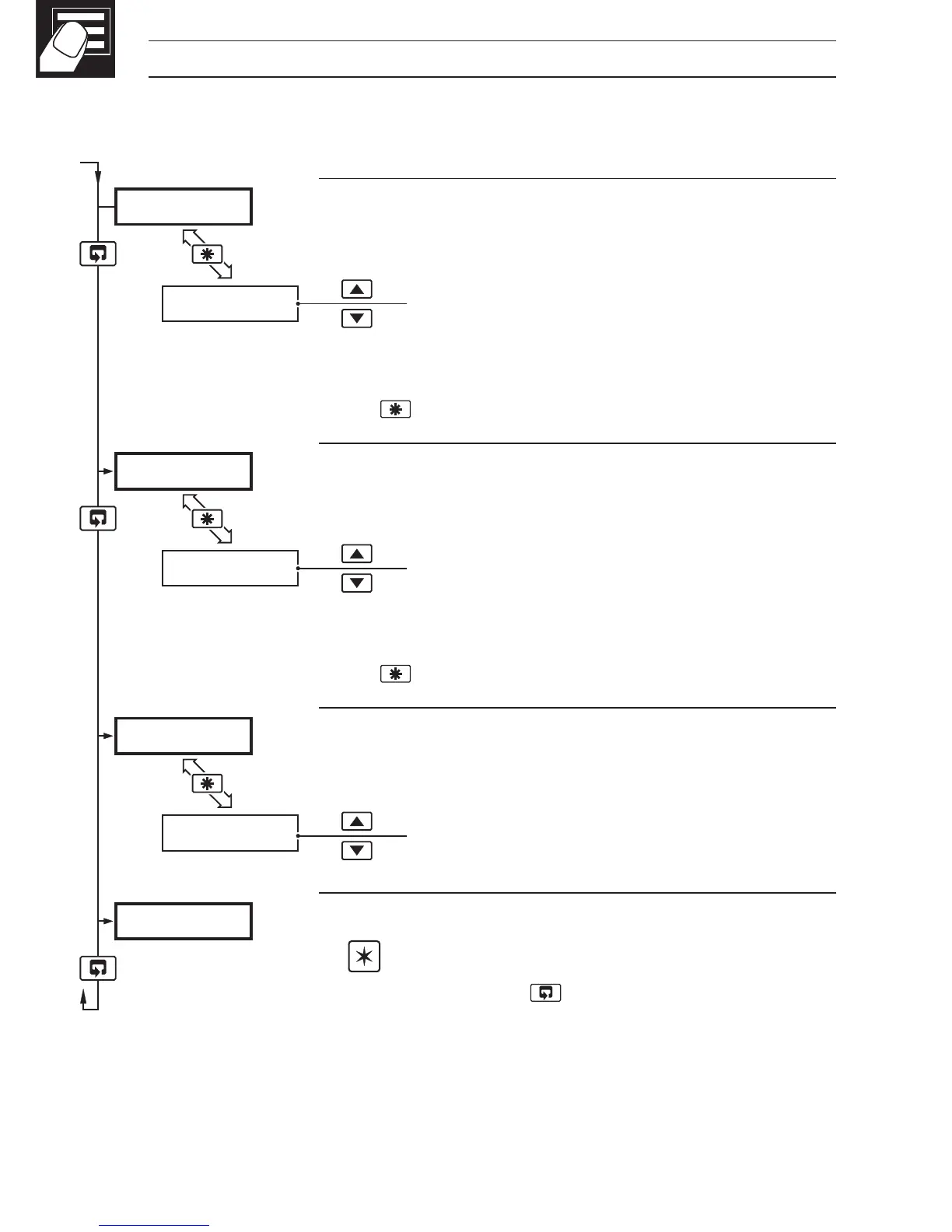

…2 OPERATOR MODE
…2.4 Operating Page – Maths Functions (Level 1)
•1 This frame can be disabled – see Section 4.3.3.
The Max. and Min. values are reset automatically on power-up and can also be
reset from a digital input – see Section 4.3.4.
The reset reset function in this frame can be disabled – see Section 4.3.3.
Maximum Value
This is the maximum value of the process variable since
the maximum was reset.
rSt-Y – reset
rSt-n – do not reset
To reset the maximum value, select
rSt-Y then press
the
key.
Minimum Value
This is the minimum value of the process variable since
the minimum was reset.
rSt-Y – reset
rSt-n – do not reset
To reset the minimum value, select
rSt-Y then press
the
key.
Security Code
Enter the correct code to access the setup level.
[0 to 9999]
Level 1
Note. To select to this frame from anywhere in
this page, press the
key for a few seconds.
