ABB COMMANDER 150 - Setup Level (Level 2)

14
8
200.2
A1.hP
100.1
A2.LP
LEVEL2
•1
•1
A1. HYS
12.5
A2. HYS
27.9
A3.hP
•2
•2

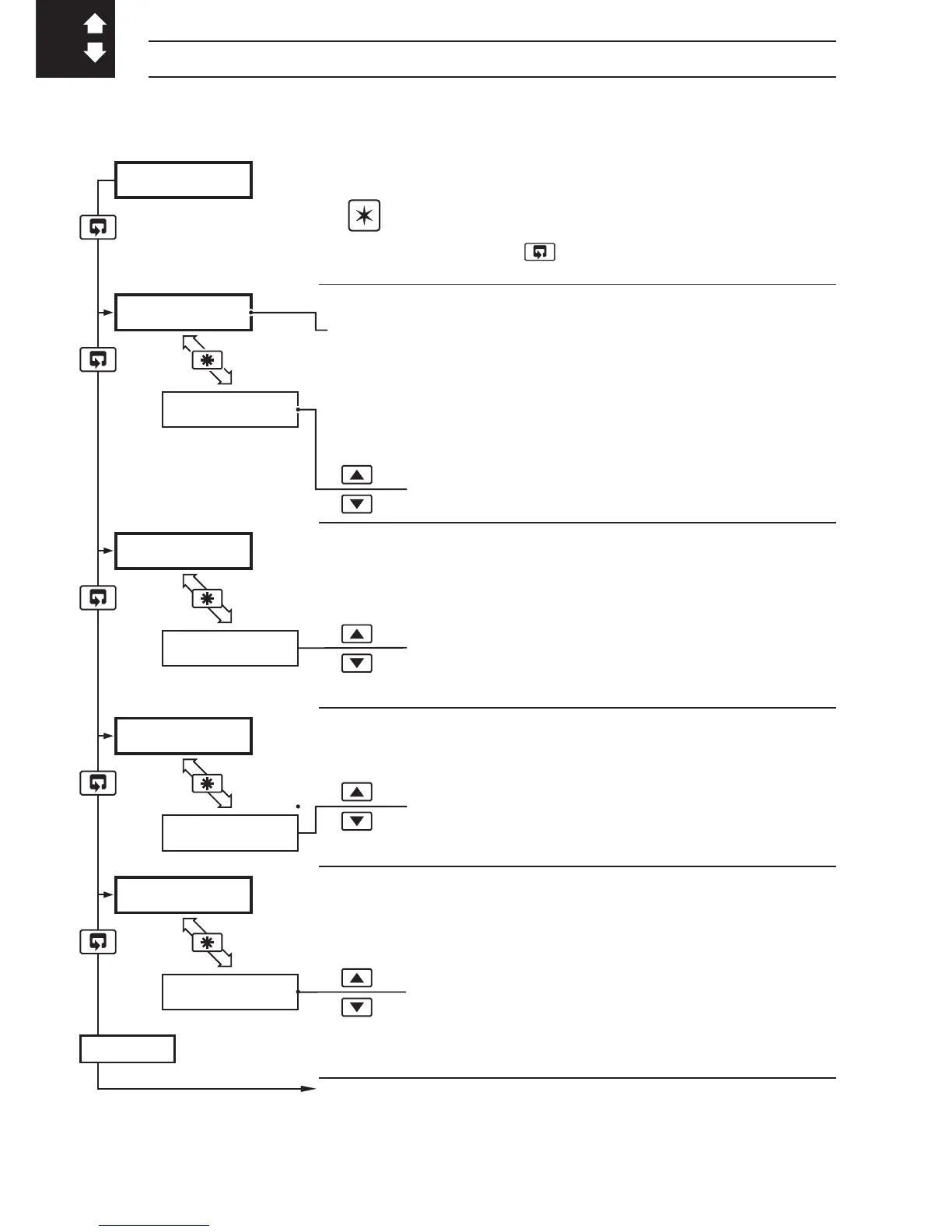

…3 SET UP MODE
3.2 Setup Level (Level 2)
Level 2
Note. To select to this frame from anywhere in
this level, press the
key for a few seconds.
Alarm 1 Trip Point
Alarm type:
A1.hP = High process alarm
A1.LP = Low process alarm
A1.HL = Latched high process alarm
A1.LL = Latched low process alarm
[In engineering units]
Alarm 1 Hysteresis Value
[In engineering units]
Alarm 2 Trip Point
Alarm type
[In engineering units]
Alarm 2 Hysteresis Value
[In engineering units]
Continued on next page.
•1 Not displayed if the alarm is disabled (
None selected) – see Section 4.3.2.
•2 Only displayed if custom alarm hysteresis is selected – see section 4.3.2
