…4 CONFIGURATION MODE

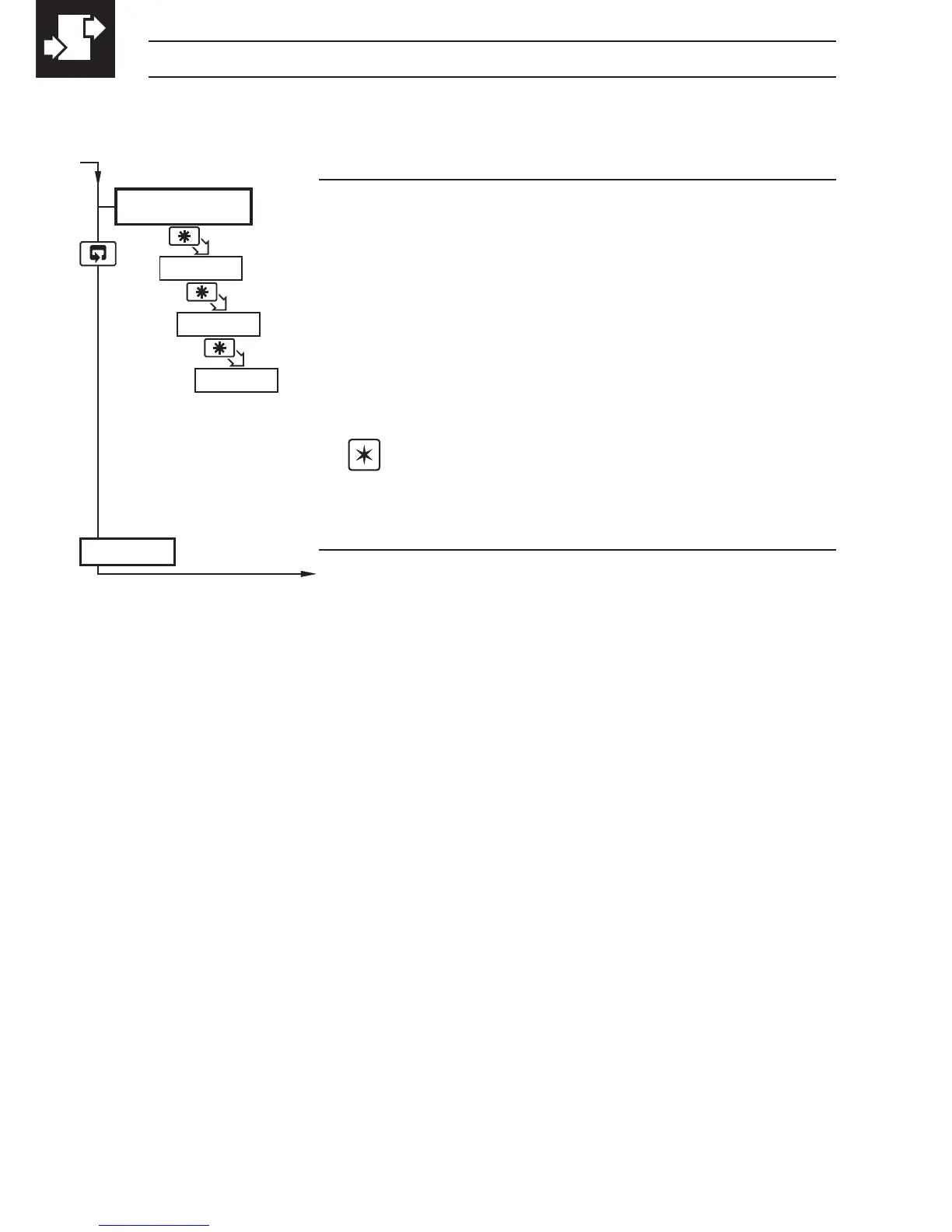

4.3.3 Operator Functions and Totalizer Set Up – Fig. 4.6

'JKLN' Settings

The first character (

J, K, L or n) identifies the parameter

to be changed. The current setting is indicated by a

flashing letter. Parameter options are shown in Fig. 4.6.

J = Totalizer set-up

K = No. of decimal places for totalizer

L = Operator level frame enable

n = Operator level functions enable/disable

Note. For custom settings contact the local

distributor.

Continued on page 26.
