…4 CONFIGURATION MODE

4.4 Ranges and Passwords (Level 4)

•1 The engineering range high and low values are automatically set to the maximum

allowed value when thermocouple or RTD is selected in the configuration level –

see Section 4.3.1. This value can be modified if required.

Level 4

Note. To select to this frame from anywhere in

this level, press the

key for a few seconds.

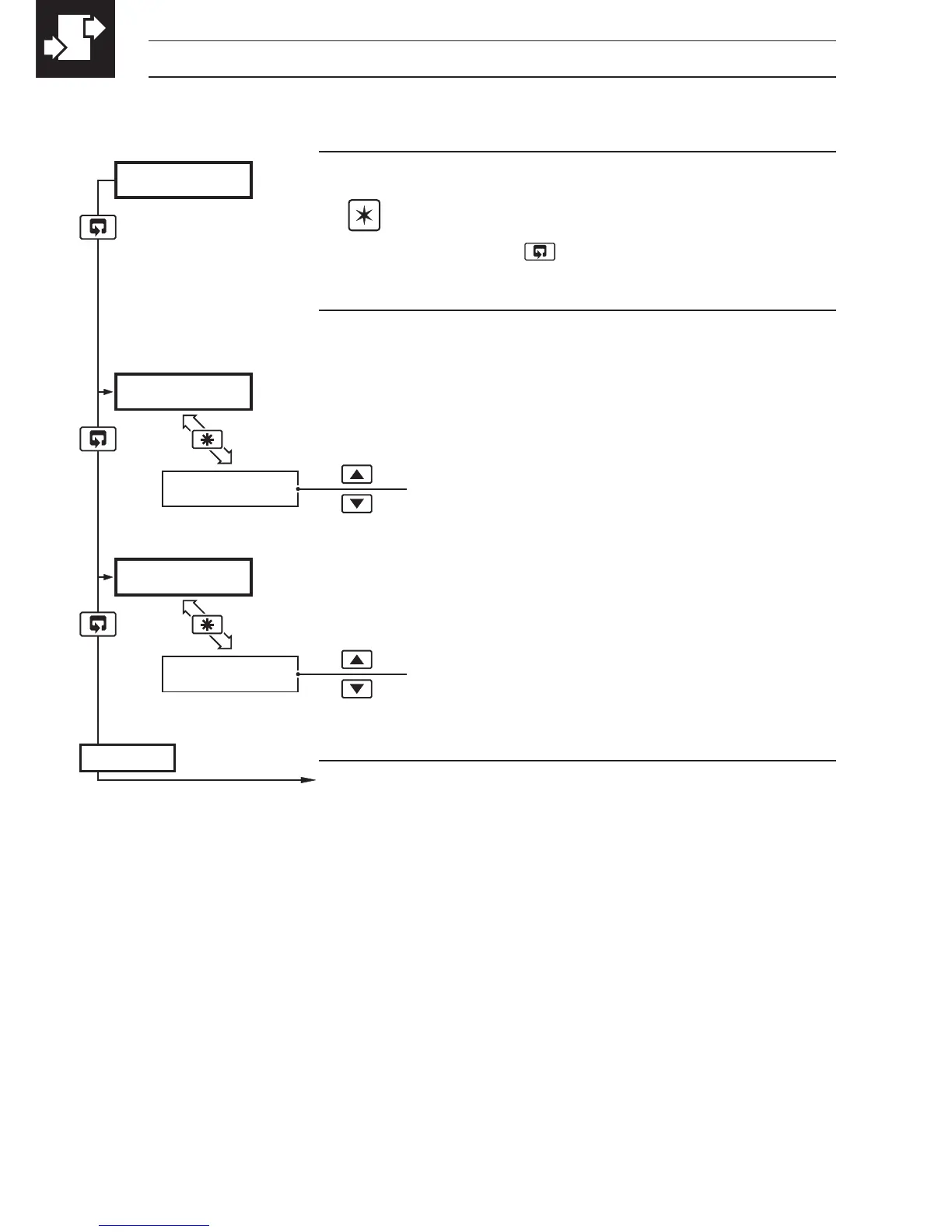

Engineering (Display) Range

High Value

[–9999 to 99999]

Low Value

[–9999 to 99999]

Continued on next page…
