22
Trip point
Alarm on
Alarm off
Alarm on
Alarm off
High Process
Low Process
Hysteresis
Hysteresis
Process
Variable
F 0000
E 0000
G 0000
H 0000
J 0000
…4 CONFIGURATION MODE
'EFGH' Settings
The first character (
E, F, G or H) identifies the parameter
to be changed. The current setting is indicated by a
flashing letter. Parameter options are shown in Fig. 4.5.
E = Alarm 1 type
F = Alarm 2 type
G = Alarm 3 type
H = Alarm hysteresis
Note. For custom settings contact the local
distributor.
Continued on page 24.

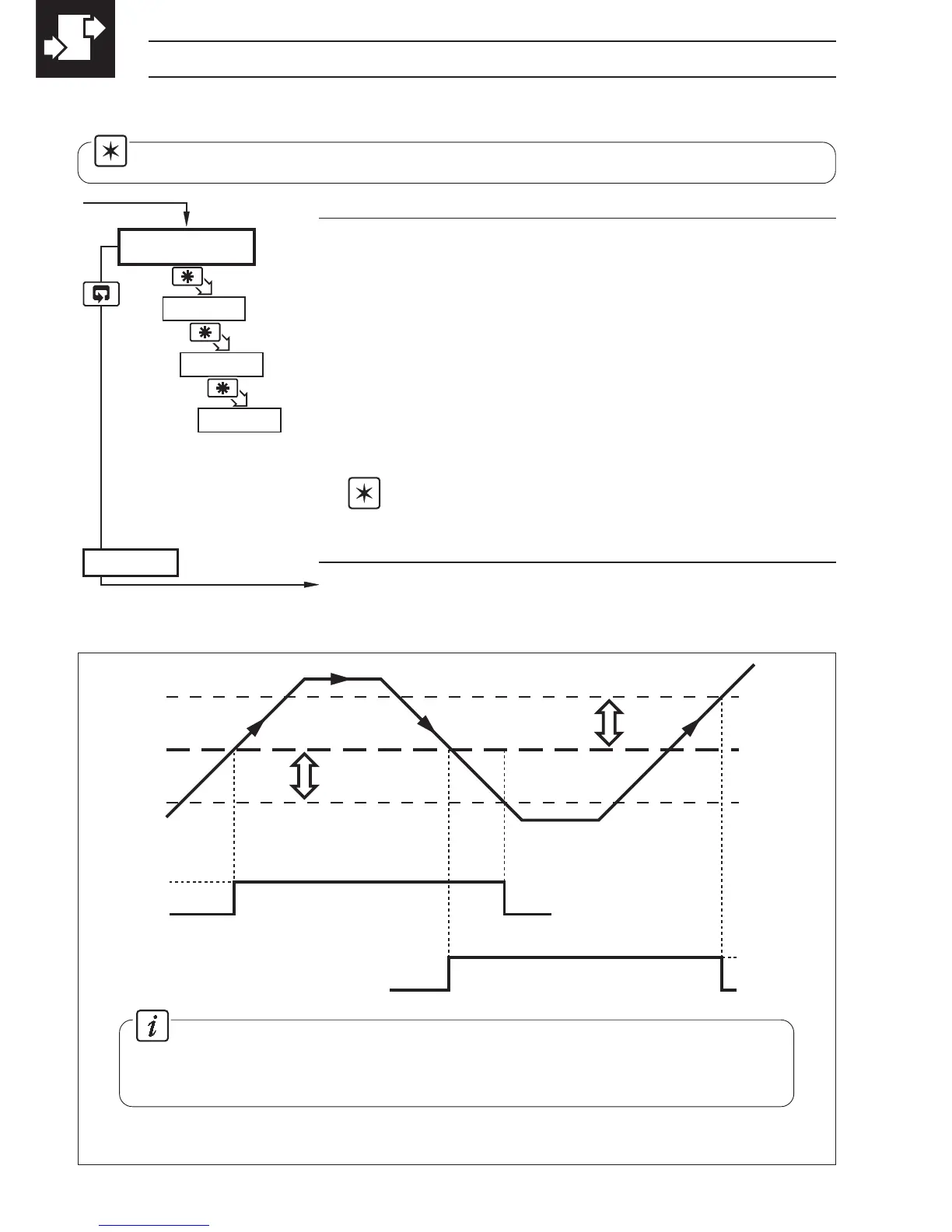

Fig. 4.4 Alarm Action
Information.
For latch alarms the relay remains de-energized until acknowledged in
Level 1 (or by a digital input).
4.3.2 Alarms – Figs. 4.4 and 4.5
Note. Relays assigned to alarms are de-energized in the alarm state.
