ABB COMMANDER 150 - Set Up Mode; Setup Level (Level 2)

13
8
LEVEL1
LEVEL2
A1xx
A2xx
A3xx
123456
t-GO
SEC.tot
PrESEt
PrEdEt
A xxxx
H xxxx
L xxxx
0AdJ
Level 2 – Set Up
Alarm 1 Trip Point
Alarm 2 Trip Point
Alarm 3 Trip Point
Batch Total
Totalizer Stop/Go
Secure Total/Reset
Preset Batch Total
Predetermined Batch
Total
Average Value
Maximum Value
Minimum Value
Offset Adjustment
Security
Code
Level 1 –
Operating Level
Correct
Password
CodE x
3 SET UP MODE

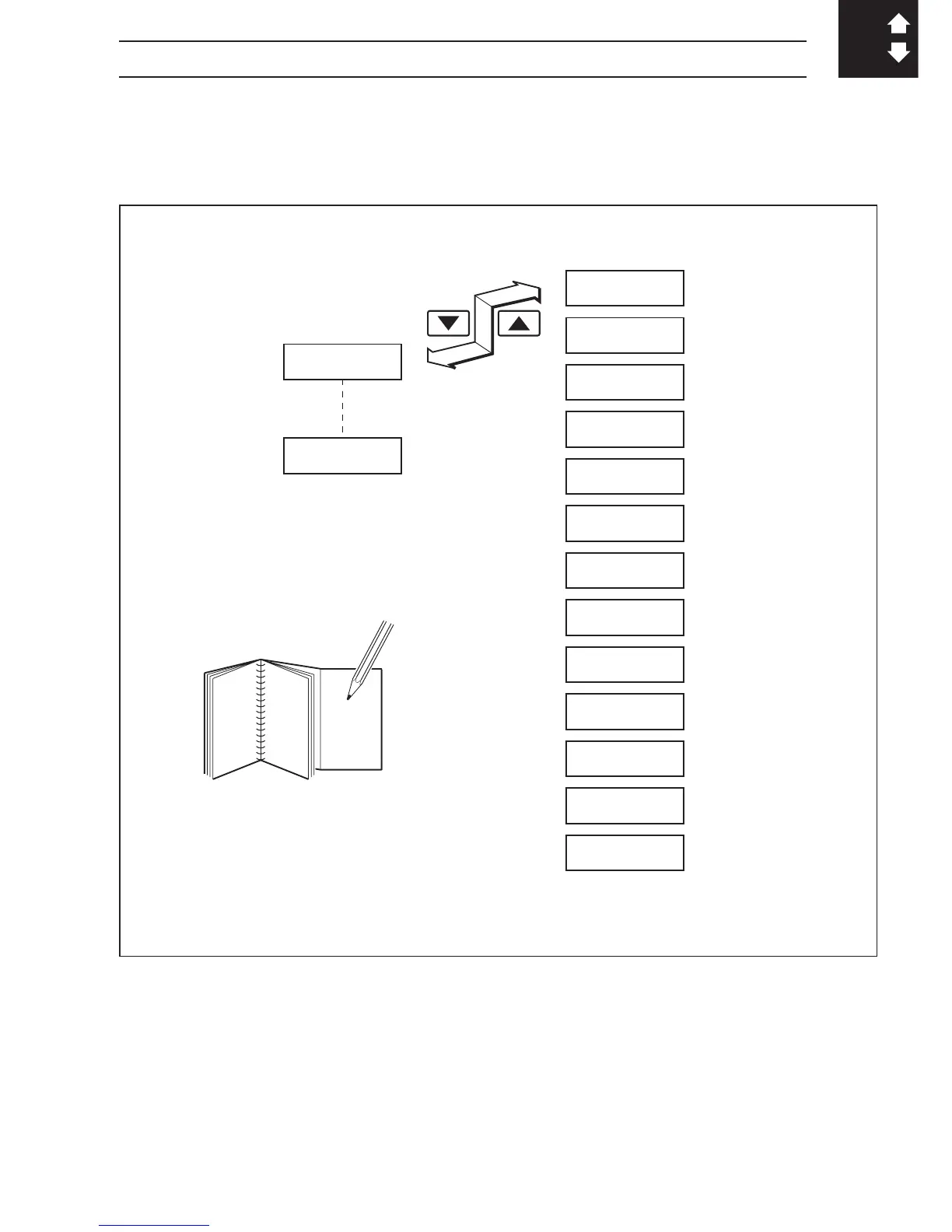

Fig. 3.1 Accessing the Setup Level (Level 2)
3.1 Introduction
To access the Setup Level (Level 2) the correct password must be entered in the
security code frame (
CodE) in Level 1– see Fig. 3.1.
