Cut a suitable hole in the panel (see Fig. 5.3)
Insert the instrument into the panel cut-
out
Fit the retaining clamp
over the instrument
case
Push the retaining clamp firmly
against the panel
1
2
3
4
…5 INSTALLATION

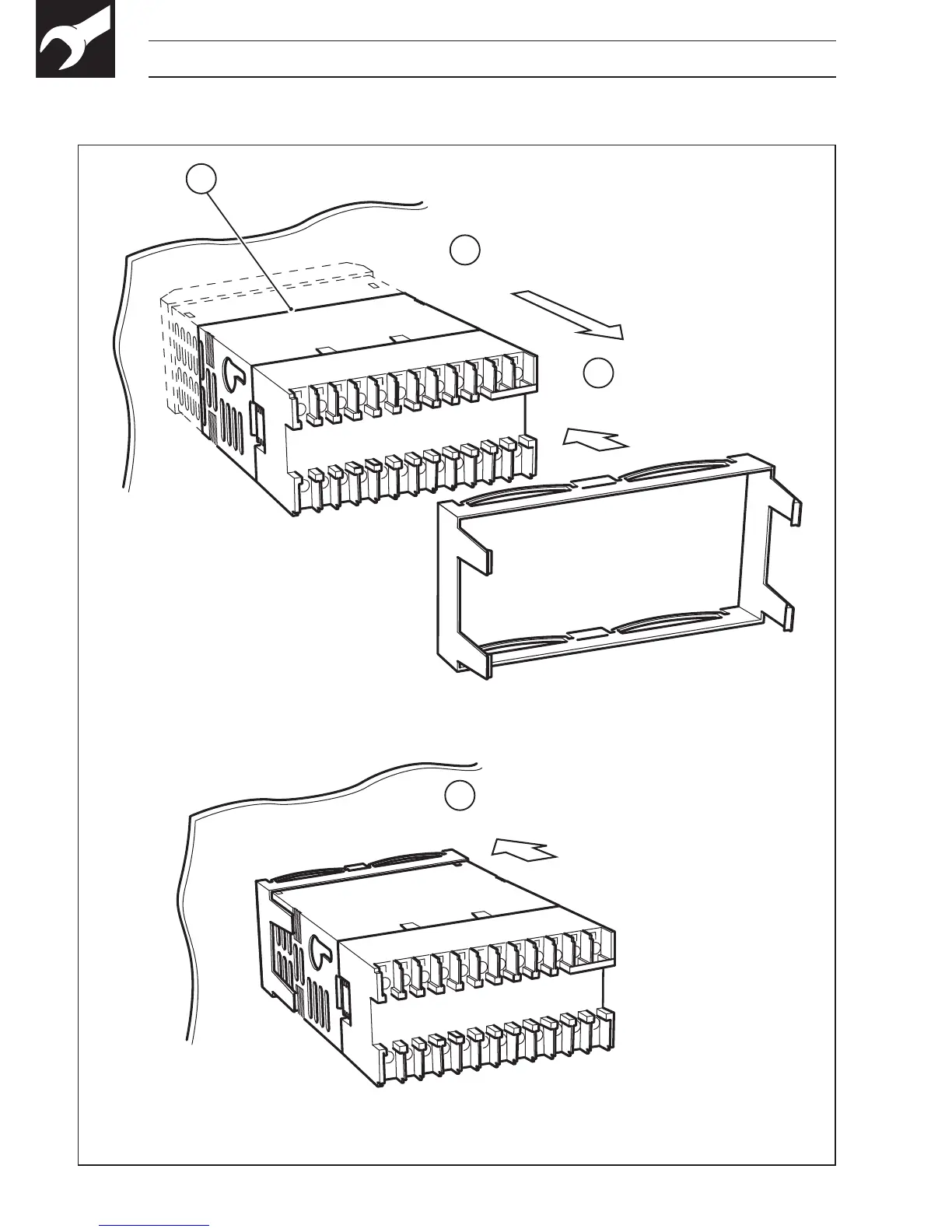

Fig. 5.4 Mounting Details
…5.2 Mounting – Figs. 5.3 and 5.4
