36 EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. C
… 3 Preparation for Installation
… Dimensions

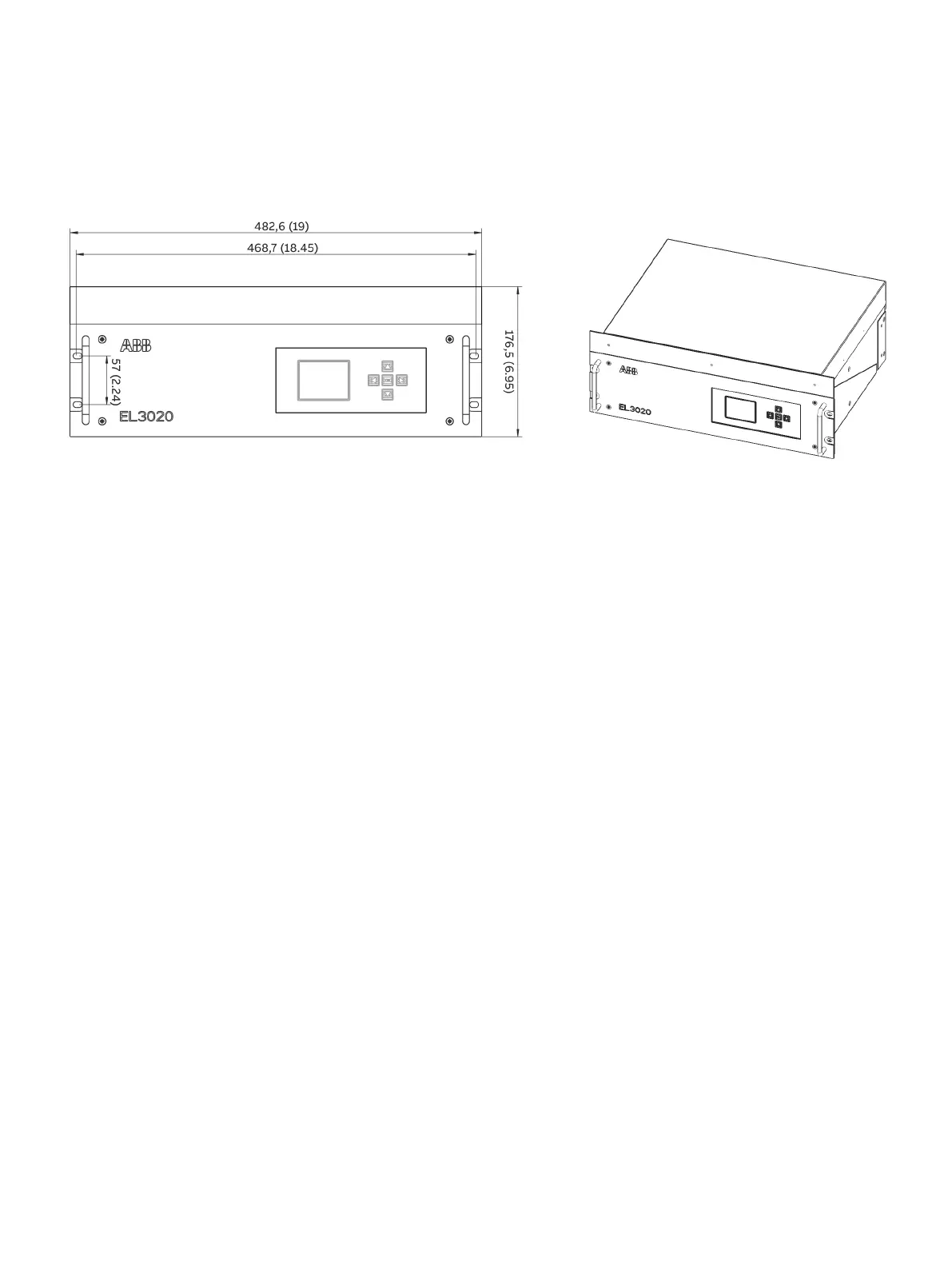

19” housing (model EL3020 with Magnos27)
Dimensions in mm (in)
Figure 3: 19″housing (model EL3020 with Magnos27)
Note
Only the front view of the housing (with its height differing from the standard dimension) is depicted in this dimensional drawing.
Additional views and dimensions of the 19” housing are shown in Figure 2.
