EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. C 37

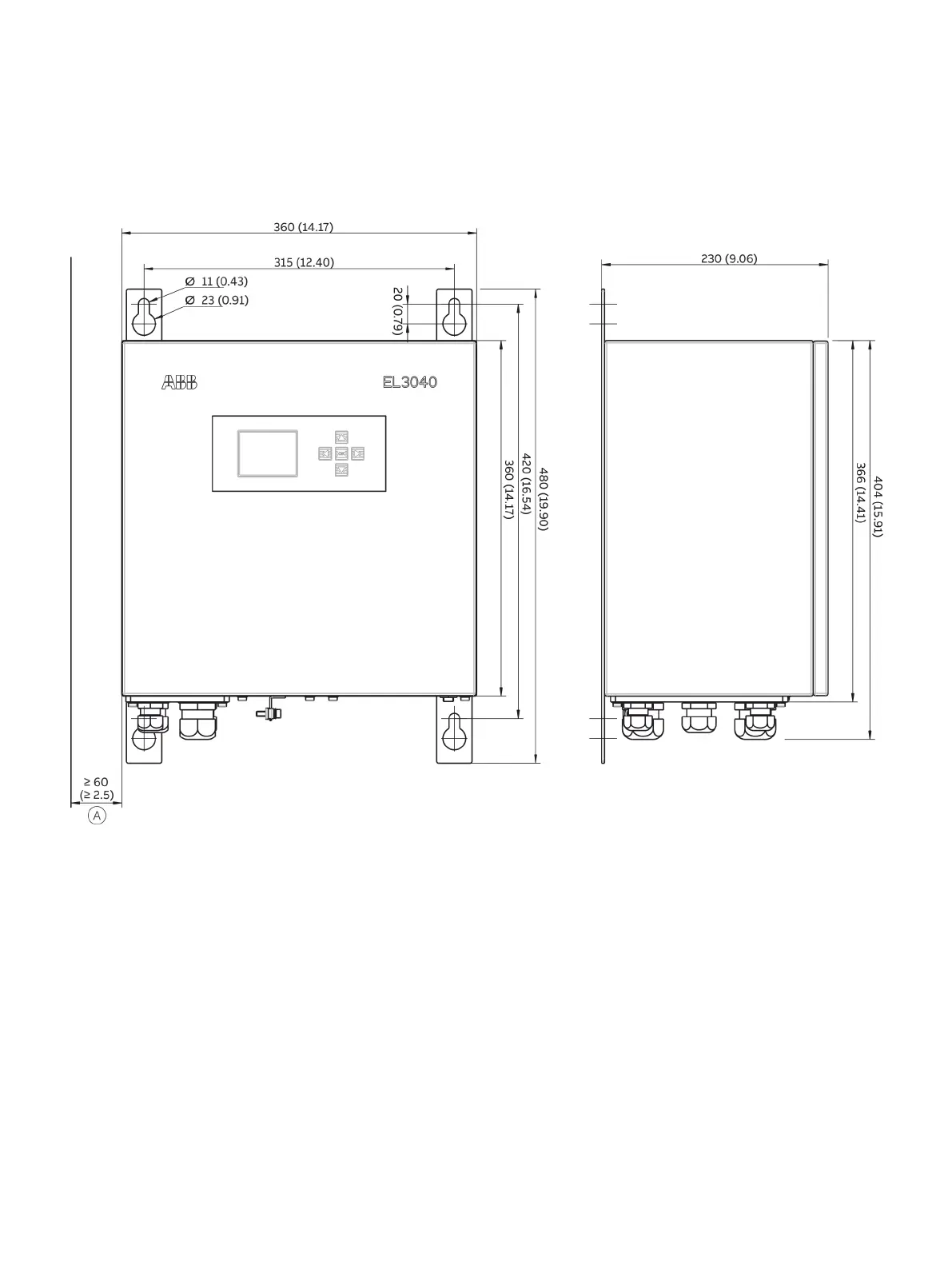

Wall-mount housing (model EL3040)
Dimensions in mm (in)
A
Consider free space to swivel the door
Figure 4: Wall-mount housing (model EL3040)
