Gas connections Uras26 (model EL3020)

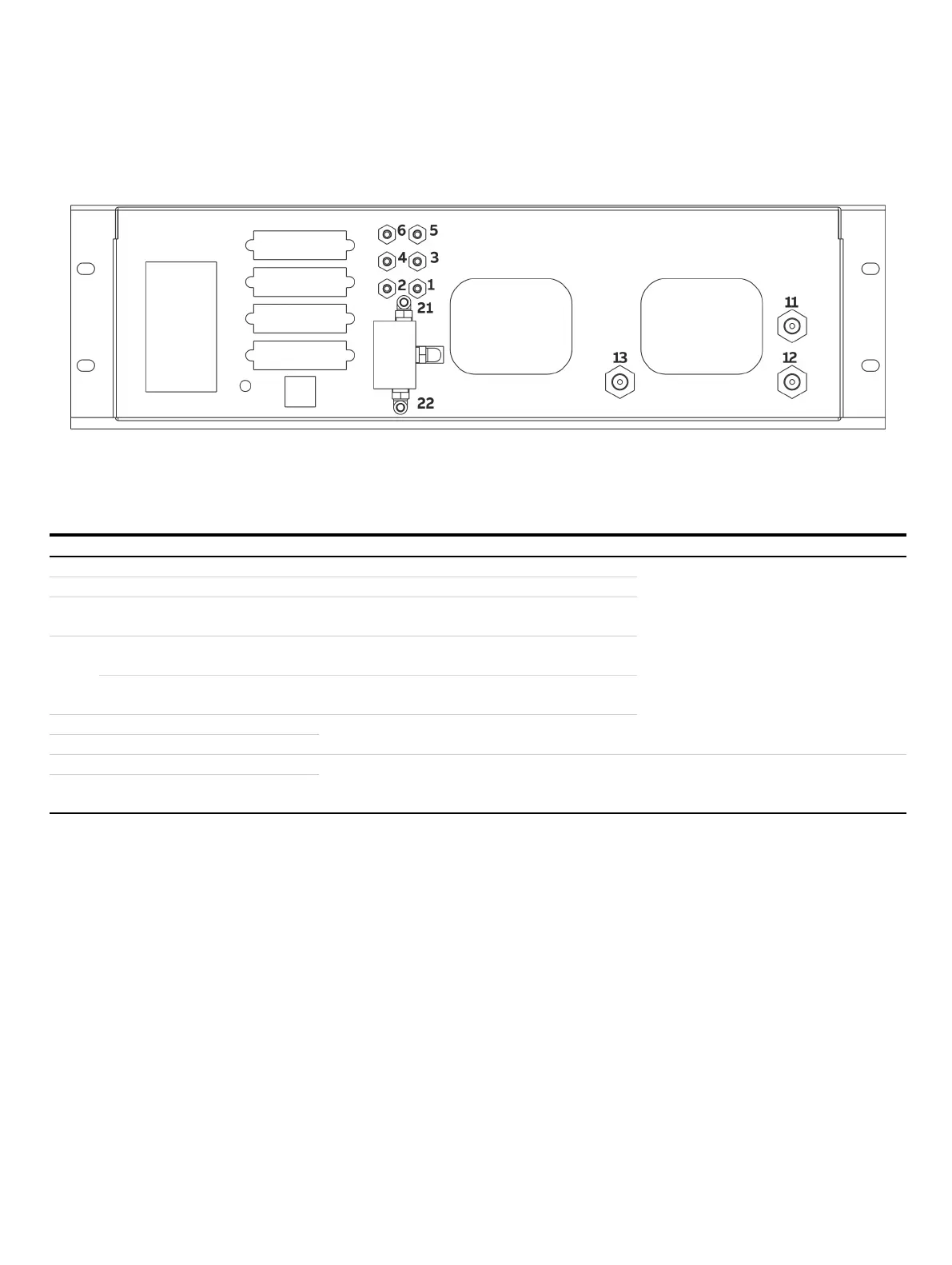

Figure 5: Gas connections Uras26 (EL3020)
Uras26: Gas connections for hose lines
(internal gas lines made using hoses)
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet (gas path 1)
Without ‘integrated gas feed’ option
Screwed connections with hose nozzles (stainless
steel
1.4305) for hoses with 4 mm inside diameter
(included in scope of supply)
2
Sample gas outlet (gas path
1)
—
3
Sample gas outlet (gas path
1)
For ‘Integrated gas feed’ option,
factory-connected to
sample gas inlet Pos. 1 (gas path 1)
4
Sample gas inlet (gas path
1)
For ‘Integrated gas feed’ option with flow sensor only
(without
solenoid valve)
Pressure sensor
For ‘Pressure sensor connected to the outside by hose’
option
5
Sample gas inlet (gas path
2)
For second sample gas or flowing reference gas, sample cell
1 (depending on the design of the analyzer)
6
Sample gas outlet (gas path 2)
21
Sample gas inlet (gas path
1)
On solenoid valve with
‘integral gas feed’ option with
solenoid valve, pump, filter, capillary and flow sensor
Screwed fittings with hose nozzles
(PVDF) for
hoses with
4 mm inside diameter
(included in scope of supply)
22
Test gas inlet (gas path
1)
Note
The pressure sensor (standard, not for the ‘pressure sensor connected to outside by hose’ option), and the oxygen sensor (option)
are internally connected as follows:
• In the output of the measuring cell 1, with a measuring cell and in the case of separate gas paths.
• In the output of measuring cells 2 for two measuring cells in series.
• The second O2 sensor (option for version with separate gas paths) is connected downstream of the sample cell 2 outlet.
