EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. C 69
Gas connections Magnos28 with Magnos28 (model EL3020)

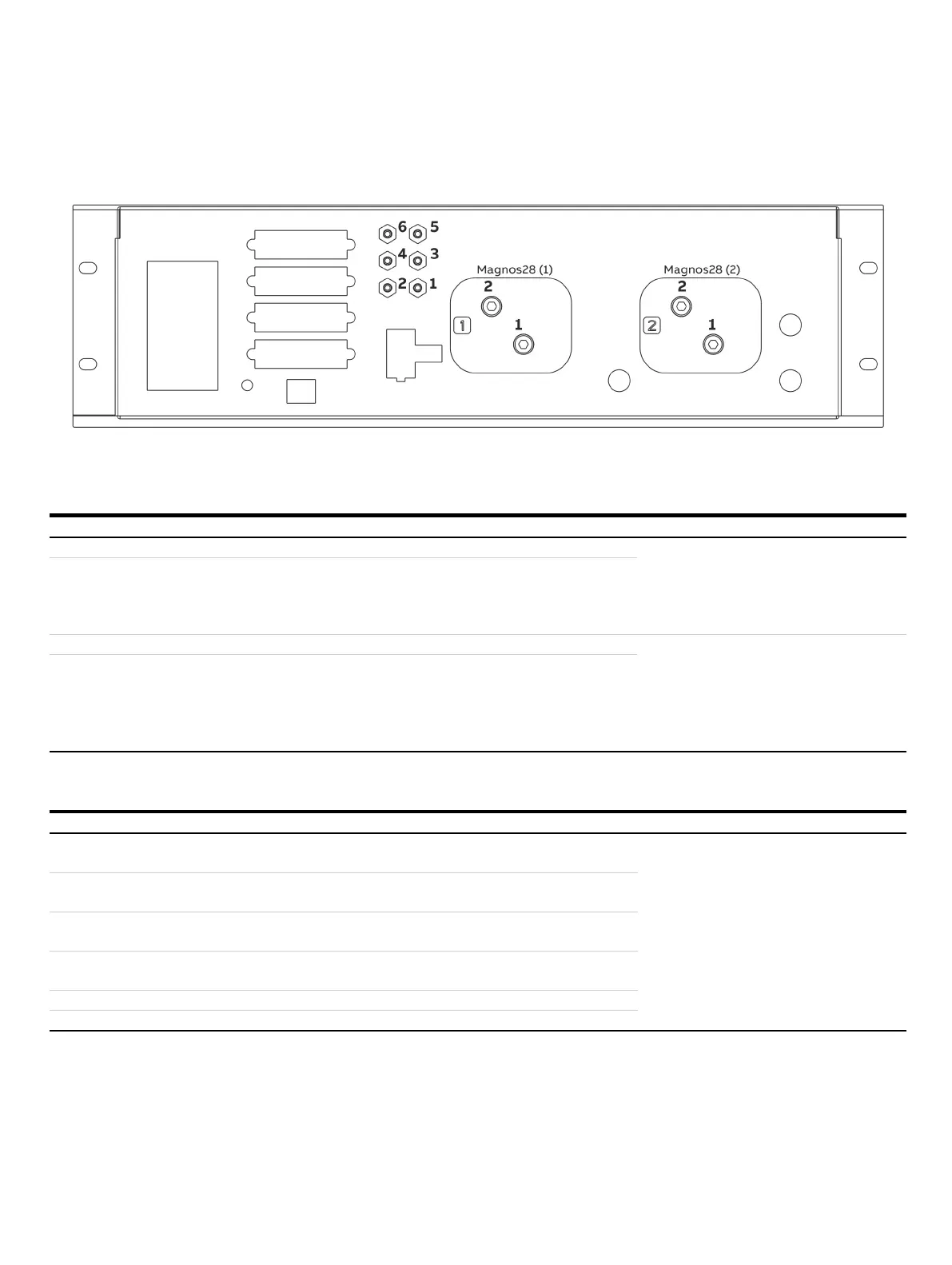

Figure 22: Gas connections Magnos28 with Magnos28 (model EL3020)
Magnos28 – gas connections for direct connection (applies to both analyzer modules)
Supplementary information
⅛ NPT female thread (stainless steel 1.4305)
Connection of hose lines:
-
in socket (PP) with hose nozzles for
hoses with inside diameter
4 mm
(included in scope of delivery)
For analyzer module (2), not for flammable sample gases
Screwed connections with hose nozzles (stainless
steel
1.4305) for hoses with 4 mm inside diameter
(included in scope of supply)
analyzer module (1). For flammable sample gases:
Common sensor for analyzer module (1) and analyzer
module (2).
Do not connect the pressure sensor in the sample
Magnos28 with Magnos28 – gas connections with ‘Integral gas feed’ option with flow sensor
Supplementary information
-connected to analyzer module (1) sample gas
Screwed connections with hose nozzles (stainless
steel
1.4305) for hoses with 4 mm inside diameter
(included in scope of supply)
1 / module 1)
-connected to analyzer module (2) sample gas
2 / module 2)
(1)
