ABB EasyLine EL3000 Manual

70 EL3000 CONTINUOUS GAS ANALYZERS | CI/EL3000-EN REV. C
… 4 Installation
… Position and design of the gas connections
Gas connections Magnos28 with Caldos27 (model EL3020)

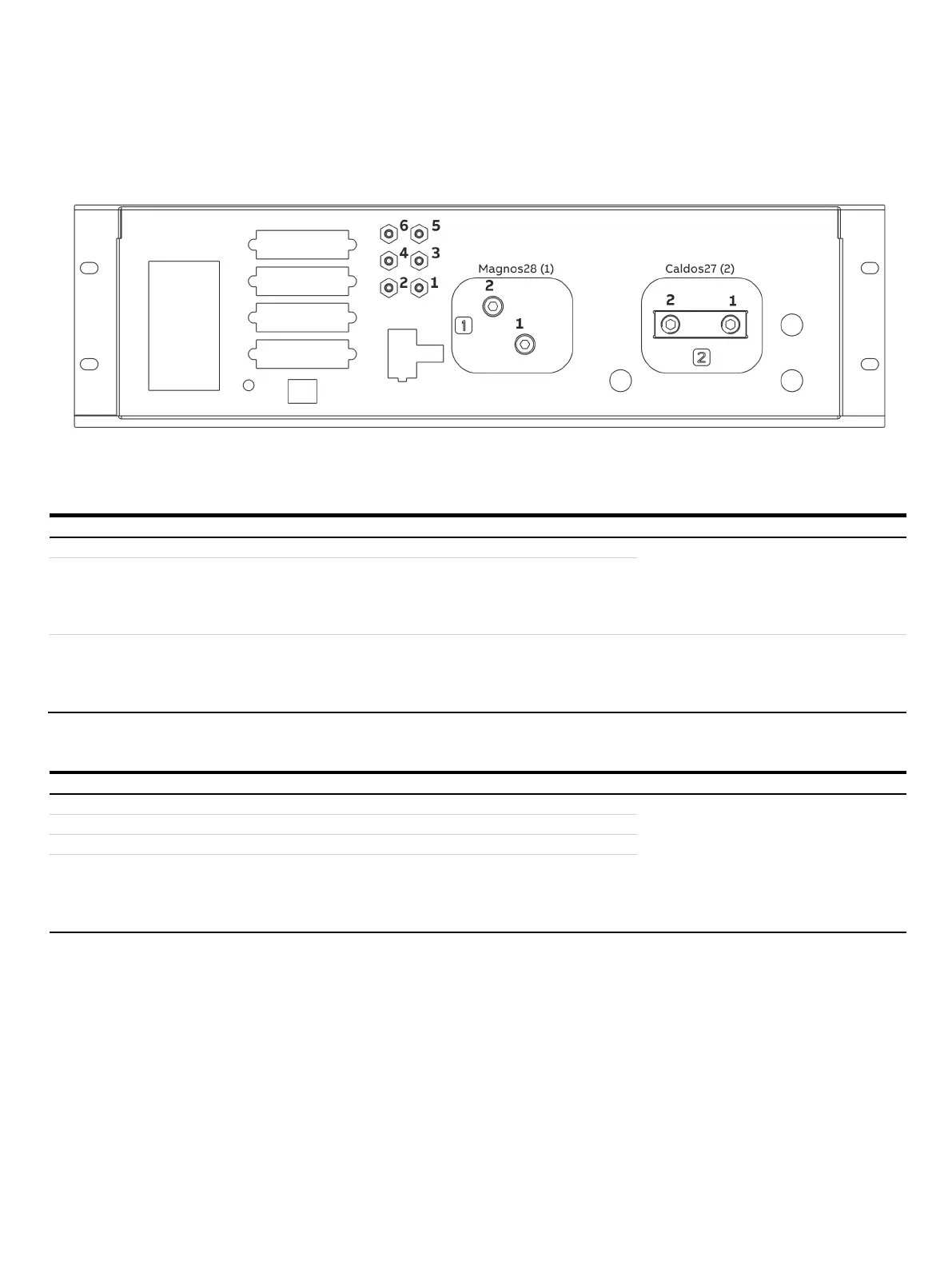

Figure 23: Gas connections Magnos28 with Caldos27 (model EL3020)
Magnos28 – gas connections for direct connection
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
—
⅛ NPT female thread (stainless steel 1.4305)
Connection of hose lines:
straight screw
-
in socket (PP) with hose nozzles for
hoses with inside diameter
4 mm
(included in scope of delivery)
2
Sample gas outlet
—
6
Pressure sensor (option)
For flammable sample gases: common sensor for
Magnos28 and Caldos27.
Caution
Do not connect the pressure sensor in the sample
gas path!
Screwed connections with hose nozzles (stainless
steel
1.4305) for hoses with 4 mm inside diameter
(included in scope of supply)
Caldos27 – gas connections for direct connection
Pos.
Connection
Supplementary information
Version
1
Sample gas inlet
—
⅛ NPT female thread (stainless steel 1.4305)
Connection of hose lines:
straight screw
-
in socket (PP) with hose nozzles for
hoses with inside diameter
4 mm
(included in scope of
delivery)
2
Sample gas outlet
—
5
Pressure sensor
Not for flammable sample gases
6
Pressure sensor
For flammable sample gases: common sensor for
Magnos28 and Caldos27.
Caution
Do not connect the pressure sensor in the sample
gas path!
