48 EL3060 CONTINUOUS GAS ANALYZERS | OI/EL3060-EN REV. A
Operating the gas analyzer
NOTE
All the illustrations of the displays in this operating instruction are examples.
The displays on the gas analyzer will normally differ from these.

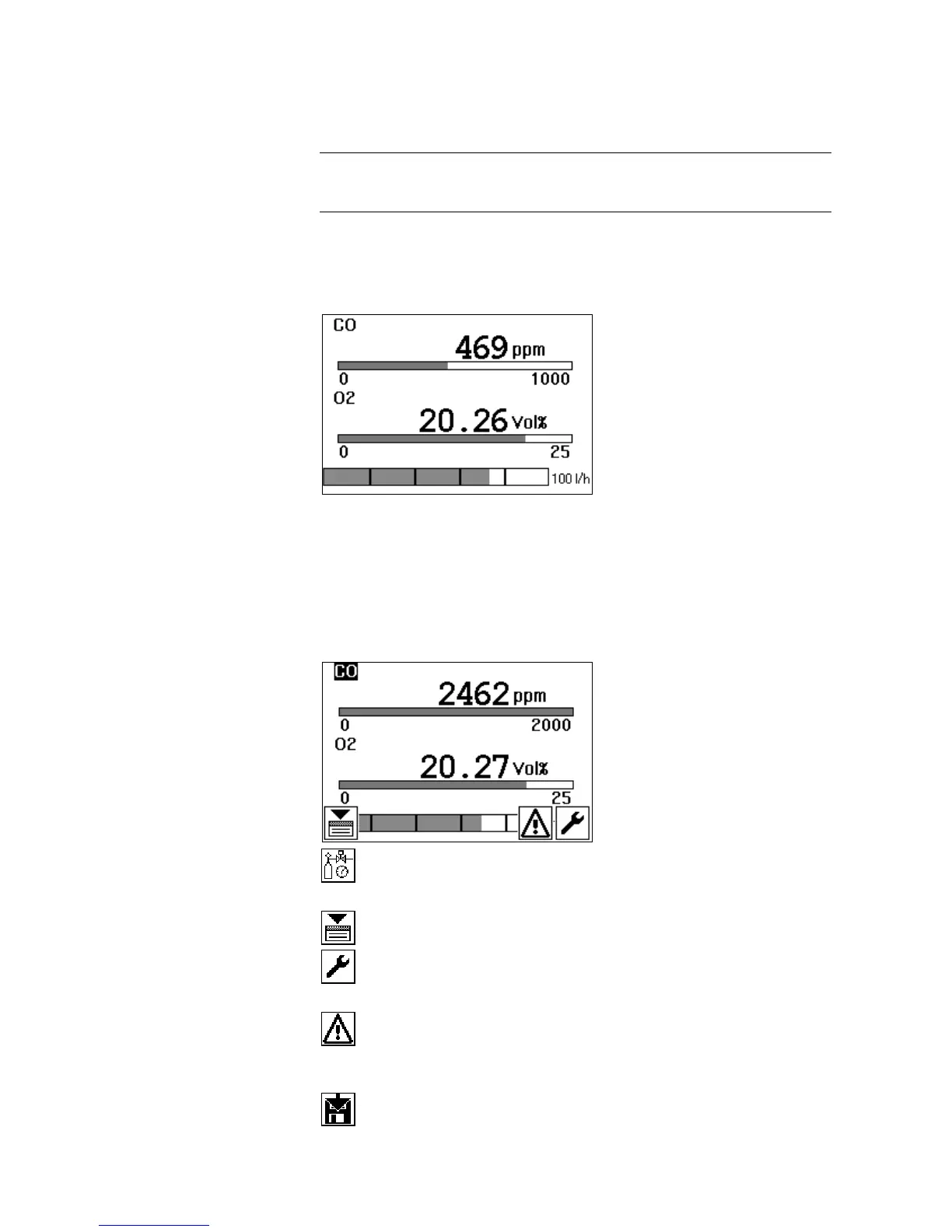

Display – Measuring mode
Display in measuring mode
In measuring mode, the screen displays the name, the measured value in
numerals and the physical unit of the measured value for each sample com-
ponent.
If the display of the name of the sample components flashes alternately with
the inverted display, this signals that the measured value exceeds the meas-
uring range limits.
Status icons
An automatic calibration (see page 62) is executed.
The icon also appears in the menu title line in menu mode (see
page 50).
A status message (see page 132) is active.
The status signal (see page 130) "Maintenance request" is active.
The icon also appears in the menu title line in menu mode (see
page 50).
The status signal (see page 130) "Error" is active or the mainte-
nance switch (see page 118) has been set to "On".
The icon is blinking. The icon also appears in the menu title line in
menu mode (see page 50).
The configuration is being saved. The icon is blinking.
Do not switch off the power supply of the gas analyzer when the
icon is displayed!
