ABB EC Titanium Series - Chapter B Options and Kits; Remote Keypad ECS100 L

Options and Kits B-1MN448
Chapter B
Options and Kits
Overview
This appendix gives details on the option kits and accessories available for the EC Titanium.

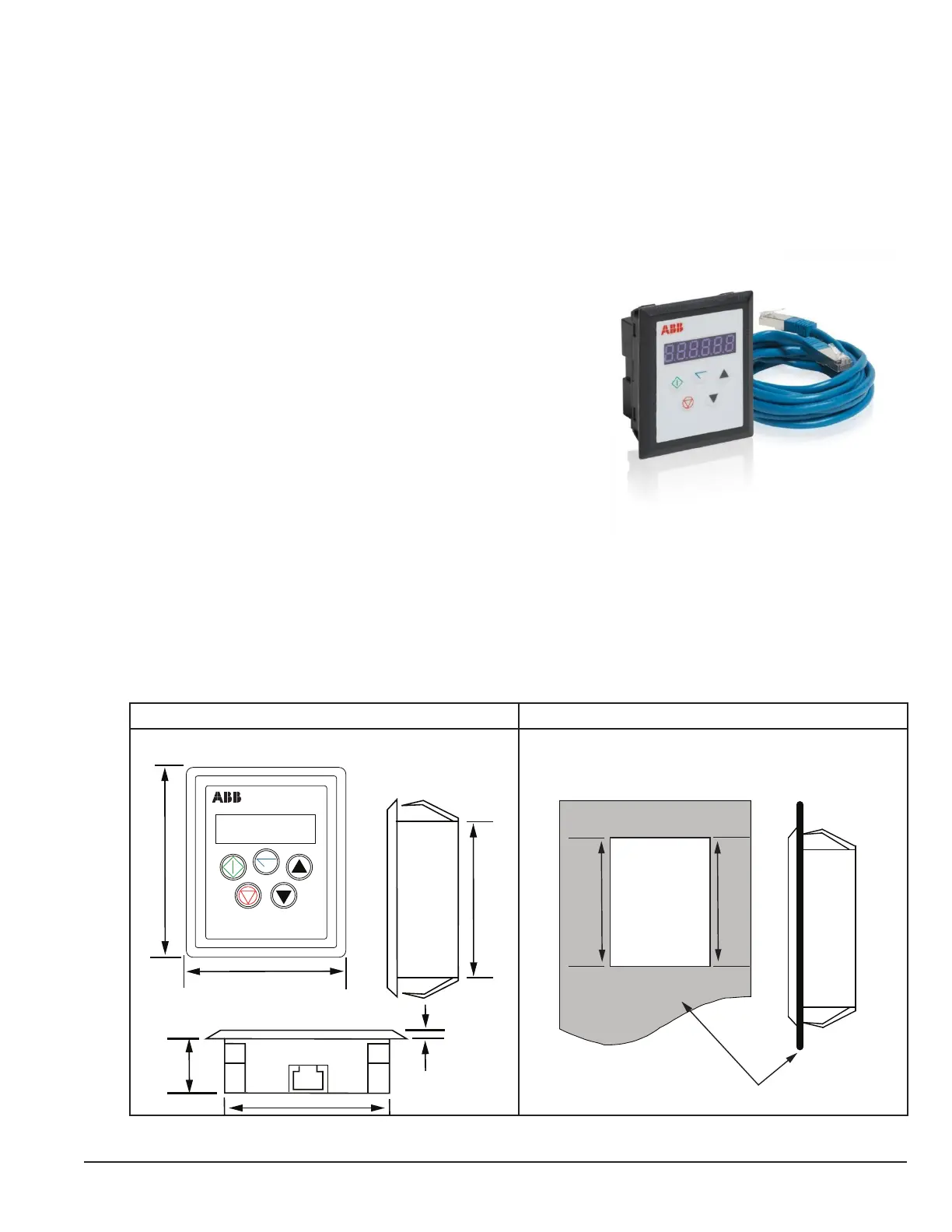

B.1 Remote Keypad ECS100L
The REMOTE PANEL is designed for programming and control of the
EC Titanium. Reference MN449 Remote Keypad Manual for detailed
information on mounting, wiring and installation of the remote keypad.
The kit comes with a 3-meter RJ45 cable.
Part Number Description
ECS100L EC Titanium Remote LED Keypad
MN449 ECS100L Remote Keypad Instruction Manual
General Specifications
Compatible Drives: EC Titanium
Signal Interface: Standard 6-way RJ45 connector
Supply Input: 10V … 36V DC, 30mA
RS485 signal: Industry standard 2-wire +5V differential
Environmental: Operational 0 … 50 °C
Storage -40 °C … 60 °C
Relative Humidity < 95% (noncondensing)
Protection rating: IP54
Max cable length: 20m (unscreened, total length)
100m (screened, twisted pair, total length
Dimensions Through Panel Mount
65
65
3
21
81
66
The panel on to which the REMOTE PANEL is to be
mounted should be cut out in accordance with the diagram
below.
Cut Out
70
55
Unit: mm
Panel
