Parameter Navigation and Groups 8-1MN448
Chapter 8
Parameter Navigation and Groups
This section provides an overview of how to access and change drive parameters. To monitor or change a parameter value
in the EC Titanium requires either the Remote Keypad described in Chapter 6 or the PC Software Tools detailed in this
section.
8.1 Parameter Structure

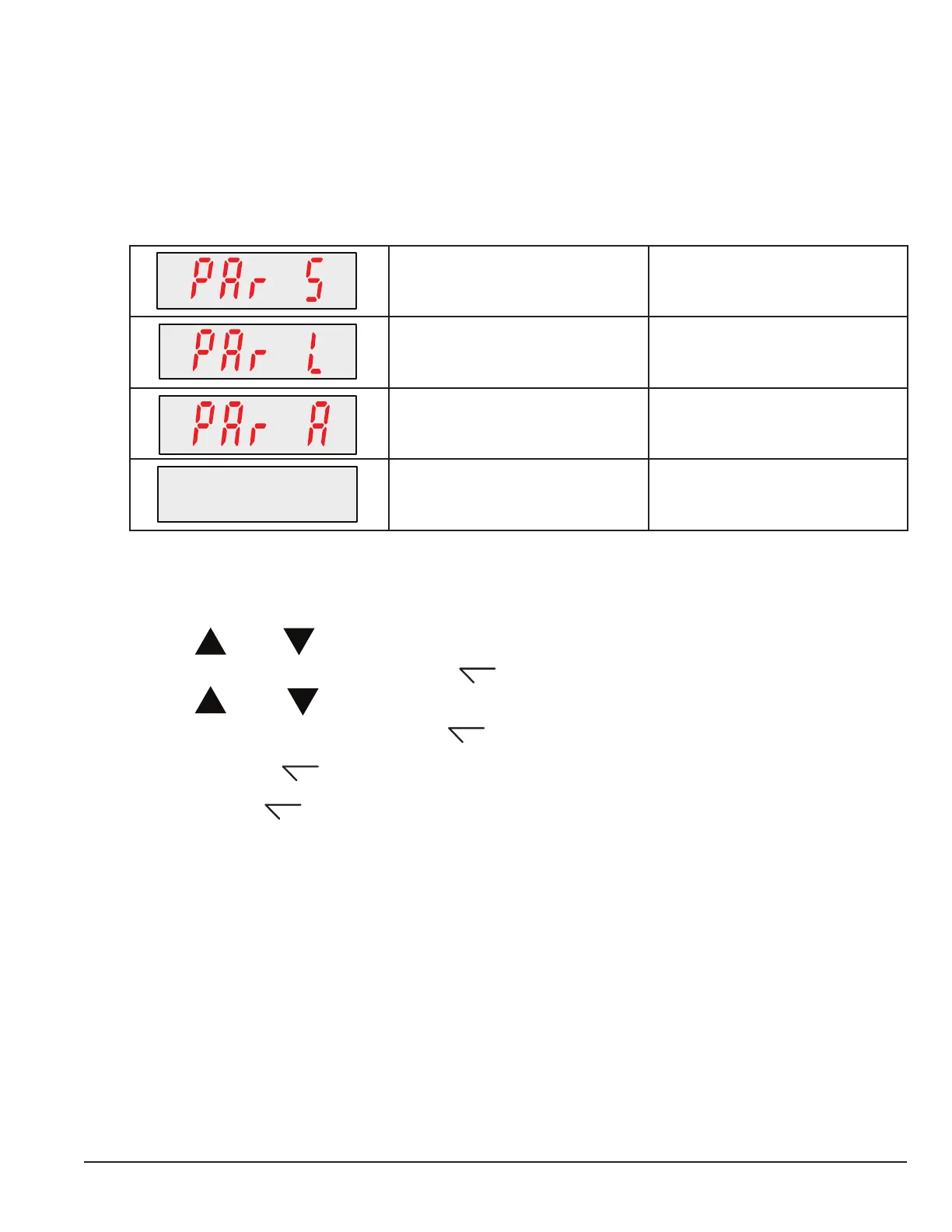

The parameters are arranged in Groups according the to the following structure.
Short Parameter Group Basic Setup Parameters
Long Parameter Group
Sequential List all Parameters
Access to Display Group
Advanced Group Advanced Motor Control
Read Only Display Group Parameter 0000 Par L Group
8.2 Parameter Navigation
• Press and hold the NAVIGATE key for more than 1 second when the drive is displaying SToP. The display changes to
PAr 5, indicating the short (S) parameter group.
• Use the (Up) and (Down) keys to select between the S, L or A parameter groups.
• To enter a parameter group, press and release the (Navigate) key while the group letter is ashing.
• Use the (Up) and (Down) keys to change to the desired parameter number.
• To change parameter values, press and hold the (Navigate) key then use the Up and Down Keys to change to the
required value.
• Press and release the (Navigate) key once more to store the change.
• Press and hold the (Navigate) key for more than 1s to return to real-time mode. The display shows SToP if the
drive is stopped or the real-time information (e.g. speed, current or power) if the drive is running.
• To access Read Only Parameters, navigate to Par L Group and scroll to parameter 0000, then press and release the
navigate key.
