ABB EC Titanium Series - Hardware Connection; System Setup

Control Wiring and Keypad Interface 5-3MN448

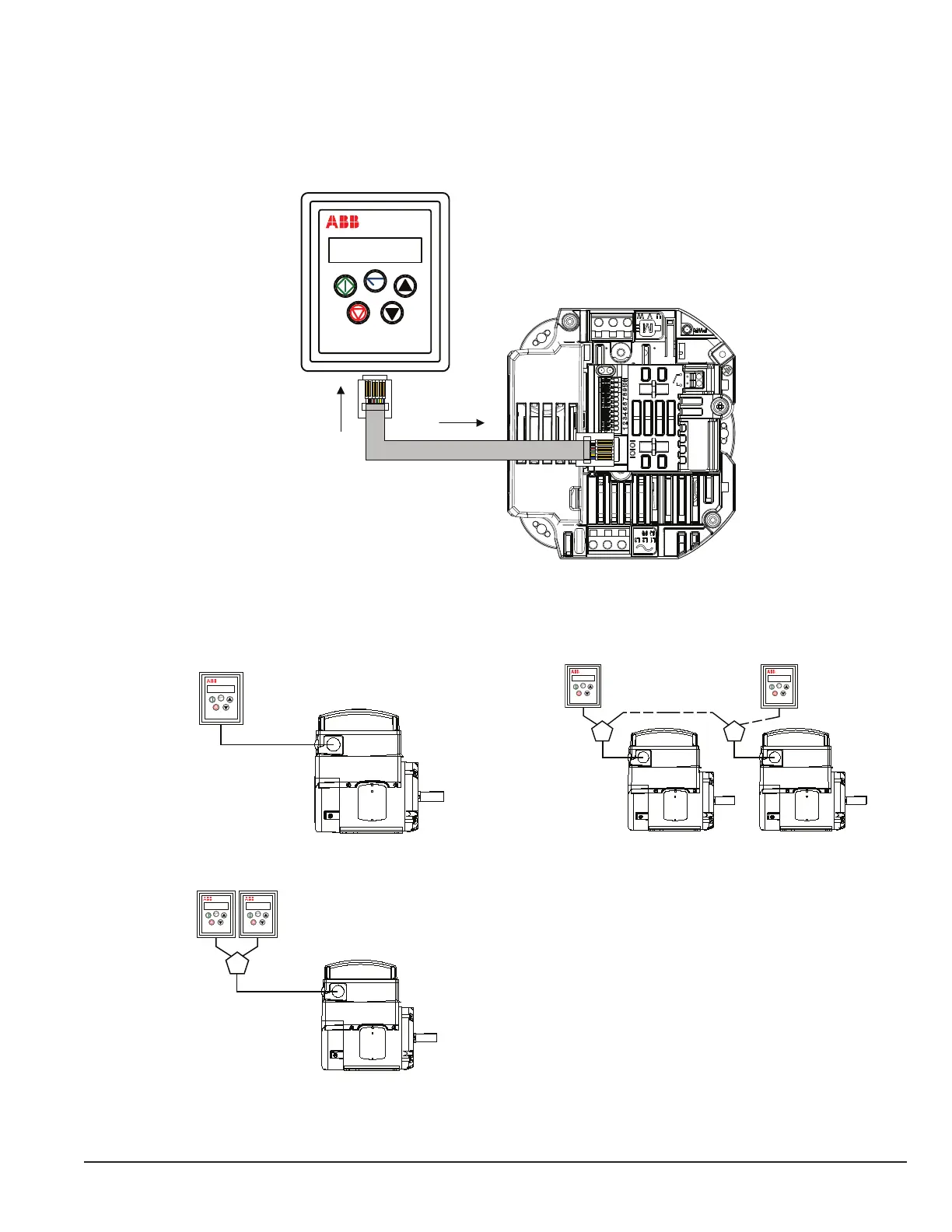

5.3.2 Hardware Connection
The EC Titanium provides the power supply to the REMOTE PANEL via the RJ45 connection. Once the physical connection
has been setup, the system is ready to operate. See picture blow:
5.3.3 System Setup
Depending on the requirement of the application, the REMOTE PANEL can be used in different congurations outline below:
(1) Remote Panel & (1) EC Titanium (1) or (2) Remote Panels & up to (63) EC Titanium
(2) Remote Panels & (1) (1) EC Titanium
Different drive models can be used on the same Remote Panel network providing a unique communications address is
assigned to each. The Remote Panel uses a standard RJ45 6-Way connector as its electrical interface. A standard RJ45
Splitter can be used between the Keypad and multiple drives.
