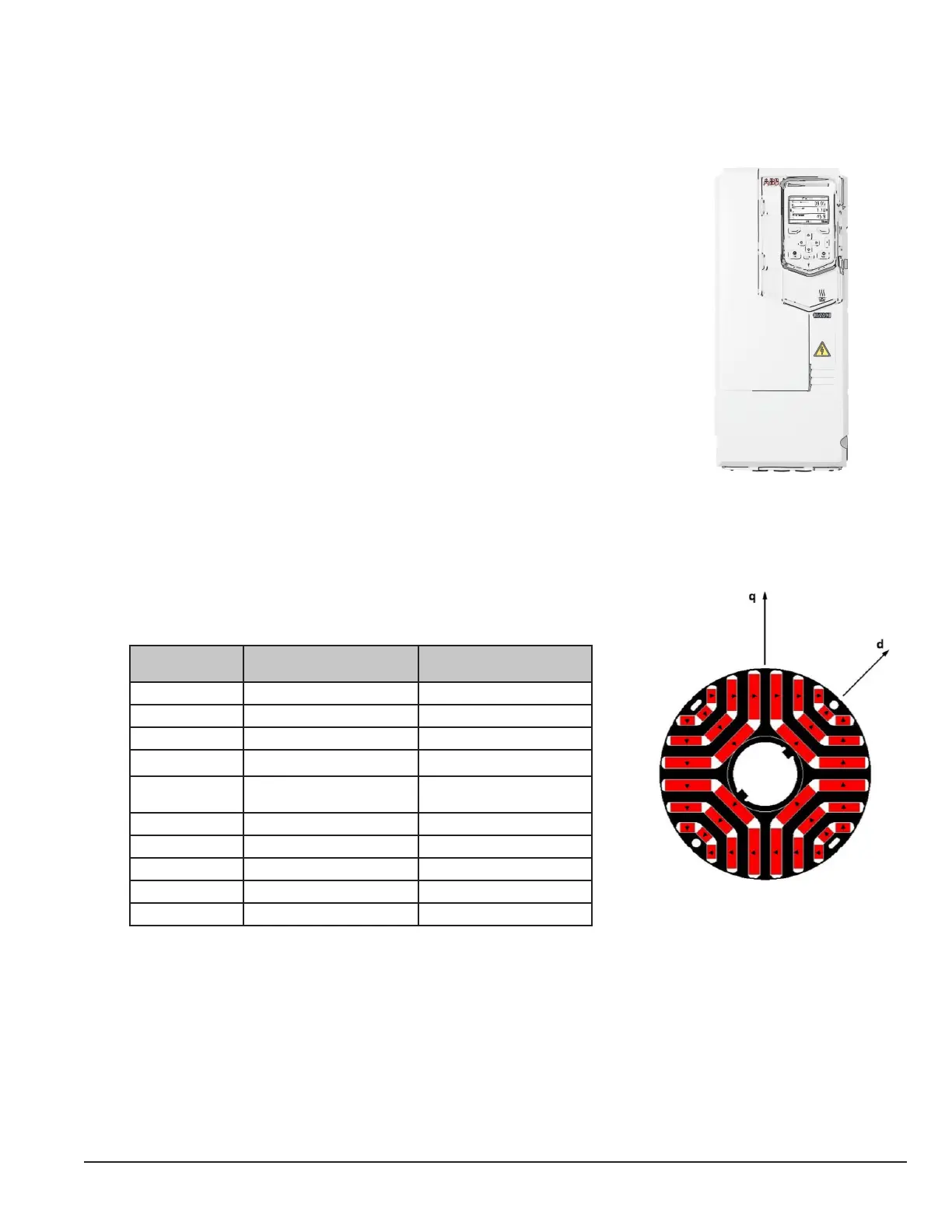

Standalone Motor and ABB Drive Setup 11-3MN448
11.3 ABB Drive Selection Guidelines
ABB Basic drive selection criteria apply with Permanent Magnet Synchronous
Motors. Select an ACH580 drive so that all criteria below are met:
1. Rated drive current I2N is de-rated by ambient, altitude and switching
frequency*
2. Motor rated current is less than or equal to the rated drive current I2N of the
drive
3. Maximum required motor current is below 1.5 x rated drive current
4. Maximum required motor current is suitable for drive overloading**
5. Average required motor power is less than rated drive power PN
6. Maximum required motor power is less than 1.5 x rated drive power
7. Maximum required motor power is suitable for drive overloading**
* For drive de-rating see ABB User’s Manuals
** Maximum current with 110% overload allowed for one minute every ten
minutes Maximum current with 150% overload allowed for one minute every ten
minutes. ABB drives can supply maximum output current I2max for 2 seconds at
start.
11.4 Motor Setup Parameters with ABB Drives
The following parameters should be set based on nameplate data of the EC
Titanium™ Motor. It is important to accurately input these values for proper
motor control. The ACH580 ID run (Parameter 99.13) is used to setup motor
values for Resistance, Ld and Lq and these values are not required for startup.
ABB Drive
Parameter
Function Drive Setting
99.03 Motor Type Permanent Magnet
99.04 Control Mode Vector
99.06 Rated Current (A) Nameplate Value
99.07 Motor BEMF Voltage Nameplate Value
99.08 Motor Rated Frequency
(Hz)
Nameplate Value
99.09 Motor Speed Nameplate Value
99.10 Motor Rated Power (kW) Nameplate Value
99.13 (ID Run) Motor Resistance Rs Auto Tune
99.13 (ID Run) Motor Inductance Ld Auto Tune
99.13 (ID Run) Motor Inductance Lq Auto Tune
