8-2 Parameter Navigation and Groups MN448

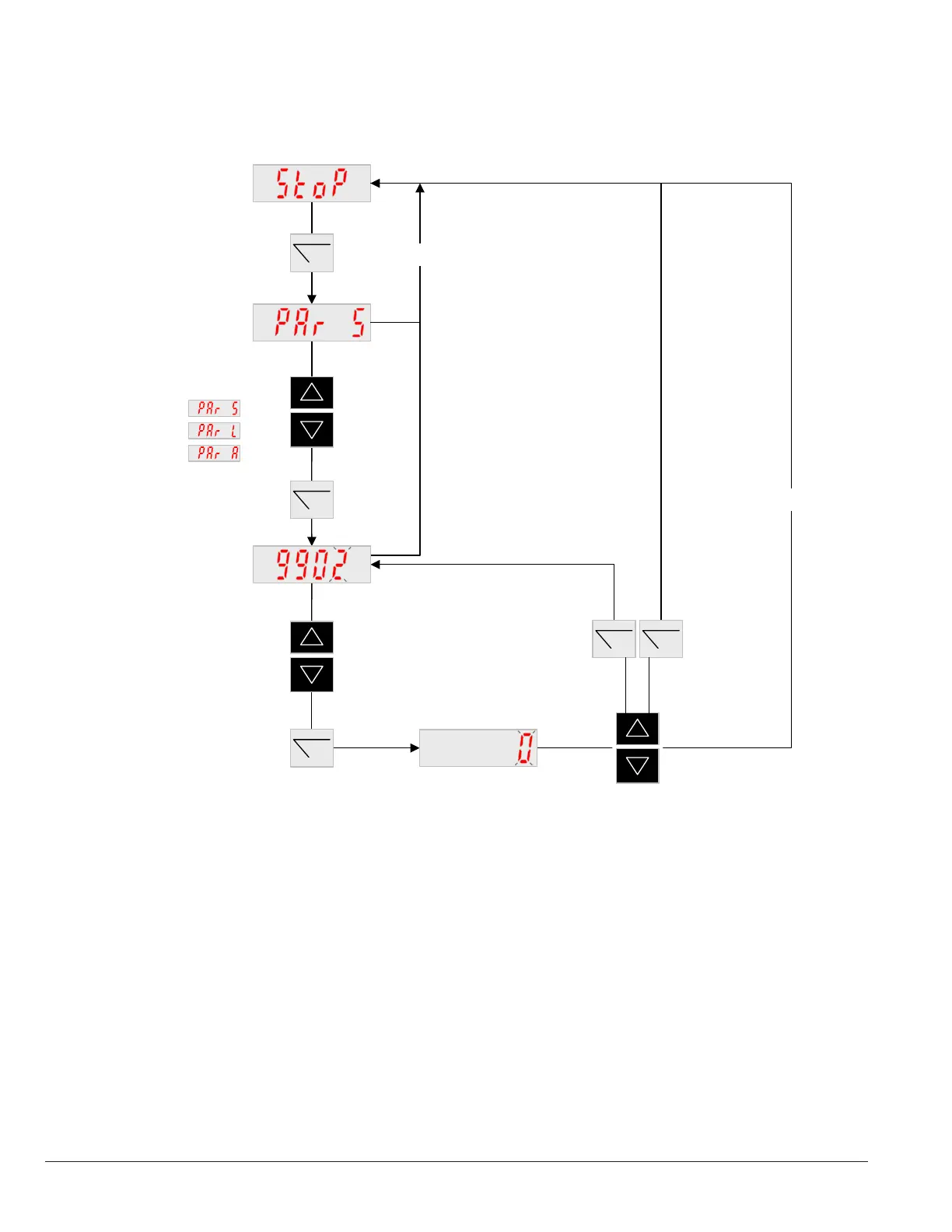

Figure 8-1 Programming Navigation Remote Keypad
“Status Mode”
Use arrows to select
Group Parameters:
Short
Long
Advanced
“Parameter mode”
(End number flashing)
Use to select parameter
for eding
Press to enter parameter
edit mode
Timeout (60s)
Timeout (60s)
Short Press to exit “Parameter edit
mode” and save selecon
Press for >1s
to return to
status mode
and save
selecon
Press for >1s to enter
“Short/Long Parameter
group mode”
(“Parameter edit mode”)
Use to change parameter
value
