ABB IRB 1010 User Manual

NoteAction
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the
unit read the safety information in section The
unit is sensitive to ESD on page 45.
2
xx2200000012

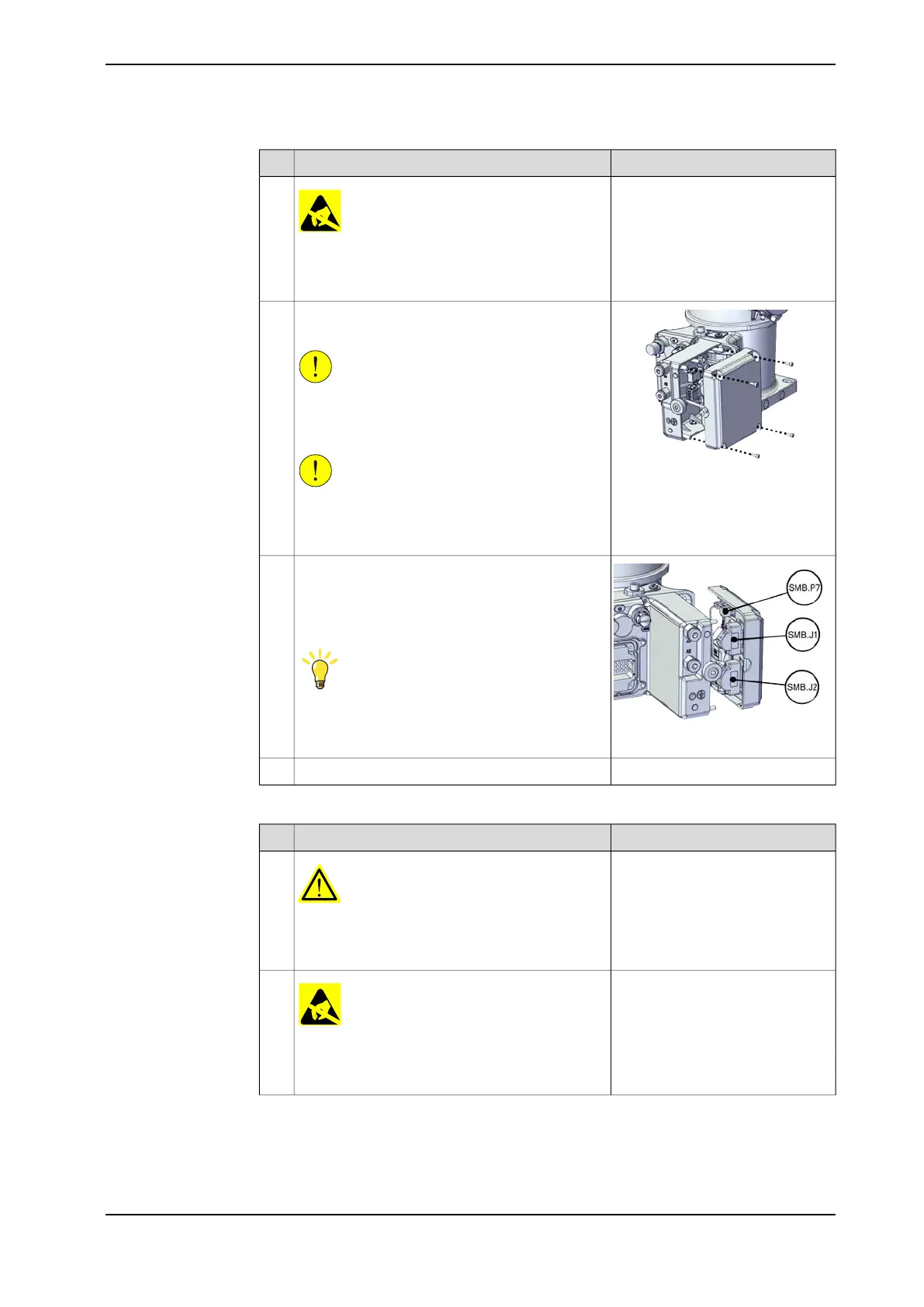

Remove the SMB cover attachment screws and
carefully open the cover.
CAUTION
Clean cover from metal residues before opening.
Metal residues can cause shortage on the boards
which can result in hazardous failures.
CAUTION
There are cabling attached to the cover. The
cover cannot be removed completely until the
connectors are removed.
3
xx2200000013
Disconnect the connectors.
• SMB.P7
• SMB.J1
• SMB.J2
Tip
Take photos of the connector and cable position
before disconnecting them, to have as a reference
when reconnecting.
4
Remove the SMB cover completely from the base.5
Removing the battery pack
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the
unit read the safety information in section The
unit is sensitive to ESD on page 45.
2
Continues on next page
Product manual - IRB 1010 99
3HAC081964-001 Revision: B
© Copyright 2022 ABB. All rights reserved.
4 Maintenance
4.6.1 Replacing the battery pack
Continued
