Calibration Repairs
48 Product Manual IRB 640

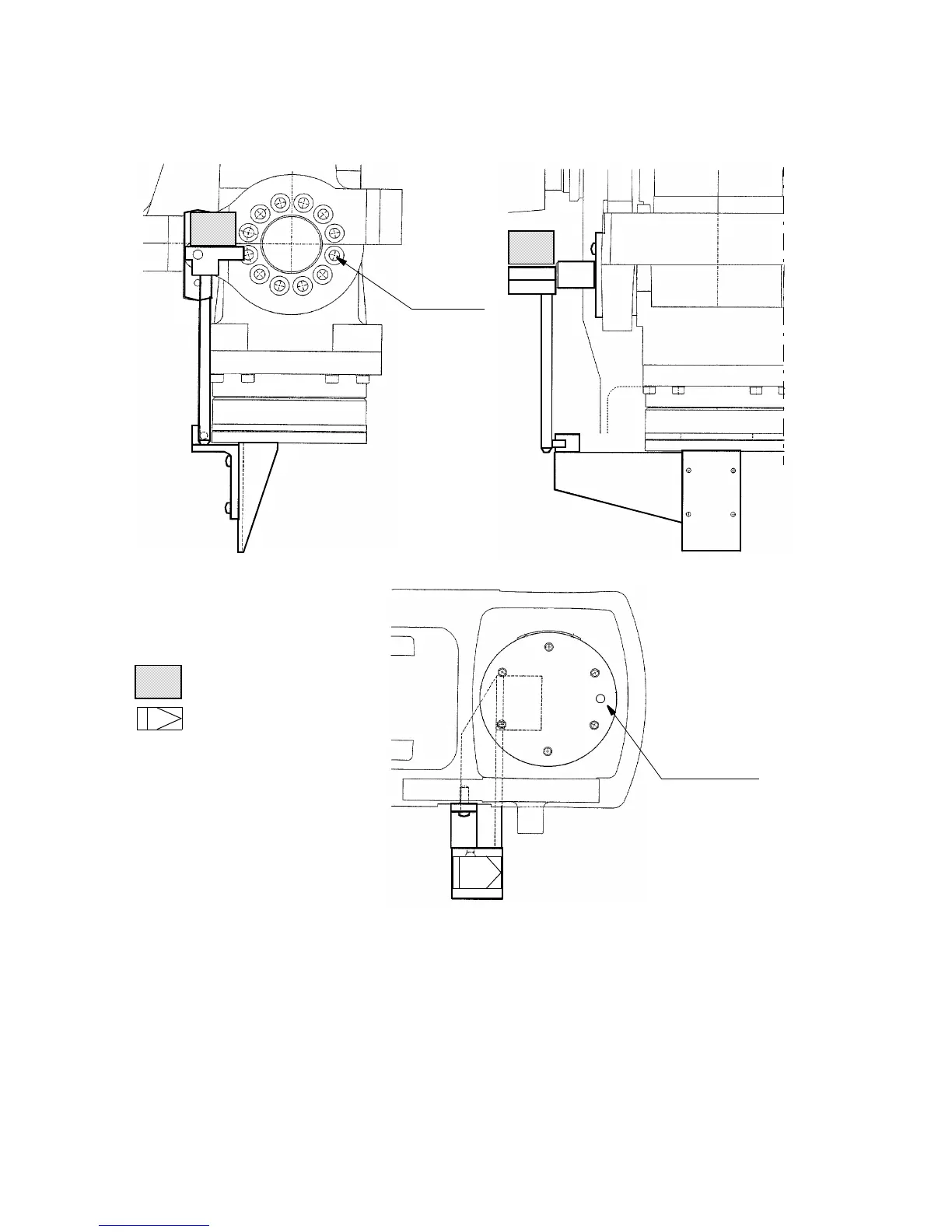

Figure 12 Mounting of sync fixture 3HAC 1904-1.
13. Press the enabling device and operate the joystick manually in the directions shown
in the figure on the previous page, until the digital levelling gauge indicates zero.
The gauge should read 0 ±12 increments. (0.3 mm/m).
The reason why the calibration position is always adjusted in the directions shown
in the figure, is that the friction and gravity forces then work together against the
direction of the movement. In this way adjustment is simplified.
Guide hole
Front view
From above
Side view
Inclination instrument
6807 081-D
Screw
joint
