ABB LMT Series User Manual

44
LMT100 AND LMT200 | MAGNETOSTRICTIVE LEVEL TRANSMITTERS | FF OI/LMT100/200/FF-EN REV. A

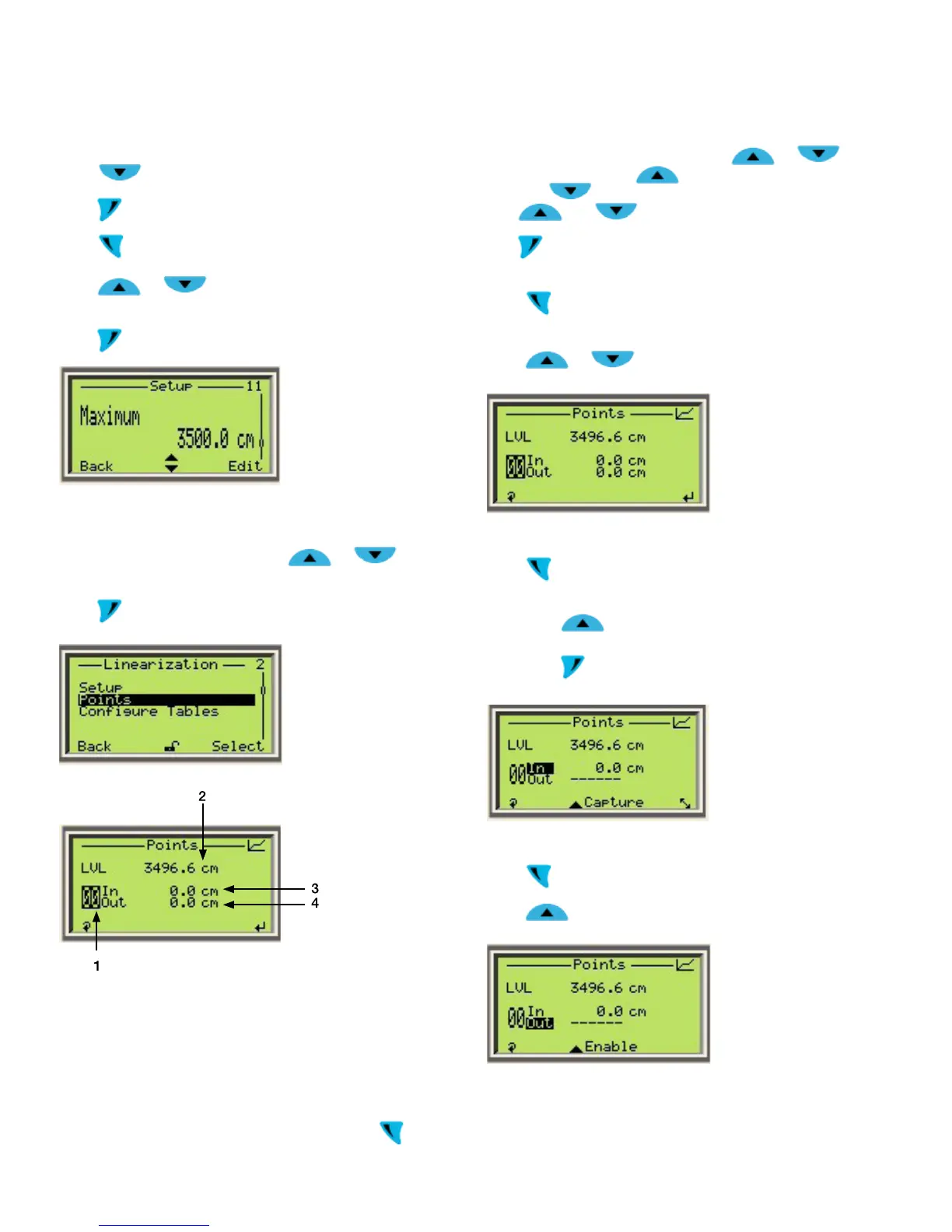

STEP 9:
Press
to navigate to the Maximum menu
Press
to edit the maximum value for the output
Press
to scroll through the digits
Press
or to change the value of the highlighted
digit
Press
to confirm the maximum value for the output
Editing Points
STEP 1:
From the Linearization menu, press
or to
navigate to the Points submenu
Press
to enter the Points submenu
IMPORTANT (NOTE)
1 Current linearization point number (00 – 20)
2 Current value of the measured level
3 Input Value for the currently selected point
4 Output Value for the currently selected point
• The scroll function, accessed by pressing the
key,
allows navigation between the point number “00”, the
Input Value <In>, and the Output Value <Out>.
• To change between points, press
or . When
at point “00”, only
can be used, when at point “20”
only
can be used, and for any other points both
and can be used.
• To edit the input or output value of the points, press the
key when <In> or <Out> is highlighted respectively
STEP 2:
Press
to scroll to the point number, if it is not already
highlighted
Press
or to change to other points
STEP 3:
Press
to scroll to the Input value <In>
There are two methods to edit:
a Press
to capture the current level value (LVL) and
assign it to the input value of this point
b Press
to manually enter the value
STEP 4:
Press
to scroll to the Output value <Out>
Press
to enable the point
