AUTOMATIC CONTROL UNIT, OMD800
AUTOMATIC CONTROL UNIT, OMD800
Password Authentication
KA00257
0000
Back EditForward
System Configuration
Rated Voltage
Rated Frequency
Number of Phases LN1
1/13
KA00258
System Configuration
Number of Phases LN2
Ext Voltage Transformer
Ext VT Primary Voltage
6/13
A07124
7.2.2.3 System Configuration
In the System Configuration subpage user can configure parameters of the monitored lines; see Table
7.3. The parameter selection and its value changes are made by using UP, DOWN and ENTER keys.
The System Configuration subpage requires a password. Password consists of 4 numbers, it is given by
UP, DOWN and ENTER keys. The default password is 0001. Please, change the default password to your
own. The password is valid one minute after leaving the password protected subpage. If the password
is forgotten or lost, please, contact product support.

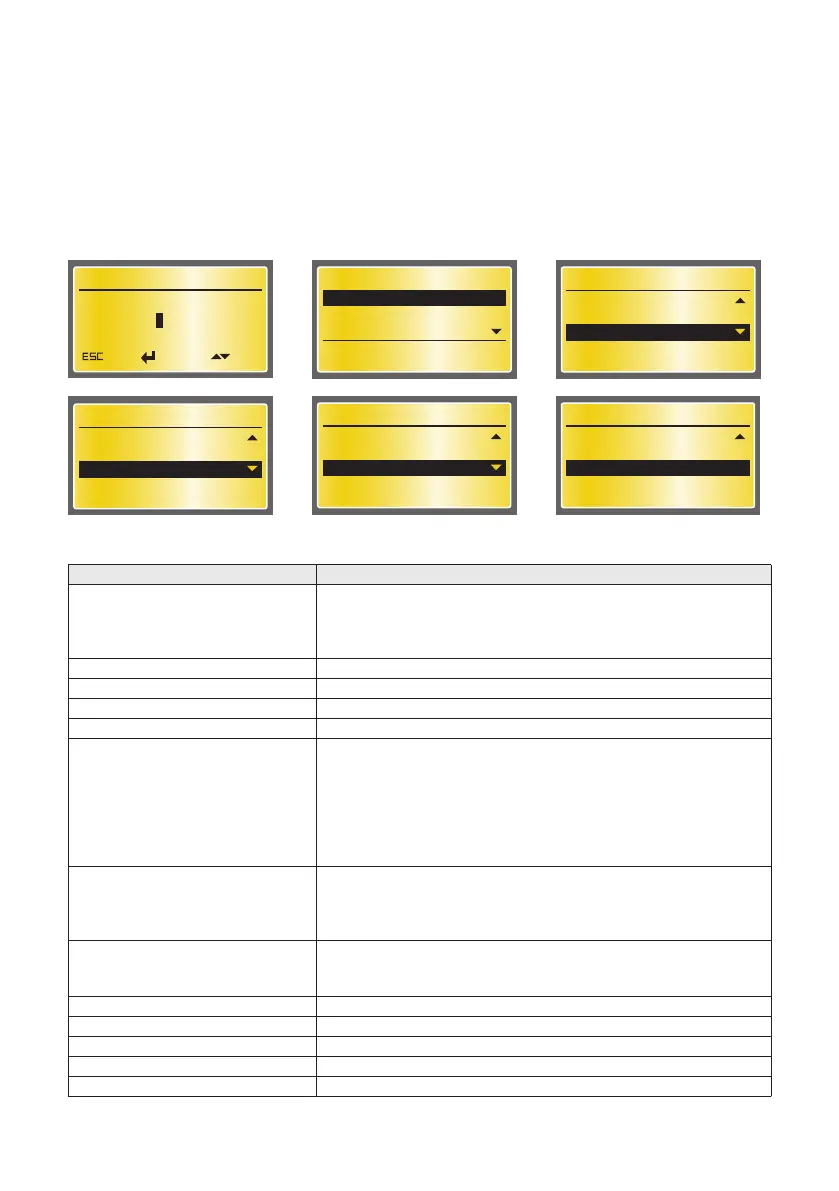

Figure 7.9 System Configuration requires a password
System Configuration
Ext VT Secondary Voltage
Secondary Load
Generator Usage
9/13
A07129
System Configuration
Line Priority
Changeover Switch Type
Manual Back Switching
12/13
A07133
System Configuration
Changeover Switch Type
Manual Back Switching
Generator Shutdown
13/13
A07135
Table 7.3 Parameters and values of the System Configuration
Parameter Values
Rated Voltage 100/57 V - 115/66 V - 120/70 V - 208/120 V - 220/127 V -
230/132 V -
240/138 V - 277/160 V - 347/200 V - 380/220 V - 400/230 V -
415/240 V - 440/254 V - 480/277 V
Rated Frequency 50 Hz and 60 Hz
Number of Phases LN1 3 phases with N / 3 phases without N / 1 phase
Number of Phases LN2 3 phases with N / 3 phases without N / 1 phase
Ext. Voltage Transformer Absent / Present
Ext. VT Primary Voltage 100/57 V - 115/66 V - 120/70 V - 208/120 V - 220/127 V -
230/132 V -
240/138 V - 277/160 V - 347/200 V - 380/220 V - 400/230 V -
415/240 V -
440/254 V - 480/277 V - 500/288 V - 550/317 V - 600/347 V -
660/380 V - 690/400 V - 910/525 V - 950/550 V - 1000/577 V -
1150/660 V
Ext. VT Secondary Voltage 100/57 V - 115/66 V - 120/70 V - 208/120 V - 220/127 V -
230/132 V -
240/138 V - 277/160 V - 347/200 V - 380/220 V - 400/230 V -
415/240 V - 440/254 V - 480/277 V
Secondary Load Not Used / Opening Only / Opening And Closing / Opening
Pulse /
Opening/Closing Pulse
Generator Usage No Generator / Generator In Use
Line Priority Line 1 – Switch I / Line 2 – Switch II / No Line Priority
Changeover Switch Type Automatic OTM_C_D / Motorized OTM_C
Manual Back Switching Off / On
Generator Shutdown Off / On
