PGC5007
PGC5007 Operating Instructions 8 Replacement parts
38 OI/PGC5007-EN, Rev C
8 Replacement parts
8.1 Ordering information
The replacement parts listed in this section are specific to the PGC5007. For all other replacement parts in the analyzer, you
must refer to the Recommended Spare Parts Lists in the Data Package.
Since the component parts specific to any given system are defined by the particular application, you
should refer to the “Recommended Spare Parts Lists” in the Data Package supplied with the analyzer, to
obtain the full and correct part number for the desired part or assembly.
8.2 Equipment identification
Include the following information, found in the Data Package and on the analyzer nameplate, in any communication concerning
replacement parts or components:
• ABB Sales Order Number.
• Analyzer Model Number.
• Analyzer Part Number (P/N) and serial number.
• Serial number and part number (including dash number and revision letter) for serial numbered subassemblies such as
printed circuit boards.
• Applicable references from the “Recommended Spare Parts List” of the Data Package, included with each analyzer.
• Description of part.
8.3 How to order
Please contact your local ABB sales or service representative for specific instructions on ordering parts. Always include the
information listed in Equipment Identification and Configuration Identification in your request.
8.4 Replacement parts listing (see Figure 8.1)
Description Name Part Number
Furnace Replacement Kit Kit, 796 Furnace Replacement 868K002-1
Furnace Tube Kit Kit, Furnace Tube 868K003-1
Thermocouple Kit Kit, Thermocouple Replacement 807K005-1
Liquid Sample Valve Valve Assembly Liquid Sample High Heat 791A024-_
LSV Seals Seal, Liquid Sample Valve, 0.062 i.d. 791M028B-_
LSV Stems Stem, sample assembly 791A009B-_
Ceramic Connector Connector, Ceramic 3617509-1
Low-Sodium Lubricant Lubricant, Low-Sodium 3617948-1
Furnace
Thermocouple
Liquid
Sample Valve
Entry
LIQUID VERSION
VAPOR VERSION
Ceramic
Connectors

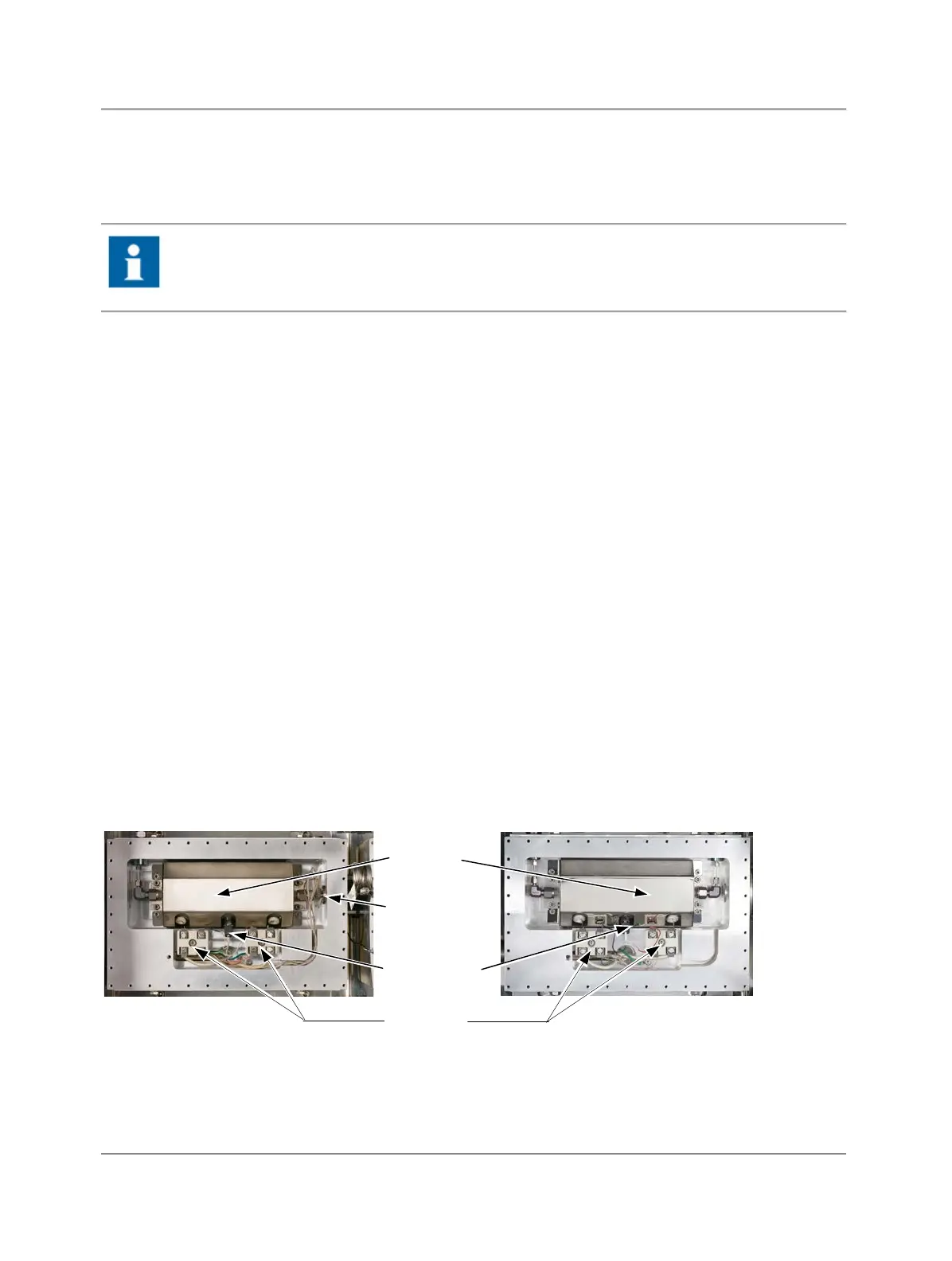

Fig. 8.1. Oven Compartment
