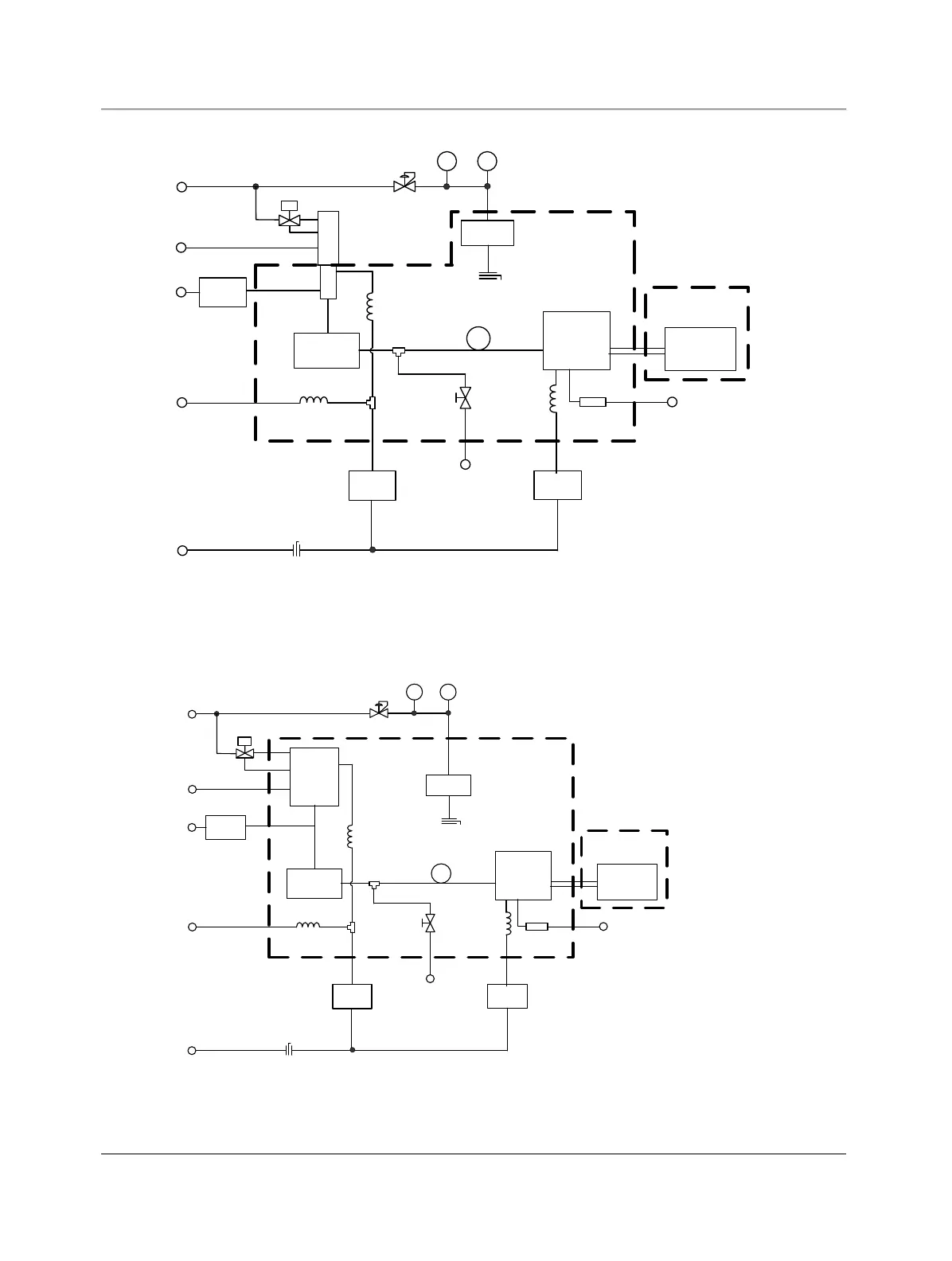

When you are matching column flows, refer to the Data Package for flow rates and valve configurations. Figure 3.2 illustrates a
typical flow diagram for the liquid version of the PGC5007.
CARRIER
SUPPLY
NO. 1
SV
P
A
B
HEATER
AIR ADJ
SAMPLE
VALVE
PI
HEATER
SPLITTER
VENT
FURNACE
BURNER
BLOCK
COLUMN
NO. 2
COLUMN
PRESSURE
ADJ
DETECTOR
PMT
HOUSING
FPD
ENCLOSURE
ISOTHERMAL
OVEN
CELL VENT
NO. 1
COLUMN
PRESSURE
ADJ
SUPPLY
AIR
CAPILLARY
TUBING
EPC
ZONE
1
H2
RESTRICTION
ORIFICE
FLAME
ARRESTOR
CAPILLARY
TUBING
CAPILLARY
TUBING
RELIEF
VENT
SPLITTER
VENT
ADJ
EPC
ZONE
2
EPC
ZONE 3
H2
ADJ
PS
H
2 SUPPLY
SAMPLE
INPUT
Fig. 3.2. Liquid Version Flow Diagram
Figure 3.3 illustrates a typical flow diagram for the standard vapor version.
CARRIER
SUPPLY
NO. 1
SV
P
A
B
HEATER
AIR ADJ
VAPOR
SAMPLE
VALVE
PI
HEATER
SPLITTER
VENT
FURNACE
BURNER
BLOCK
COLUMN
NO. 2
COLUMN
PRESSURE
ADJ
DETECTOR
PMT
HOUSING
FPD
ENCLOSURE
ISOTHERMAL
OVEN
CELL VENT
NO. 1
COLUMN
PRESSURE
ADJ
SUPPLY
AIR
CAPILLARY
TUBING
EPC
ZONE 1
H2 RESTRICTION
ORIFICE
FLAME
ARRESTOR
CAPILLARY
TUBING
CAPILLARY
TUBING
RELIEF
VENT
SPLITTER
VENT
ADJ
EPC
ZONE 2
EPC
ZONE 3
H2
ADJ
PS
H2 SUPPLY
SAMPLE
INPUT
Fig. 3.3. Standard Vapor Version Flow Diagram
