ABB REF542plus - Page 31

31
A051347

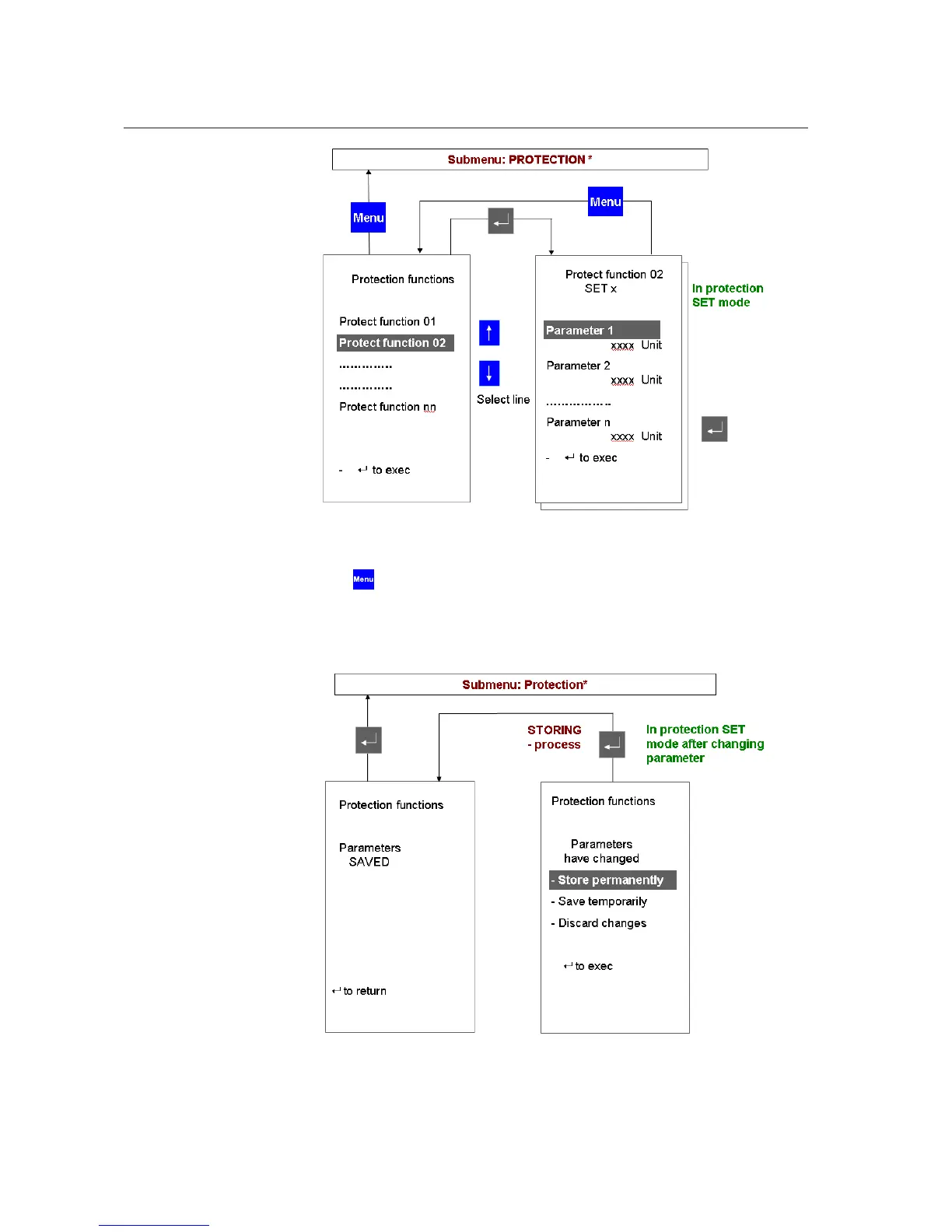

Fig. 10.2.2.-1 Changing protection parameters
Press again to leave the protection functions menu. The unit will then ask
what to do with the changes:
The following screen will appear:
A051348
Fig. 10.2.2.-2 Unit right screen after protection parameters modification
1MRS755869
Multifunction Protection and Switchgear Control
Unit
Operator's manual
REF542plus
